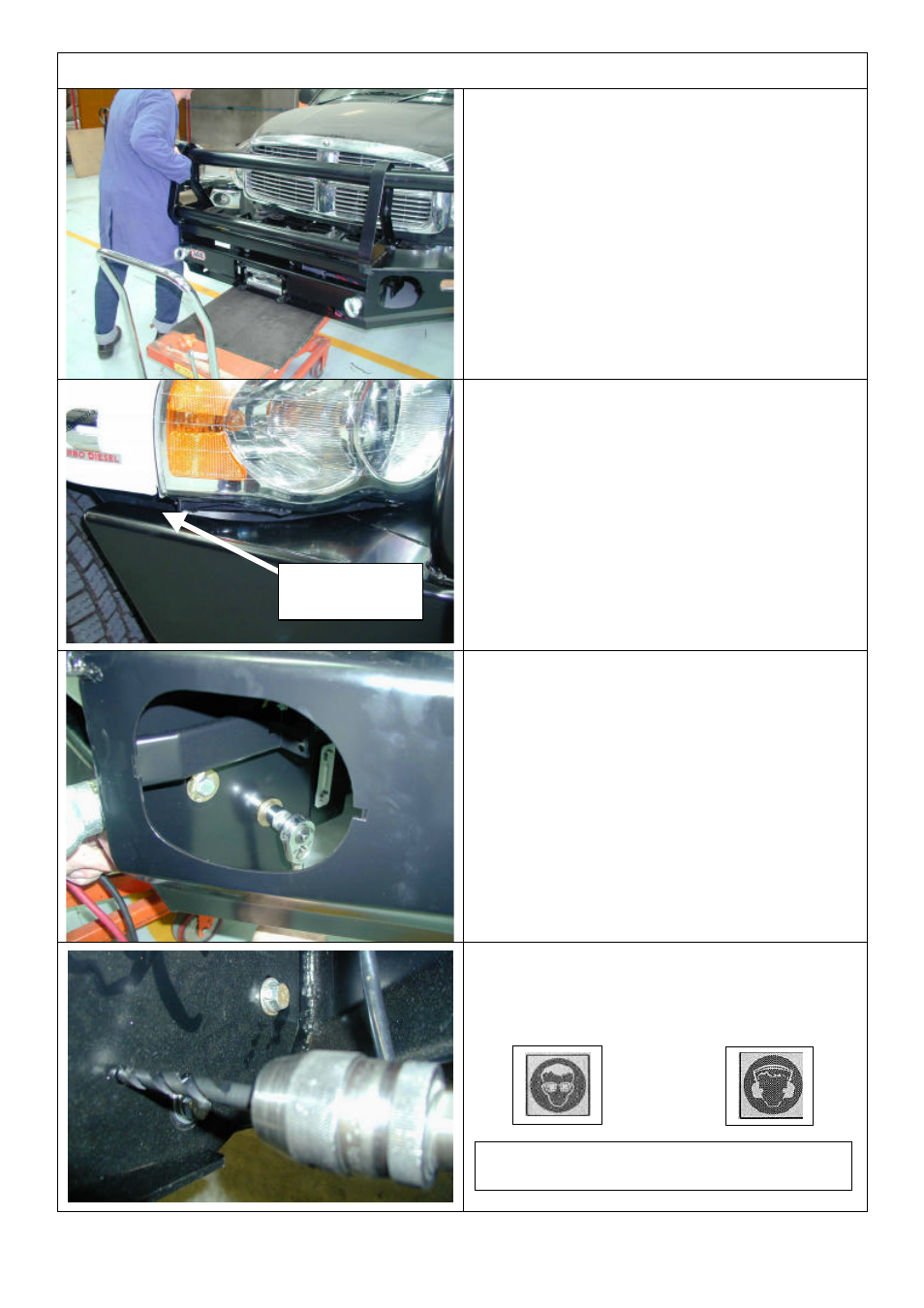

FITTING PROCEDURE BAR ON VEHICLE
40. Using two people, three if winch fitted,
position the bar assembly on the vehicle
mounts.
Caution: This product is heavy, especially if a
winch is fitted. Do not attempt to lift it and fit it
by yourself. Have some assistants help you or
use a mechanical aid such as this hydraulic lift
table as shown.
40. Bolt the bar to the mounts using M12 bolts,
large flat washers and spring washers. Bolt
the bar to the mounts using M12 bolts, large
flat washers and spring washers. Align the
bar to the profile of the guards, grille and light
profile and tighten all bolts.
41. When bar is aligned, tighten bolts.
42. Using the M10 pilot holes in mount brackets,
drill pinning hole through uprights on bull bar.
Fit M10 screw, washer set and flange nut and
do up tight.
Warning: Drilling operations can result in flying
metal debris, safety glasses should be worn.
20-25mm (3/4 to
1”) gap
