FITTING PROCEDURE WINCH

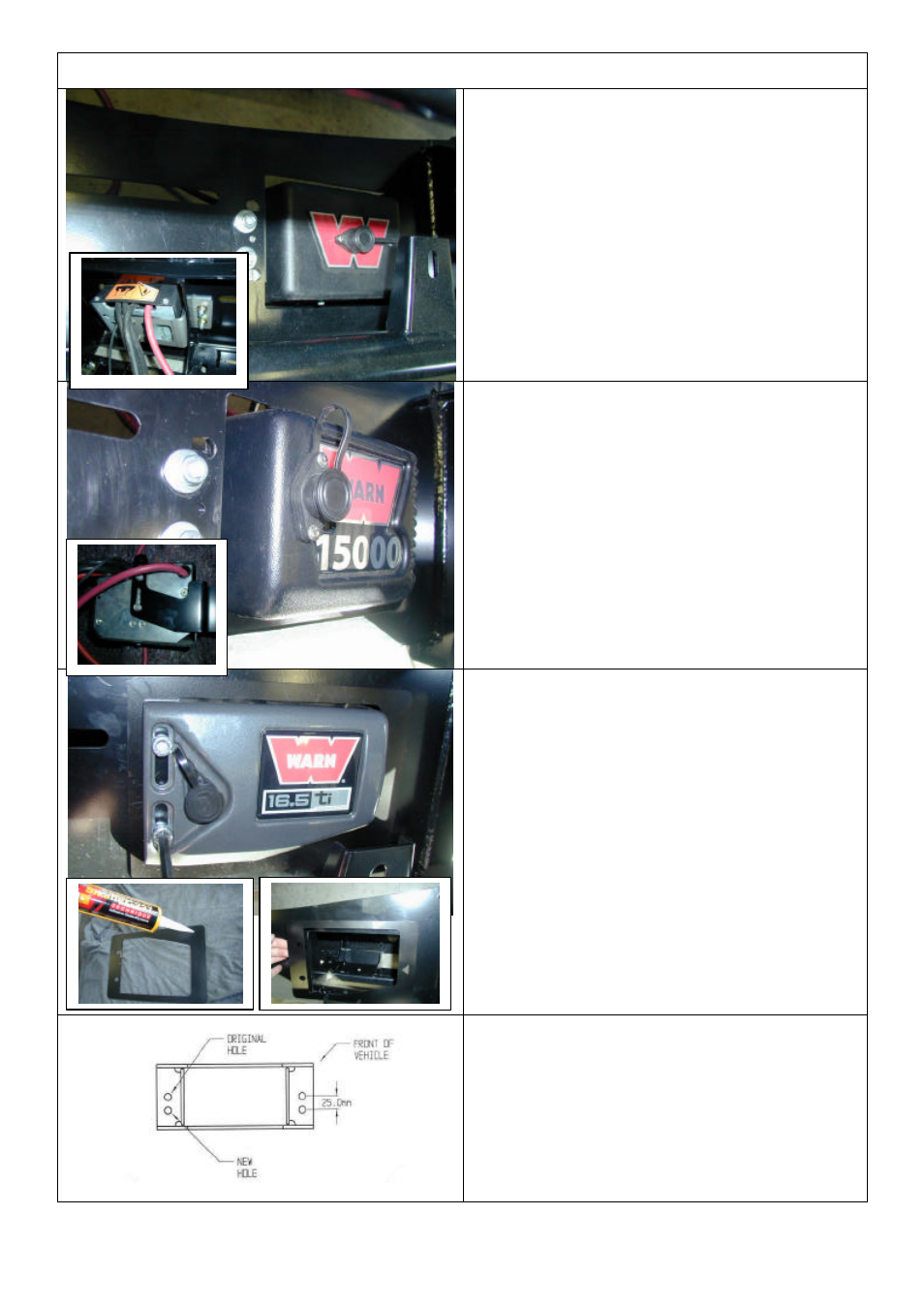

Fit control box to pan:
•
For 9500-12000lb winches, use universal
control box bracket supplied, attaching to
rear of control box mount studs.
•
Slide bracket flange under pan and align
with mount slots.
27. Fasten in position with 2 x M10 cap screws,
black washers and flange nuts
•
For 15000lb winches, use Warn supplied
control box bracket, attaching to rear of
control box mount studs.
•
Slide bracket flange under pan and align
with mount slots.
28. Fasten in position with 2 x M10 cap screws,
black washers and flange nuts.
•
For 16500lb winches, apply Sikaflex (or
similar product) to rear of control box trim
plate from fitting kit (note orientation critical
to suit final position with control box profile
in pan opening).
•
Position trim plate on top of pan centrally
about control box opening and line up with
mount slots.
29. Fasten in position with 2 x M10 cap screws
and flange nuts from fitting kit.
30. In some cases, the roller fair lead bracket
must have a second set of holes drilled to line
up with holes in winch bracket. If required,
mark out as shown and using a 13.0 mm drill
bit, drill two holes as shown in diagram.
