Last Rev Date: 19/04/06 Page 8 of 22 Fitting instructions# 3783216
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

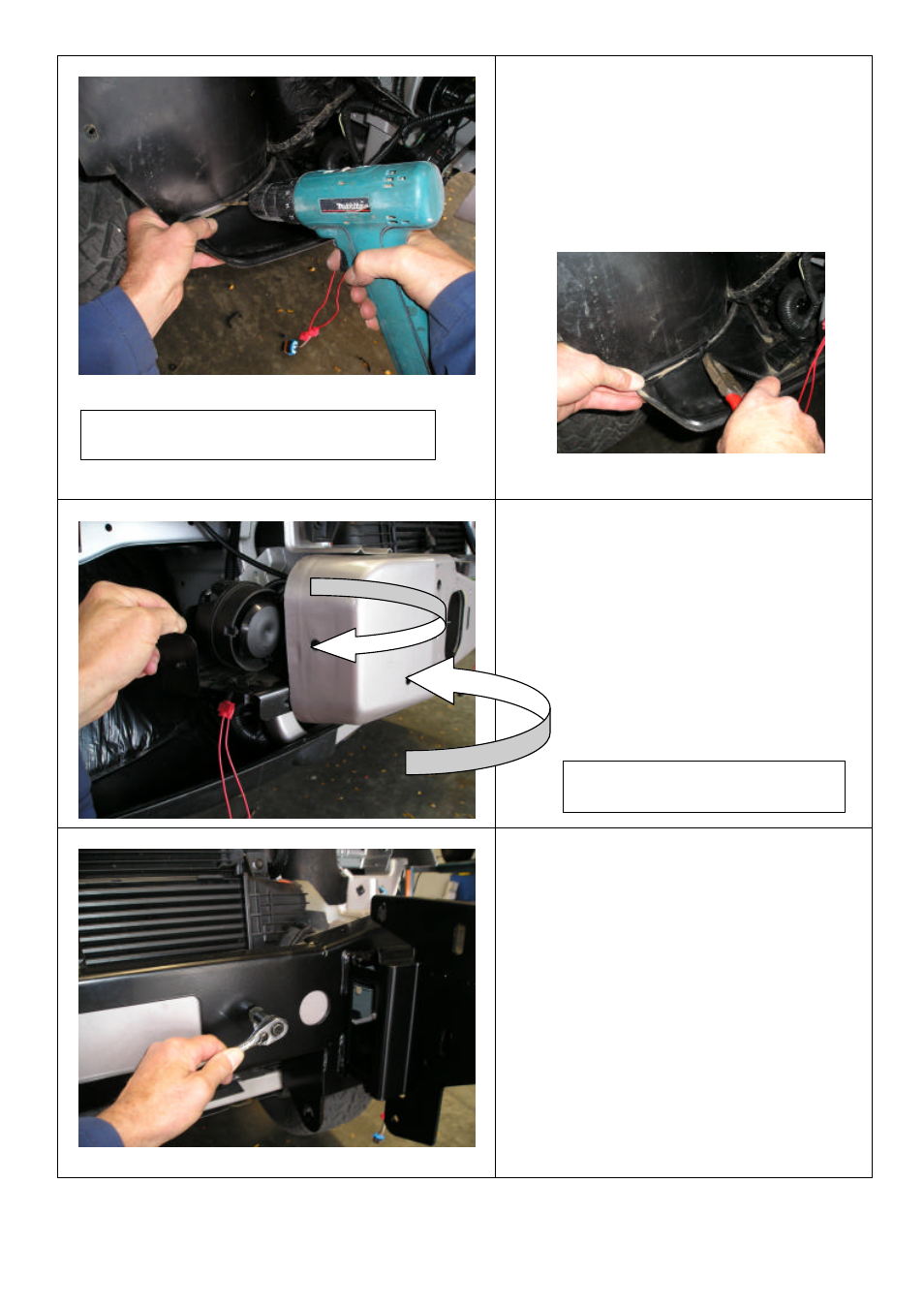

15. Using a 6mm drill bit, drill
two holes approximately 50mm
apart through the plastic inner
guard and the outer edge of the
plastic splash panel.
16. Cable tie these two panels
together
17. Remove alarm device from RHS
of crossmember by unscrewing
two 6mm bolts
18. Replace this part when chassis
mount assembly is fitted.
19. Lift chassis mount assembly onto
vehicle crossmember.
20. Using black M6mm x 20 bolt ,
spring / flat washer, secure to
vehicle as per photo.
21. Make sure mount assembly is
lifted up hard against bottom of
chassis rails, then tighten 6mm
bolts. ( These bolts are only to
position mount assembly to
vehicle.
PHOTO IS OF RHS OF VEHICLE
ARROWS INDICATE BOLTS
TO BE REMOVED
