Fitting instructions# 3783216
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

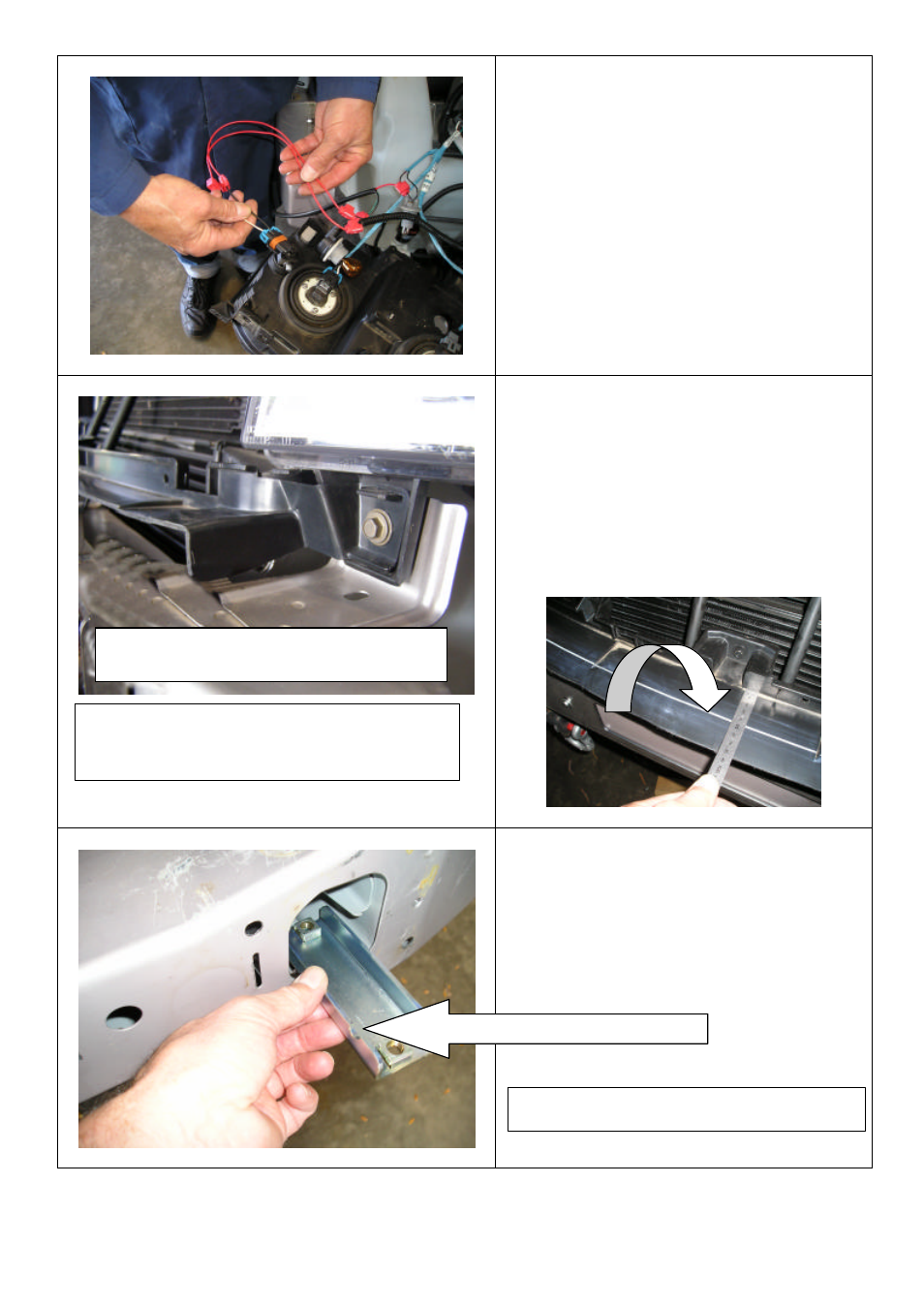

10. Scotch lock the red wire in
between the fog light loom making
sure the colour code matches.
11. When all wiring is completed.
Refit headlights back into vehicle.
12. Next step is to cut grille
retainer panel so bar can be fitted.
13. From the photo below mark
out a parallel line of 45mm and
cut off panel not required using a
jig saw or a key hole saw, then
refit back to vehicle.
14. Fit M10 caged nuts into
channel ( channels are L/RHS )
then fit channels inside of chassis
rails
PHOTO OF REFITTED PANEL OF
LEFT CORNER OF VEHICLE
Notch in channel must face inward
REFER TO PARAGRAPH 2 FOR
PANEL IDENTIFICATION
