ARB 3450130 User Manual
Page 18
Last Rev Date: 19/04/06
Page 18 of 22
Fitting instructions# 3783216
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

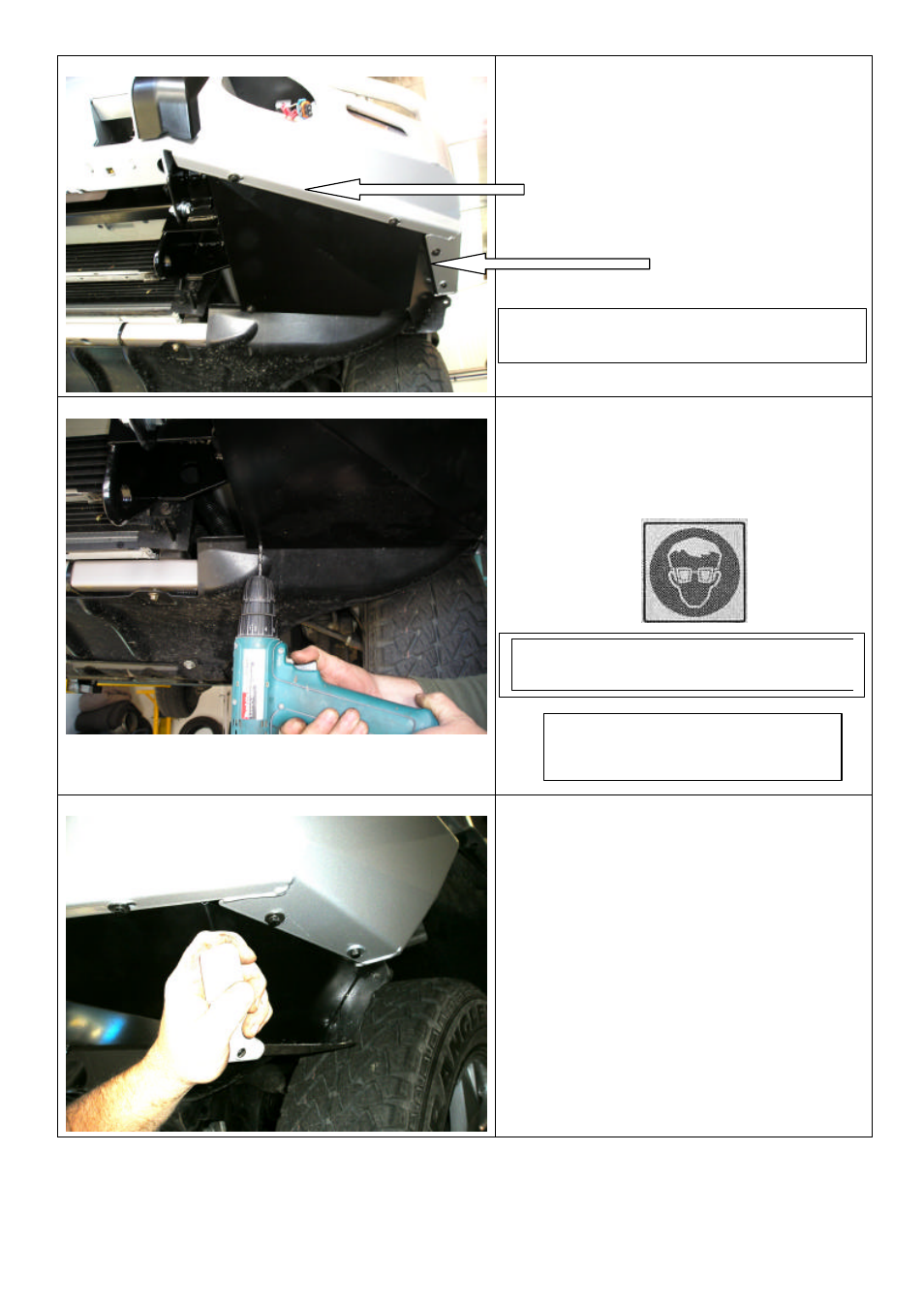

62. Fit panel on top of wing returns
and secure using 6mm hardware.
63. Drill a 6mm hole into plastic
vehicle splash pan using hole in
wing panel as a template.
64. Secure using 6mm hardware.
65. After under wing panels are
all bolted up, using a key hole saw
etc, cut off the plastic under guard
which protrudes past the panels.
66. Dress up with a file.
SEE PARAGRAPH 61 FOR
HOLE LOCATION
USE BLACK 6MM HARDWARE
Warning: Drilling operations can result in flying
metal debris, safety glasses should be worn.
