ARB 3450130 User Manual
Page 11
Last Rev Date: 19/04/06
Page 11 of 22
Fitting instructions# 3783216
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

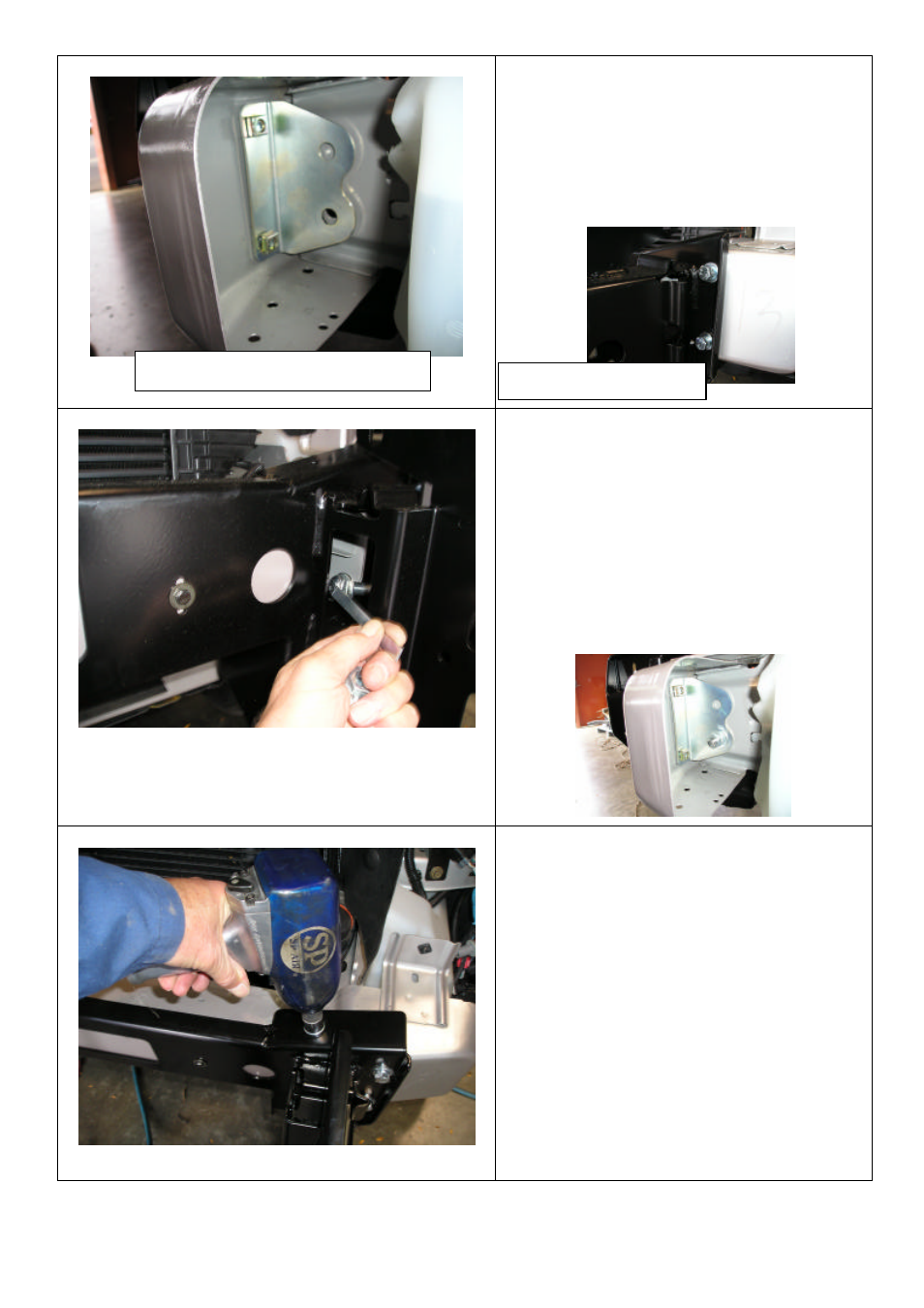

30. Fit M10 caged nuts into captive
nut plate, then align with
previously drilled front holes.
31. Secure using M10 bolts (SEMS)
finger tighten only.
32. Insert M12 Tagged bolt / flat
washer into the chassis rail and
pass through 12mm hole in
chassis rail.
33.
Fit through hole in captive nut
plate and secure with flat , spring
washer and 12mm nut.
34.
Finger tighten only
11
35. Fit a M10 bolt x 50mm (fine
thread) and a flat washer up from
inside chassis rails, through
packer and chassis mount assy
and secure with a flat, spring
washer and 10mm nut.
36. At this stage all bolts are fitted to
vehicle. Know they can all be
tightened.
LHS OF VEHICLE
VIEWED FROM LHS
