ARB 3450130 User Manual
Page 14
Last Rev Date: 19/04/06
Page 14 of 22
Fitting instructions# 3783216
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

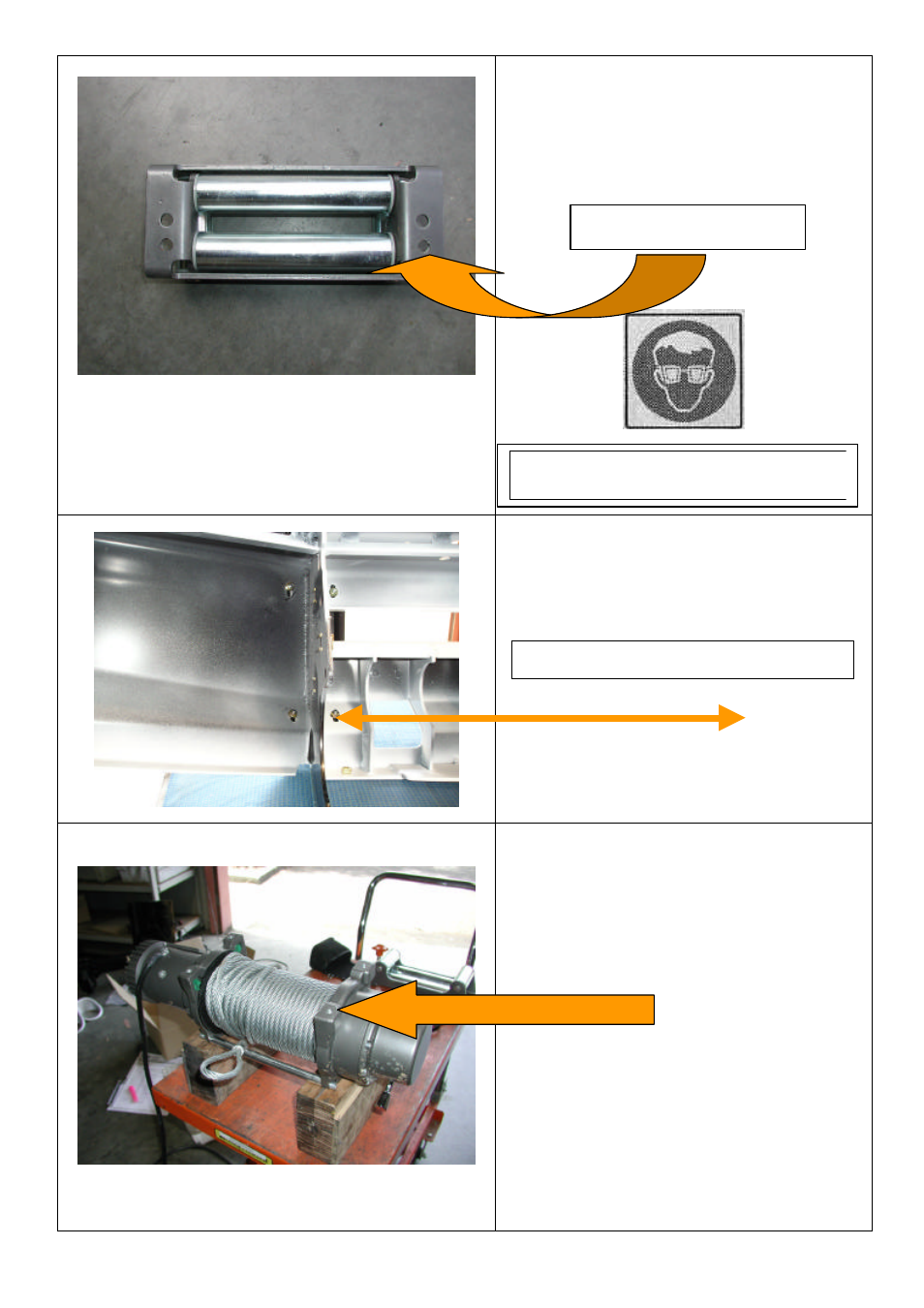

46. Drill 12mm holes under existing
holes 25mm lower down the same
pitch as existing holes, these will be
the holes used to bolt roller fairlead
to bar.
47. Fit buffers to bar using 6mm
flange nuts.
48. To fit winch into bar you must
pack winch up on a bench to enable
you to lower bar down on winch,
then fit four 3/8 ” square nuts into
winch lugs.
NEW HOLES
VIEWED FROM BEHIND BAR LHS
Warning: Drilling operations can result in flying
metal debris, safety glasses should be worn.
