ΙΙ
-10
ROTARY GEAR PUMP
ELECTRONIC FOAM PROPORTIONING SYSTEM
Section
II
: Installation

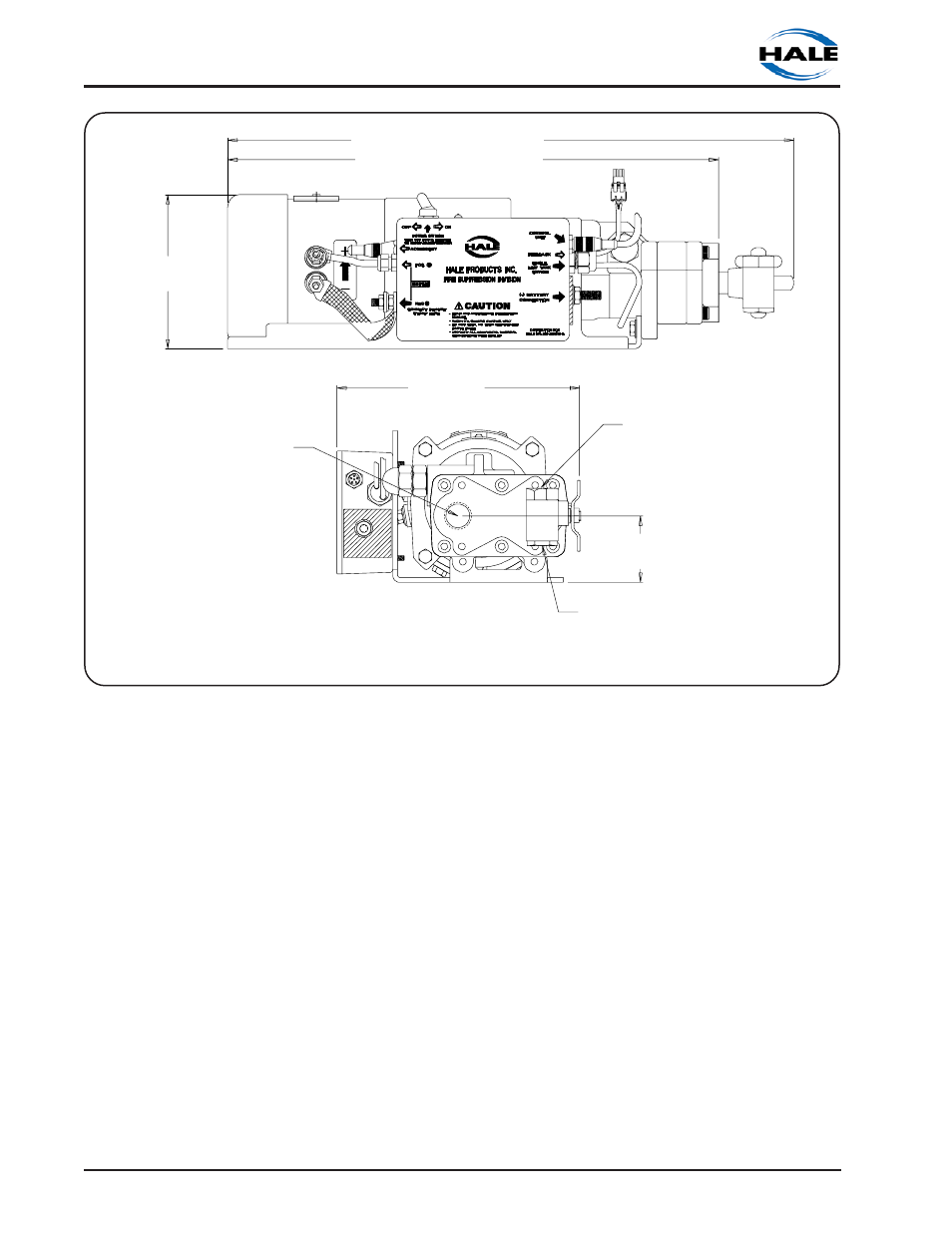

Figure 2-3. Hale FoamLogix Installation Envelope Dimensions
¾ INCH NPT SUCTION
HOSE CONNECTION
½ INCH NPT INJECT
HOSE CONNECTION
½ INCH NPT BYPASS HOSE
CONNECTION
6.02 IN.
(153 MM)
2.58 IN.
(66 MM)
MODEL 5.0: 22.00 IN. (559 MM)
MODEL 3.3: 21.75 IN. (552 MM)
MODEL 5.0: 19.07 IN. (484 MM)
MODEL 3.3: 18.82 IN. (478 MM)
9.43 IN.
(240 MM)
