Hale 5.0 FoamLogix - Manual (Page 106)

IV
-12
ROTARY GEAR PUMP
ELECTRONIC FOAM PROPORTIONING SYSTEM
Section
IV
: Operation
TANK SELECTION WITH DUAL TANK
SYSTEM
The following procedures are provided for
operation of the Hale FoamLogix system
with a Hale ADT or Hale MDT
ΙΙ
Selector
installed.
CAUTION: Unless engaged in Class B
foam operations, the Hale FoamLogix
ADT toggle switch or Hale FoamLogix
MDT
ΙΙ
selector handle must be in the
TANK A position. If the toggle switch or
selector handle is in the FLUSH position
when the Hale FoamLogix foam pump is
started the foam pump will only run for
20 seconds and shut down.
1. Make sure the Hale FoamLogix is
operating and foam solution is being
discharged.
2. Flip the Hale ADT toggle switch down or
turn the Hale FoamLogix MDT
ΙΙ
handle until
the indicator points toward the desired tank
(See figure 4-10). When changing toggle
switch or selector handle position, move
smoothly from the TANK A position through
the FLUSH position to TANK B position in one
motion without stopping. With the fire
pump discharging water and the Hale
FoamLogix operating, a small volume of
water will be provided to separate the two
foam types helping to prevent possible
reactions.
SELECTOR SHOWN
IN FLUSH POSITION
SELECTOR SHOWN IN
TANK B POSITION
SELECTOR SHOWN IN
TANK A POSITION
(NORMAL OPERATING
POSITION)
VALVE
POSITION
INDICATOR
SELECTOR
HANDLE

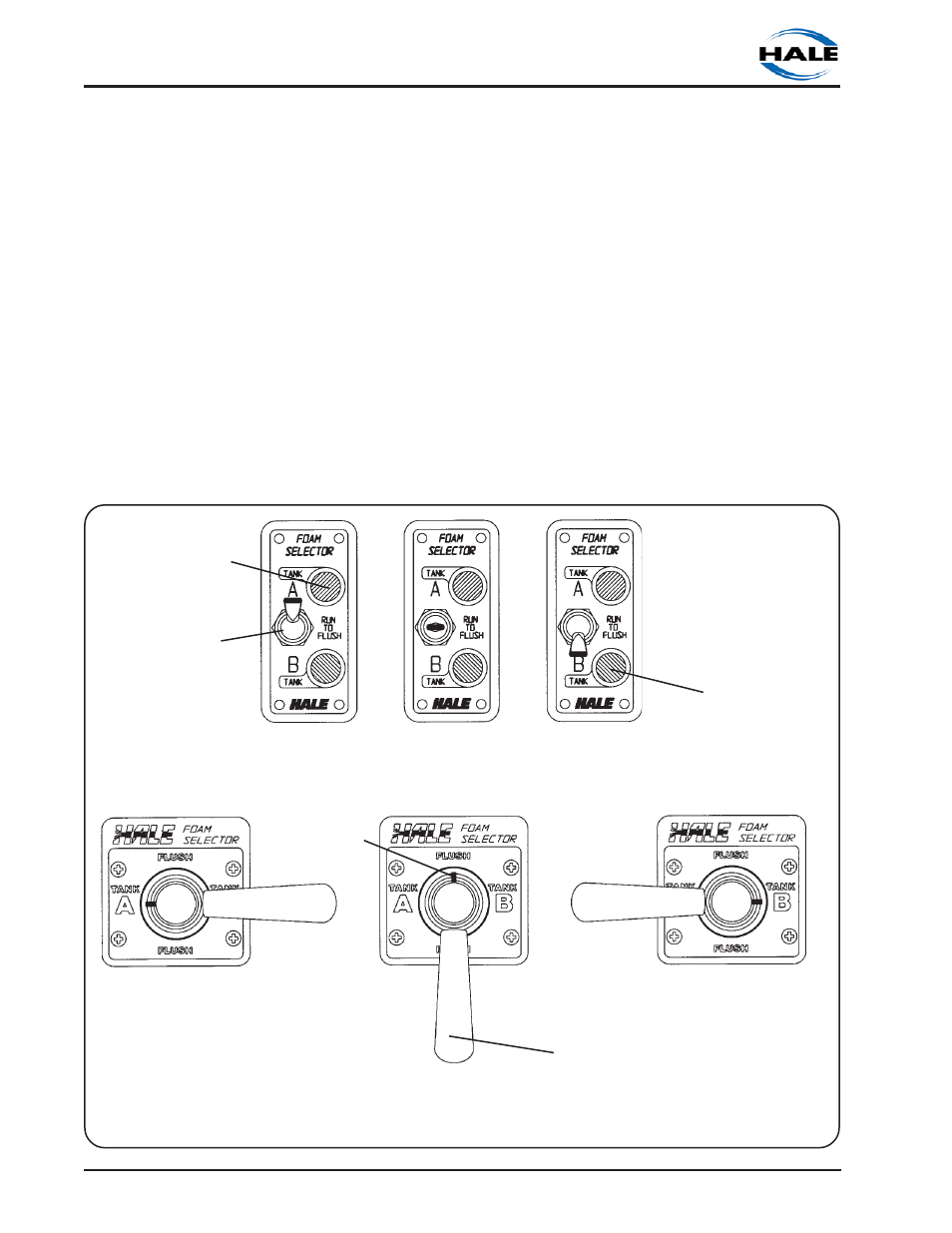

Figure 4-10. Dual Tank Selector Operating Positions
HALE FOAMLOGIX MDT
ΙΙ
TOGGLE SWITCH
SHOWN IN FLUSH
POSITION
TOGGLE SWITCH
SHOWN IN TANK B
POSITION
TOGGLE SWITCH SHOWN
IN TANK A POSITION
(NORMAL OPERATING
POSITION)
TANK A
INDICATOR
LIGHT
(GREEN)
TOGGLE
SWITCH
HALE FOAMLOGIX ADT PLACARD
TANK B
INDICATOR
LIGHT
(RED)
