ROTARY GEAR PUMP
ELECTRONIC FOAM PROPORTIONING SYSTEM
Section
IV
: Operation

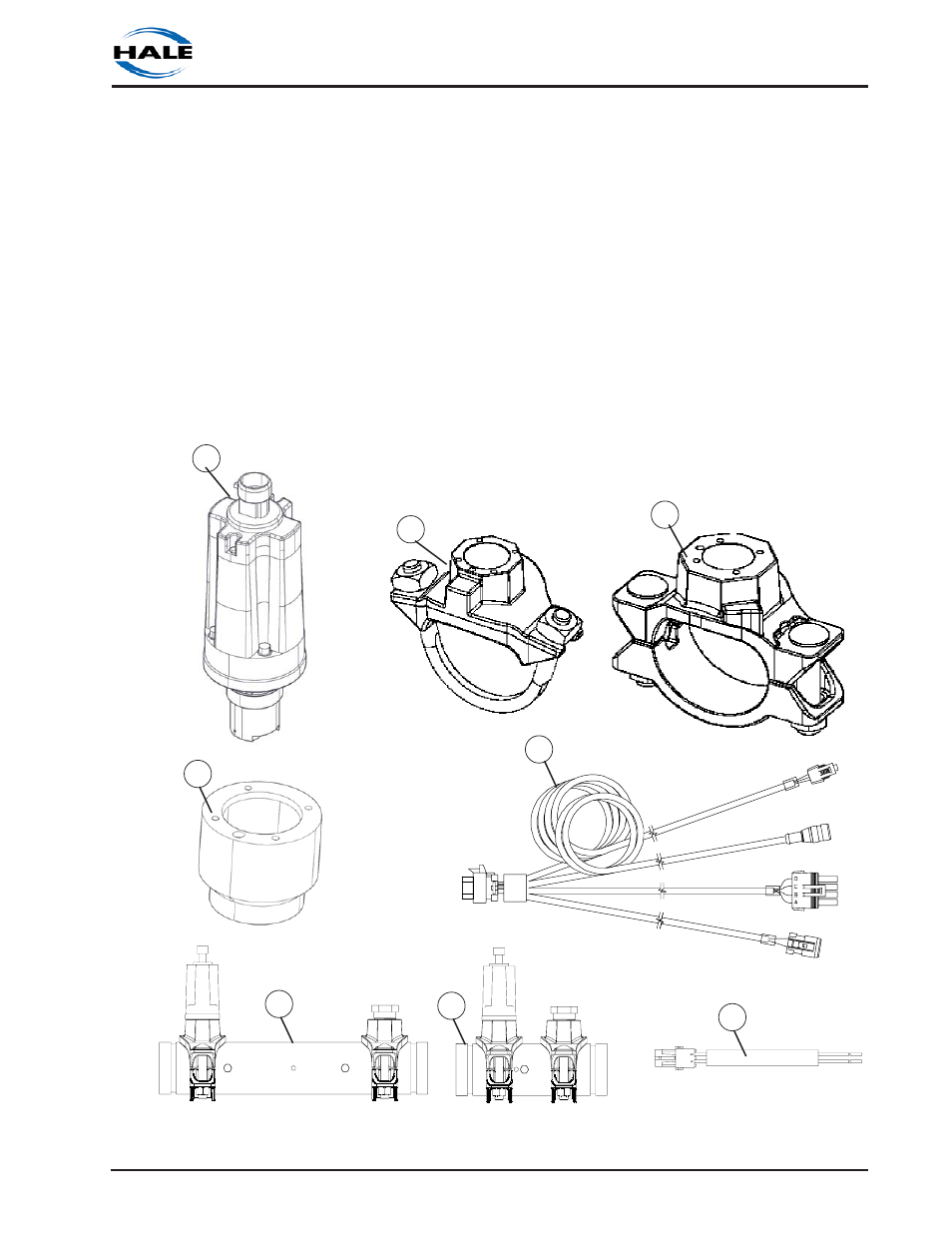

FOAMLOGIX FLOWSENSOR
1 102714 PADDLE WHEEL
2 4842010 SADDLE CLAMP (2 INCH)
4843010 SADDLE CLAMP (2-1/2 INCH)
4844010 SADDLE CLAMP (3 INCH)
4846010 SADDLE CLAMP (4 INCH)
4845010 SADDLE CLAMP (5 INCH)
3 082-3060-00-0 WELD FITTING (STAINLESS STEEL)
309020 WELD FITTING (STEEL)
309010 WELD FITTING (ALUMINIUM)
4 107400 FOAMLOGIX FLOWSENSOR CABLE 10 FT (3 M) LG 1 EA
107362 FOAMLOGIX FLOWSENSOR CABLE 20 FT (6 M) LG 1 EA
107401 FOAMLOGIX FLOWSENSOR CABLE 30 FT (9 M) LG 1 EA
5 108751 DUAL CHECK VALVE MANIFOLD ASSEMBLY 1 EA
108893 SINGLE CHECK VALVE MANIFOLD ASSEMBLY 1 EA
6 513-0270-04-0 WIRE HARNESS 1 EA
REF PART NUMBER DESCRIPTION QTY UNIT
3
2
1
2
4
5 5
DUAL CHECK VALVE MANIFOLD
SINGLE CHECK VALVE
MANIFOLD
6
