EN

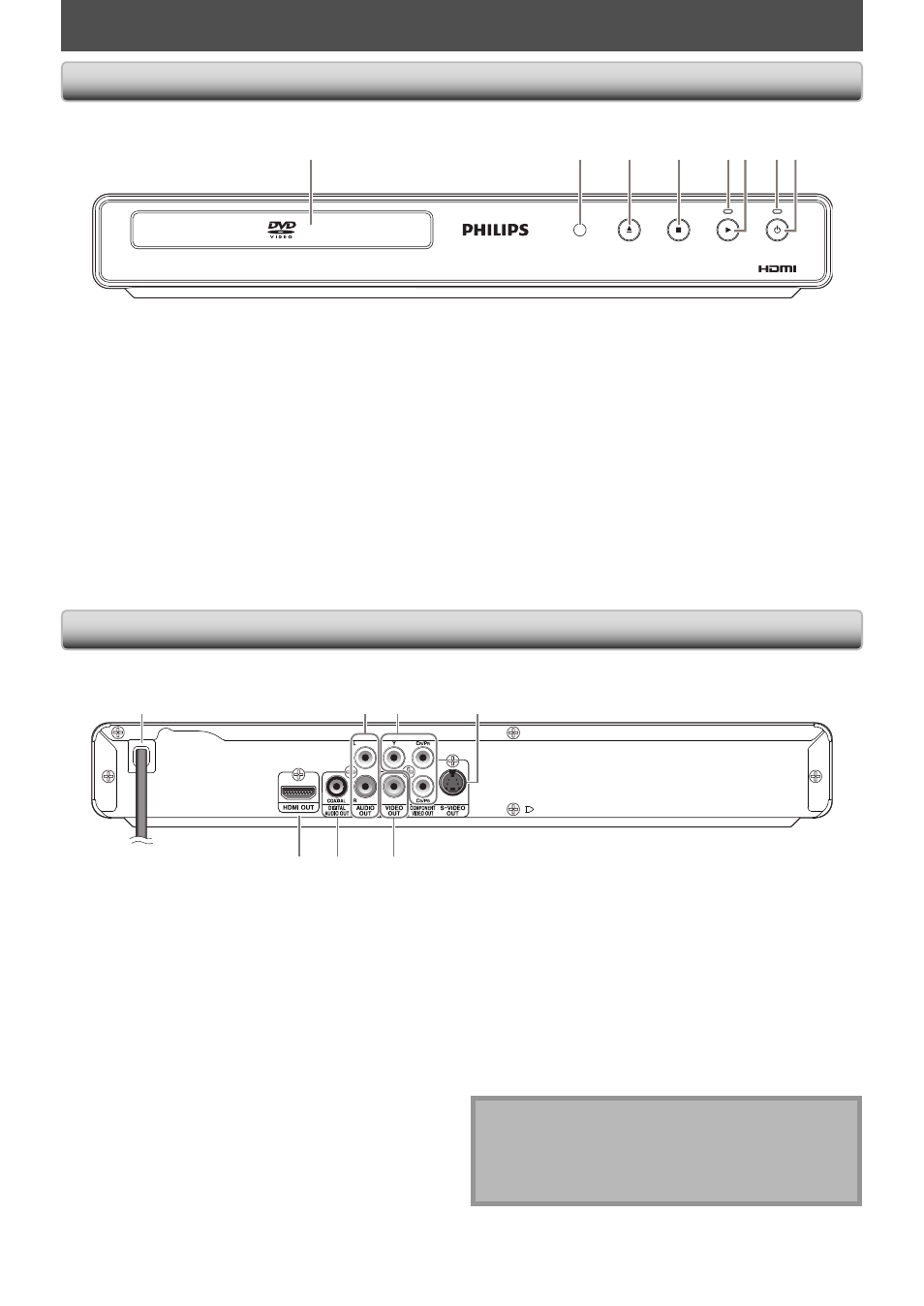

FUNCTIONAL OVERVIEW

* The unit can also be turned on by pressing these buttons.

1. Disc

tray

• Place a disc when opening the disc tray.

2. Infrared sensor window

• Receive signals from your remote control so that

you can control the unit from a distance.

3.

A (open/close) button*

• Press to open or close the disc tray.

4.

C (stop) button

• Press to stop playback.

5. Play indicator

• Lights up when the inserted disc is being played

back.

6.

B (play) button

• Press to start or resume playback.

7. Standby-On indicator

• This indicator lights up in red when the unit is in

standby mode and turns off when the power is on.

8.

y

y

(standby-on) button

• Press to turn on the unit, or to turn the unit to the

standby mode. (To completely shut down the unit,
you must unplug the AC power cord.)

• If timer programmings have been set, press to set

the unit in timer-standby mode.

DVD PLAYER DVP3570

1

4

5

7

3*

2

8

6

1. AC Power Cord

• Connect to a standard AC outlet to supply power to

this unit.

• Unplug this cord from the AC outlet to completely

shut down the unit.

2. AUDIO OUT jacks

• Use to connect a TV monitor, an AV receiver /

amplifier or other device with an audio cable.

3. COMPONENT VIDEO OUT jacks

• Use to connect a TV monitor with component video

inputs with a component video cable.

4. S-VIDEO OUT jack

• Use to connect the S-video input of a TV monitor,

AV receiver or other device with an S-video cable.

5. HDMI OUT jack

• Use to connect a TV with an HDMI compatible port

with an HDMI cable.

6. DIGITAL AUDIO OUT (COAXIAL) jack

• Use to connect an AV receiver / amplifier, Dolby

Digital decoder or other device with a digital audio
coaxial input jack with a digital audio coaxial cable.

7. VIDEO OUT jack

• Use to connect a TV monitor, an AV receiver /

amplifier or other device with a video cable.

Note

• Do not touch the inner pins of the jacks on the rear

panel. Electrostatic discharge may cause permanent
damage to the unit.

• This unit does not have the RF modulator.

3

2

1

4

5

6

7

Front Panel

Rear Panel
