CONNECTOR PANEL User Guide
16 MGP D5

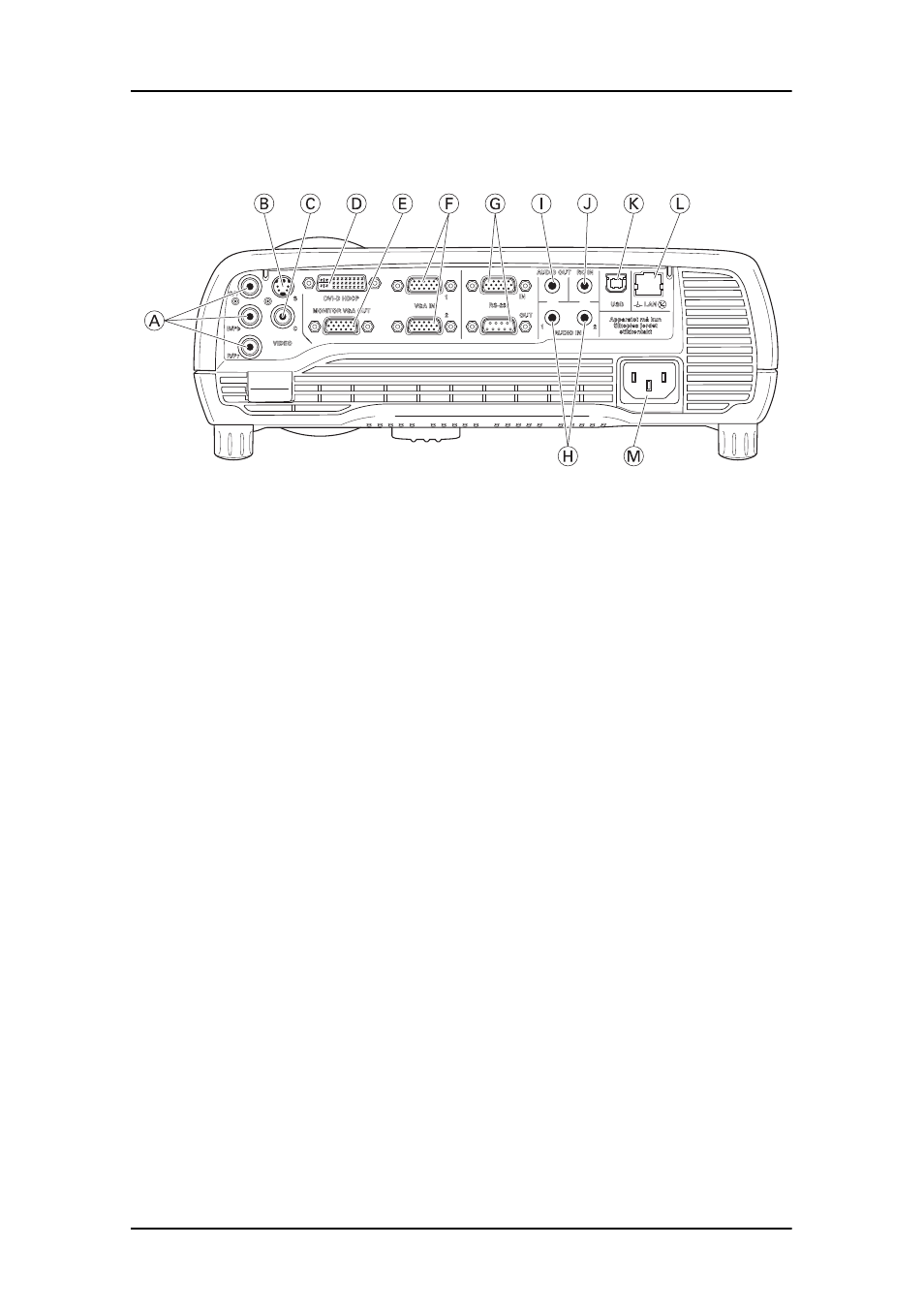

CONNECTOR PANEL
A YPbPr: Used for high quality video reproduction.
B S-VIDEO: Used for improved quality video.
C C-VIDEO: Used for standard video quality.
D DVI-D - Digital RGB: For a low noise computer and video
image.
E Monitor VGA out: Allows for connection to local VGA monitor
or daisy-chaining of several projectors using VGA. Works with
VGA inputs only.
F VGA - Analog RGB 1-2: The standard analog computer
graphics interface.
G RS 232 control in-out: Allows for wired remote control and
monitoring of many projector functions used in installation
environments. The secondary output connector allows for
daisy-chaining, enabling both individual and global control
and monitoring of multiple projectors.
H Audio in 1-2: Allows for connection of up to two audio
sources simultaneously.
I Audio out: Connection to external audio system.
J RC: Allows connection of external IR receiver or wired
remote control.
