Block Diagram

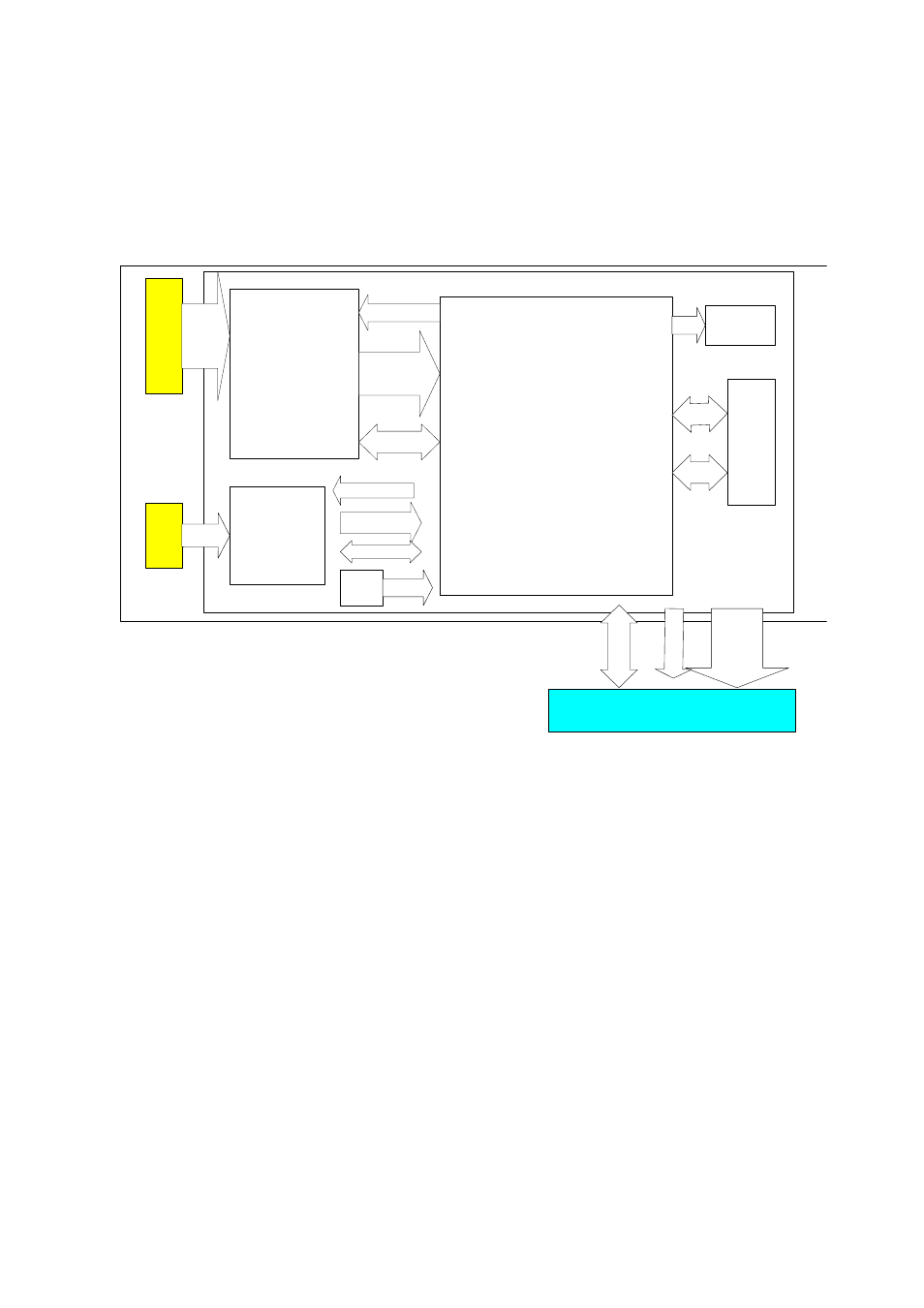

Below is the simple block diagram of PB6100 Main Board .
As the diagram shown above , here is the function of every discrete blocks .
- D_SUB input
Analog RGB data input , the standard maximum analog input resolution is SXGA .There also
some interface signals from the VGA cable , they are
ADHSYNC – Providing the Horizontal Synchronization signal to AD9883.
ADVSYNC - Providing the Vertical Synchronization signal AD9883.
DDC interface – Providing Digital Display Channel , which include VCC(Pin9) ,
SCL(Pin15) , SDA(Pin12) .
- Analog Flat Panel Interface (ADC Converter) , AD9883
The ADC converter digitizes the input analog RGB data signal from D_SUB and output the
digital data streams to Image Processor .
The normal voltage level of analog RGB input signals is about 0.7V , while the ADC digital
signal output to Image Processor is LVTTL level , about 3.3V.
The ADC , AD9883 could supports up to pixel rate at about 140MHZ , which is about SXGA
75HZ analog input signal .
