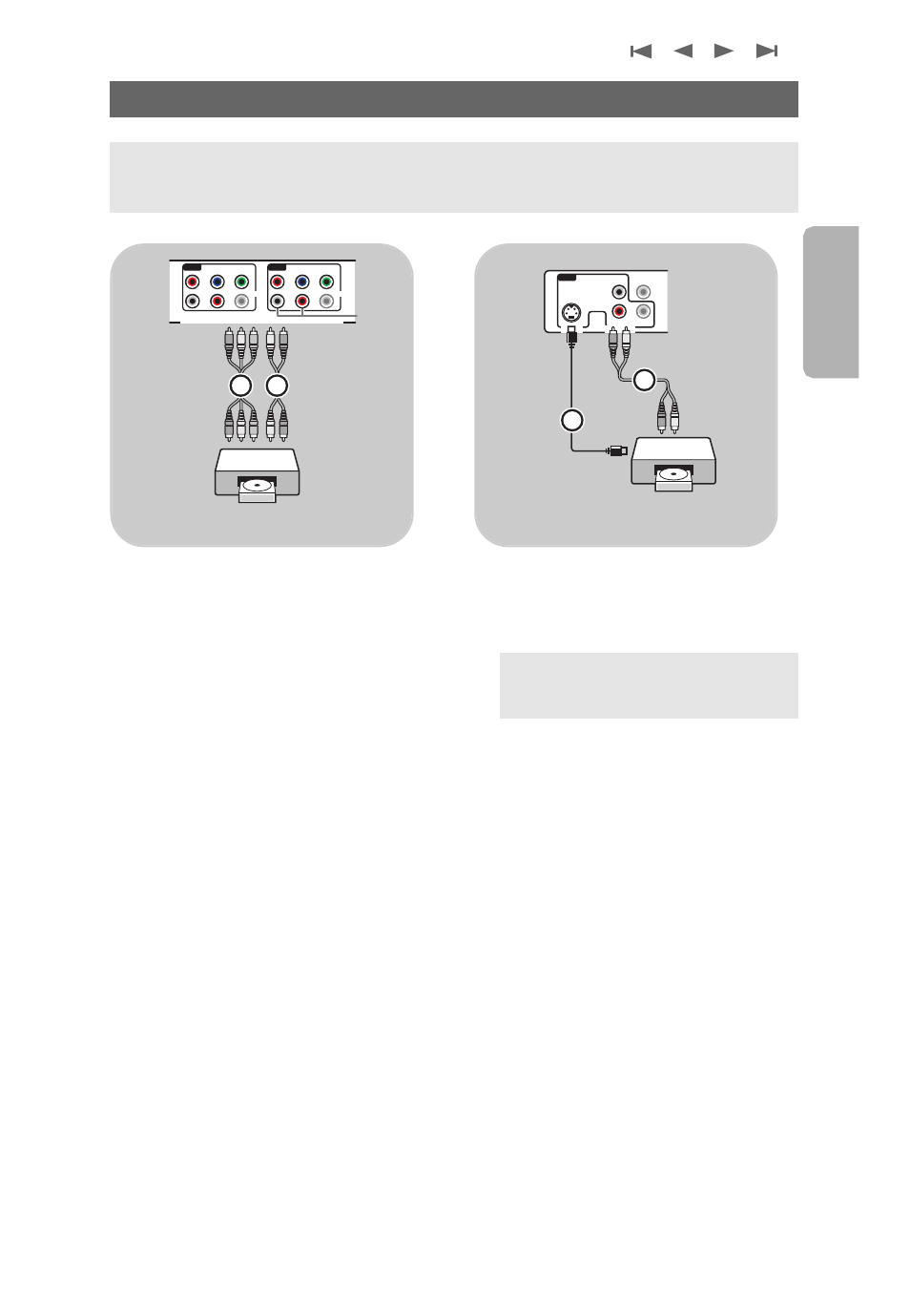

Connect a DVD Player or other accessory digital source devices
Note:This TV is capable of displaying 1080i, 720p and 480p DTV signals when connected to a DTV
tuner Set Top Box. Select the output of the Set Top Box to either 1080i, 720p or 480p. A DTV signal
must be available in your area.
Pb
Y
Pr
AUDIO
R
L
VIDEO
AV2
Pb
Y
Pr
AUDIO
R
L
VIDEO
AV1
DVD / CABLE BOX
AV1 / AV2 :
YPbPr
AV1 / AV2 :
AUDIO L / R
1
2
Devices with Component Video Output
Connectors (YPbPr)
1. Connect the three separate component
video cables 1 to the device having
component video outputs (YPbPr), such as
Set Top Boxes, DVD-players, laser-disc
players, videogame players, satellite receivers
or other equipment, and to the
Y
,
Pb
and
Pr
jacks of
AV1
or
AV2
on the TV.
2. Connect the audio cables to the device’s
AUDIO L
and
R
jacks and to the
L
and
R
audio
AV1
or
AV2
jacks 2 on the TV.
3. Select the equipment you have connected in
the Setup menu, Select your source,
p. 20 and link it to the
AV
connector you
have connected to.
L
R
VIDEO
DIGITAL
AUDIO OUT
AV3
S-VIDEO
AUDIO L / R
S-VIDEO
2
DVD / CABLE BOX
1
Devices with an S-Video connector
1. Connect an S-Video cable to the
AV3
S-VIDEO
input 1.
2. Connect the audio cables to the device’s
AUDIO L
and
R
jacks and to the
L
and
R
audio
AV3
jacks 2 on the TV.
3. Select the equipment you have connected in
the Setup menu, Select your source,
p. 20 and link it to
AV3
.
Tip:When using the
S-VIDEO
connector
do not connect any device to the
AV3
VIDEO
input.
