Page 41: User man ual
English
User Man
ual
39
Pb
Y
Pr
AUDIO
R
L
VIDEO
AV2
L
R
VIDEO
DIGITAL
AUDIO OUT
AV3
Pb
Y
Pr
AUDIO
R
L
VIDEO
AV1
S-VIDEO
ANTENNA
HDMI
For DVI-HDMI convertor cable
connect AV1 Audio L/R
75
RECORDER
OUT
IN
CABLE
OUT
IN
2
4
AV1 / AV2 / AV3 :
L + R + VIDEO
3
AV1 / AV2 / AV3 :
L + R + VIDEO
5
1

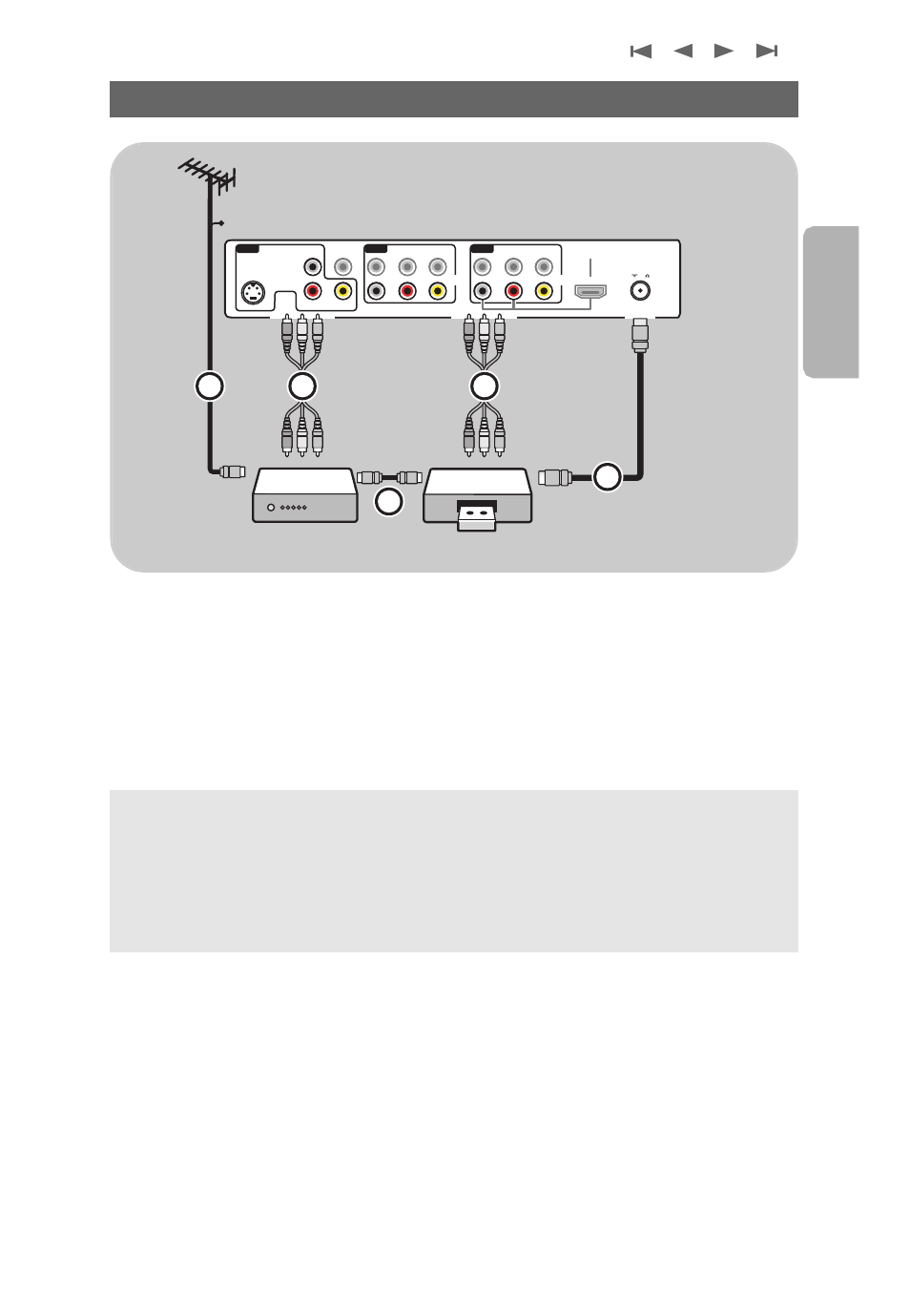

Connect a recorder and other A/V devices
1. Connect the RF antenna cable 1 of the
RF IN
socket of your other AV device.
2. Connect the RF output of the AV device to the RF input of the recorder 2.
3. Connect another RF cable 4 from the output
OUT
of your recorder to the TV’s input
CABLE/ANTENNA 75 Ω
x jack.
4. To obtain better quality, also connect the Video,Audio left and Audio right cables of both devices to
AV1,AV2
or
AV3
(
VIDEO
,
AUDIO L
and
R
,) 3 and 5.
5. Select the equipment you have connected in the Setup menu, Select your source, p. 20 and link
them to the
AV
connectors you have connected your equipment to.
Notes:
- cables are often color-coded to connectors. Connect red to red, white to white....
- if your recorder has an S-VHS video jack:
For improved picture quality, connect an S-video cable with the
S-VIDEO
input of
AV3
and connect
the audio cables to the
AUDIO L
and
R
input jacks of
AV3.
When using the
S-VIDEO
connector do not connect any device to the
AV3 VIDEO
jack;
- in case of mono equipment, only the left loudspeaker reproduces sound.
Use a mono to stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.
