22
FL AV OR
IN PU T
1
2
W AT ER
IN PU T
FL AV OR
OU TP UT
FL AV OR
OU TP UT
W AT ER
OU TP UT
W AT ER
OU TP UT
RE FIL L
MA IN
PO W ER
2
1
1
2
BUNN
®
Mov ing Par ts. Do n ot o pera te unit with this pan el re mov ed.
Ris k O f Ele ctric al S hoc k.
Disc onn ect p owe r be fore
serv icing unit .
CH AR GE
Typ e R 22, Am oun t _ _ O Z.
De sig n P res sur es: H igh _ _ L ow _ _
Su ctio n P res sur e _ _
PIPING DIAGRAM (AFPO-2)
28791 011500

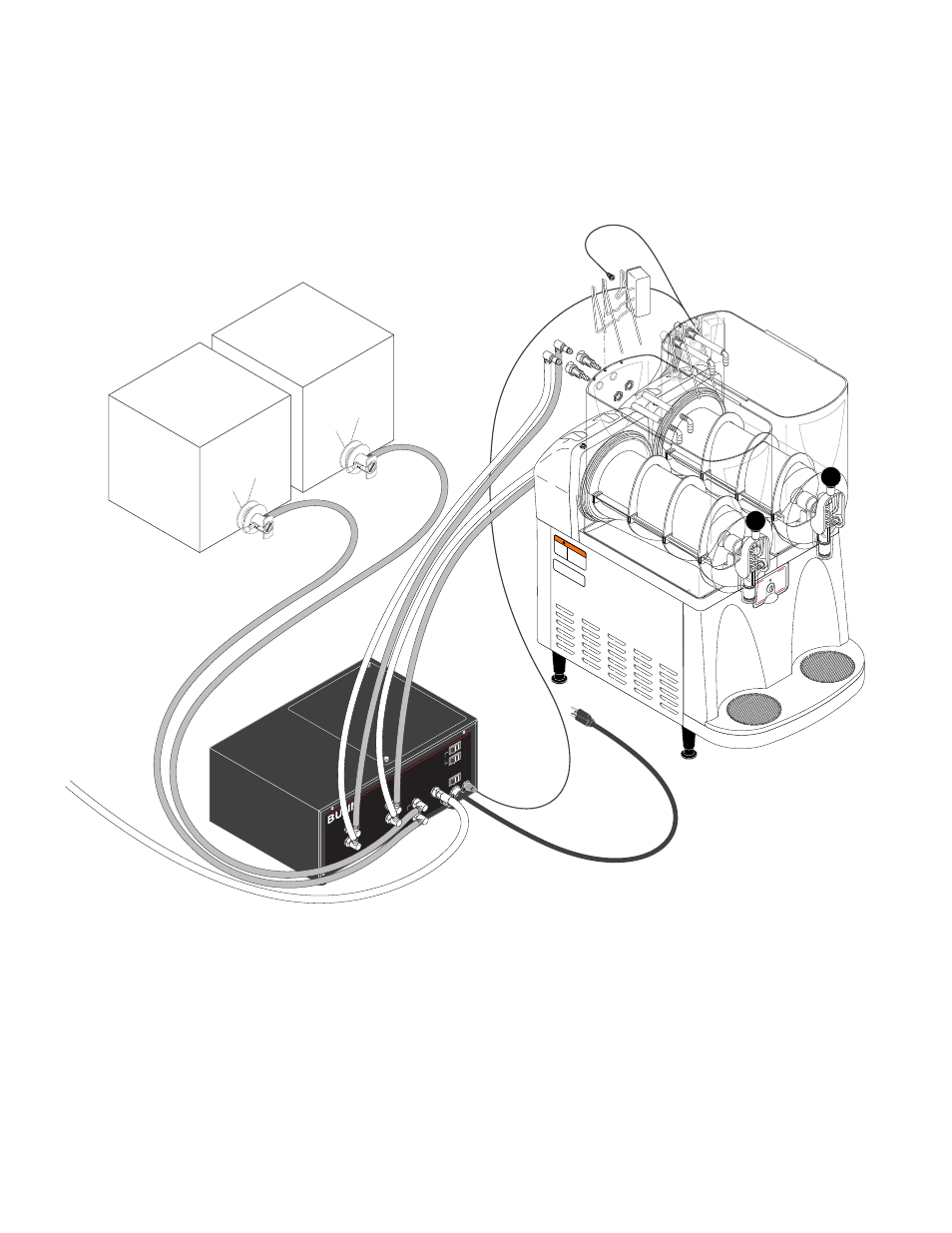

The only difference between the AFPO-2/3 and AFPO-2/3 SL is the SL models have a water output line and
a flavor output line for each product. This allows the water and flavor to be mixed in the CDS hoppers. Refer to
the illustration below when connecting the lines.
