3. Twist the Whipper
Chamber clockwise and
pull it off the Whipper
Chamber Receptacle.

4. Pull the Frother off the
Motor Shaft. Notice the
flat keyway on the shaft
and the matching keyway
inside the Frother. It is
important that these two
keyways are lined up
when reassembling.

5. Twist Whipper Cham-
ber Receptacle clockwise
and pull it off the Motor
Shaft.

7. Wash components in a
mild solution of dish de-
tergent using a bristle
brush.

9. Depress the Hopper
Lock Plunger, lift slightly.

10. Pull the Hopper as-
sembly forward and re-
move.

11. Pull the Auger from
the Cooling Drum.

12. Remove the Hopper
Seal from the flange on
the Cooling Drum.

13. CAUTION: Faucet
Valve is under spring ten-
sion. Spread one side of
the Handle first, then the
other and disconnect
from the Hopper.

14. Carefully slide Valve
up to remove Spring and
Faucet Seal. Extra care
should be taken when
handling the Seal to pre-
vent damage.

15. Remove the Auger
Nose Bushing from inside
the front of the Hopper.

USE & CARE INSTRUCTIONS for ULTRA-2 COLD DRINK DISPENSER WITH PAF DISPENSER

NOTICE - This guide is for quick reference only and is not intended to replace the information in the Operation Manual!

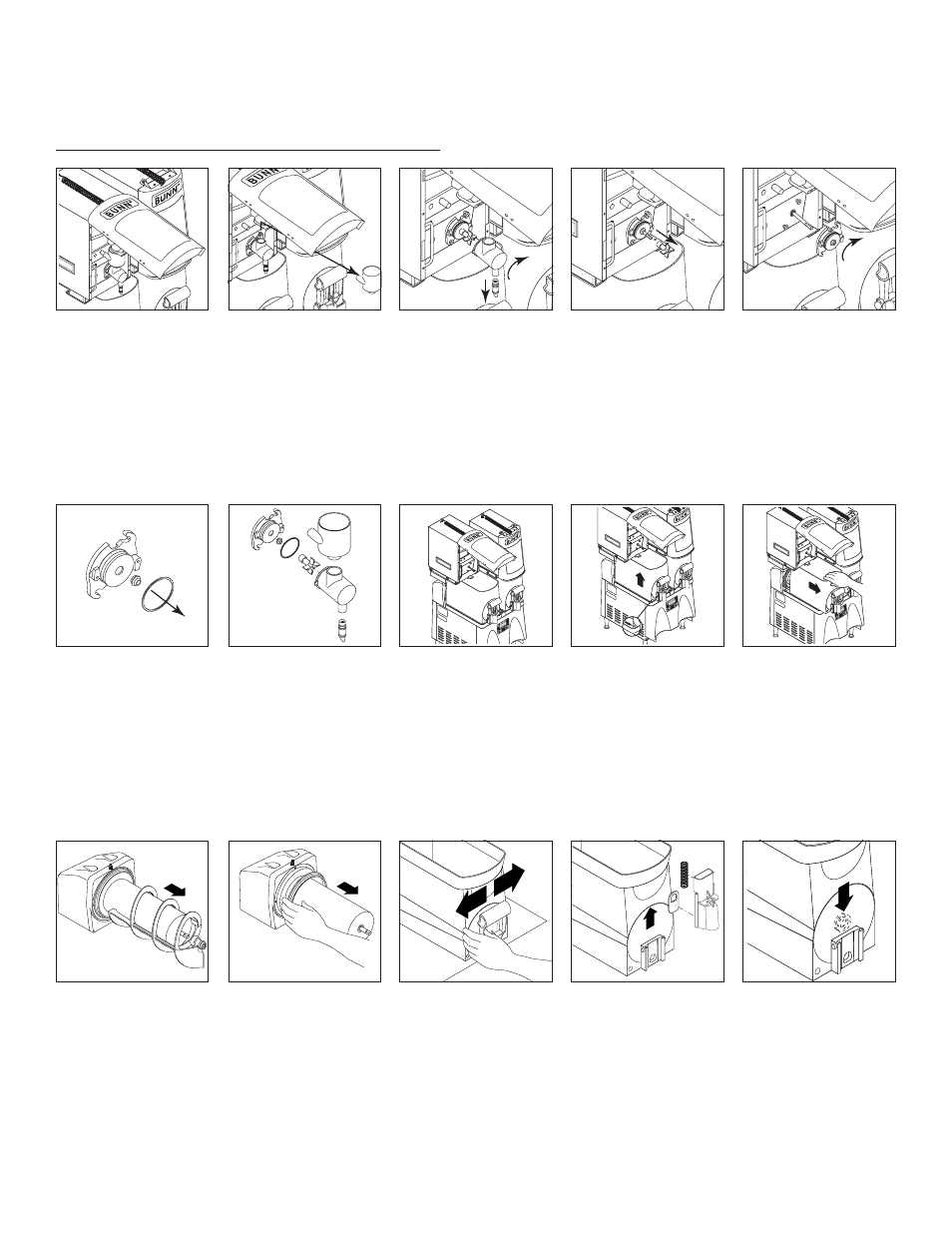

DISASSEMBLY & CLEANING

Empty all product from the ULTRA hoppers before proceeding!

1. Open the Cabinet Door
and allow the support
arms to lock in place.

2. Pull the Mixing Cham-
ber out of the Whipper
Chamber.

6. Slip the O-ring off the
Whipper Chamber Recep-
tacle and remove the shaft
seal.

8. Slide PAF assembly
back until it latches before
removing ULTRA Hop-
pers.
