14
English

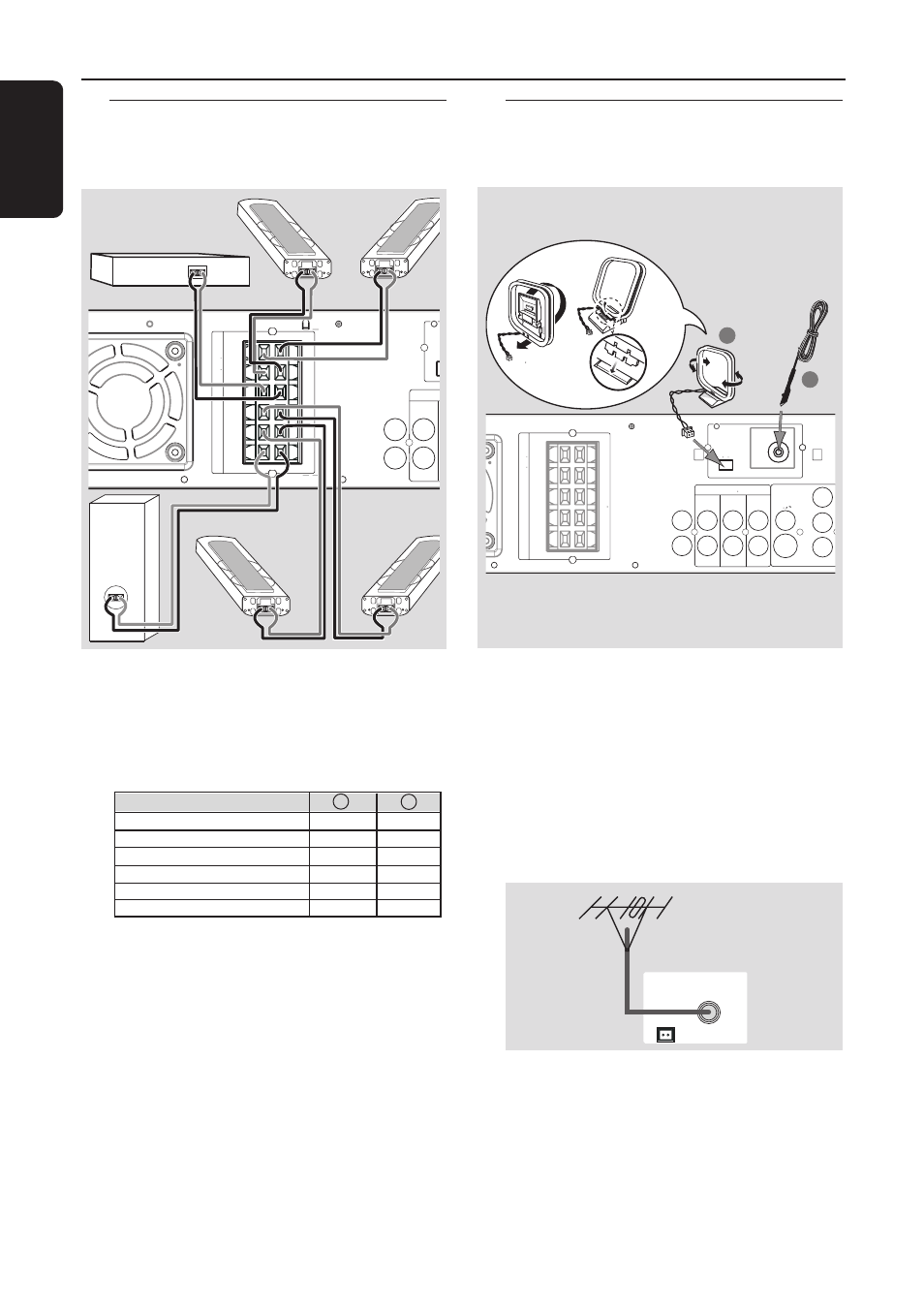

Step 4: Connecting speakers
and subwoofer
Connect the supplied speaker systems using the
supplied speaker cables by matching the colors
of the jacks and speaker cables. Fully insert the
stripped portion of the speaker wire into the
jacks.
Speakers / Subwoofer - +
Front Left (FL) (L) black white
Front Right (FR) (R) black red
Center (C) black green
Surround Left (SL) black blue
Surround Right (SR) black gray
Subwoofer (SUB) black purple
Notes:
– Ensure that the speaker cables are correctly
connected. Improper connections may damage the
system due to short-circuit.
– Do not connect more than one speaker to any
one pair of
+ / - speaker jacks.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
DIGITAL
OUT
DIGITAL
IN
AUX
IN
L
R
SPEAKER SYSTEMS
SUB-
WOOFER
SURROUND
CENTER
FRONT
L
R
SL
SUB
SR
C
Front
Right
Front
Left
Surround
Right
Surround
Left
Subwoofer
Center
Connections
FM ANTENNA
AM
SPEAKER SYSTEMS
SUB-
WOOFER
SURROUND
CENTER
FRONT
L
R
SL
SUB
SR
C
DIGITAL
OUT
DIGITAL
IN
AUX
IN
TV
IN LINE
OUT
AUDIO VIDEO
OUT
CVBS
S-VIDEO
L
R
Pr
Pb
Y
1
2
➠
FM
antenna
AM
antenna
fix the claw
into the slot
1
Connect the supplied AM loop antenna to the
AM jack. Place the AM loop antenna on a shelf
or attach it to a stand or wall.
2
Connect the supplied FM antenna to the FM
jack. Extend the FM antenna and fix its ends to
the wall.
For better FM stereo reception, connect an
external FM antenna (not supplied.)
AM
FM ANTENNA
Notes:
– Adjust the position of the antennas for optimal
reception.
– Position the antennas as far as possible from
your TV, VCR or other radiation source to prevent
unwanted interference.
Step 5: Connecting FM/AM
antennas
