Fire Monitoring System Set up FMS | en 13
Bosch Security Systems Installation Guide F.01U.032.785 | A3 | 2007.05
Connection
FMS can be used with the following panels:
– FPA-5000 (connection via OVS to the IOS 0020 A
or FPE-5000-UGM)
– UEZ 2000 LSN (connection via OVS to the SM 20)
– BZ 500 LSN (connection via OVS to the SM 20)

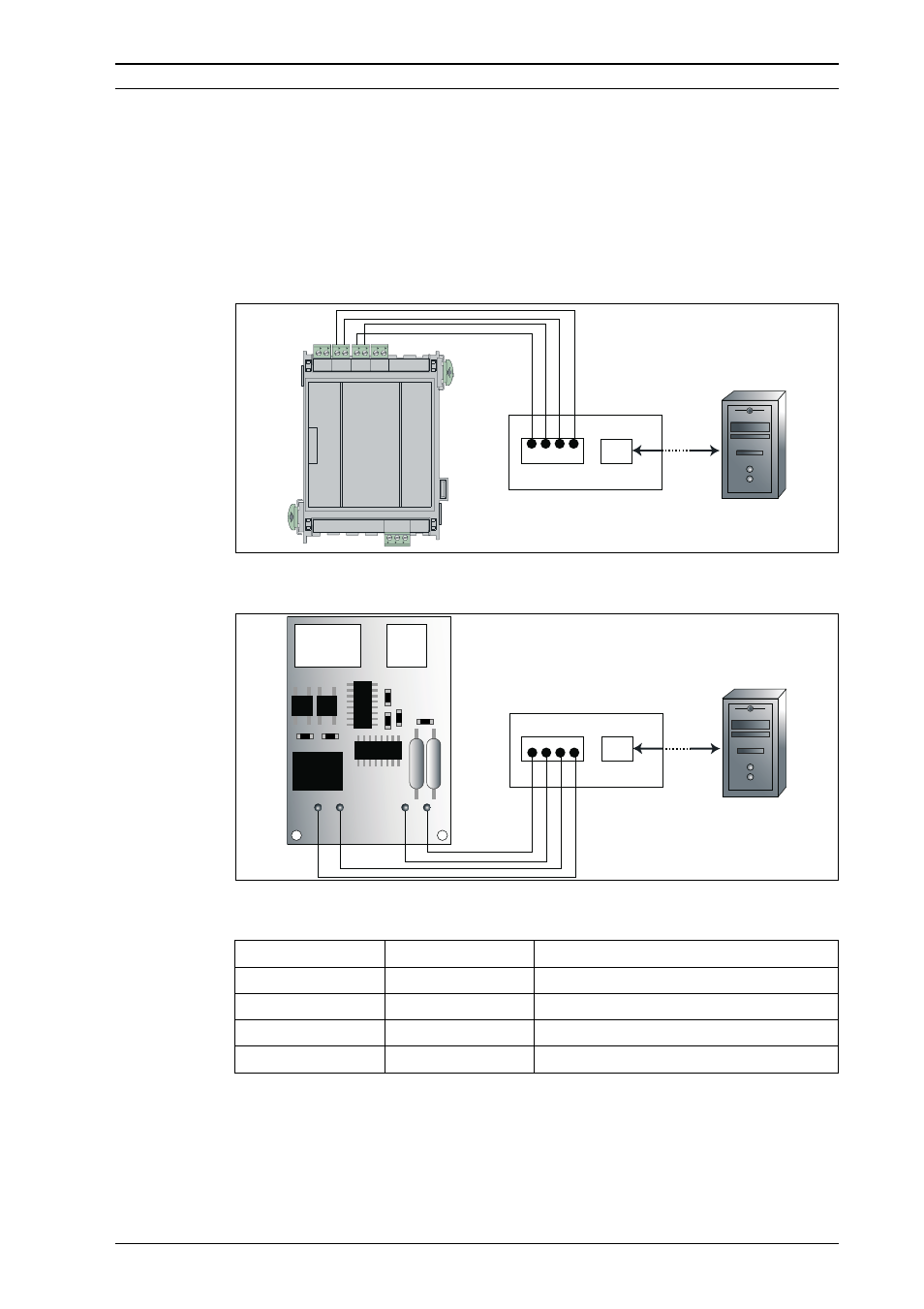

Figure 2.1 Connection with the panel FPA-5000
Figure 2.2 Connection with the panel UEZ 2000 and BZ 500
OPTO (OVS) IOS 0020 A SM 20 / FPE-5000-UGM
5 RX- SDI-
9 RX+ SDI+
1 TX+ SDO-
6 TX- SDO+
- +
RX
- +
TX
IOS 0020 A
- +
AUX IN
OUT S1
RXD TXD GND
FSM-2000
OVS
5 9 1 6
OPTO V 24
FSM-2000
OVS
5 9 1 6
OPTO V 24
SM20
SDO+ SDO- SDI+ SDI-
