Introduction

Manual Documentation Number: ESP901-902-3704

Chapter 1

5

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com

B&B Electronics Ltd – Westlink Commercial Pk – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

Serial Server Quick Start Guide

For descriptive purposes this Quick Start Guide considers a typical
configuration consisting of a

PC

connected via an Ethernet LAN to an

ESP901

or

ESP902 Serial Server

connected to the RS-232 port of a

serial device

.

Hardware Setup

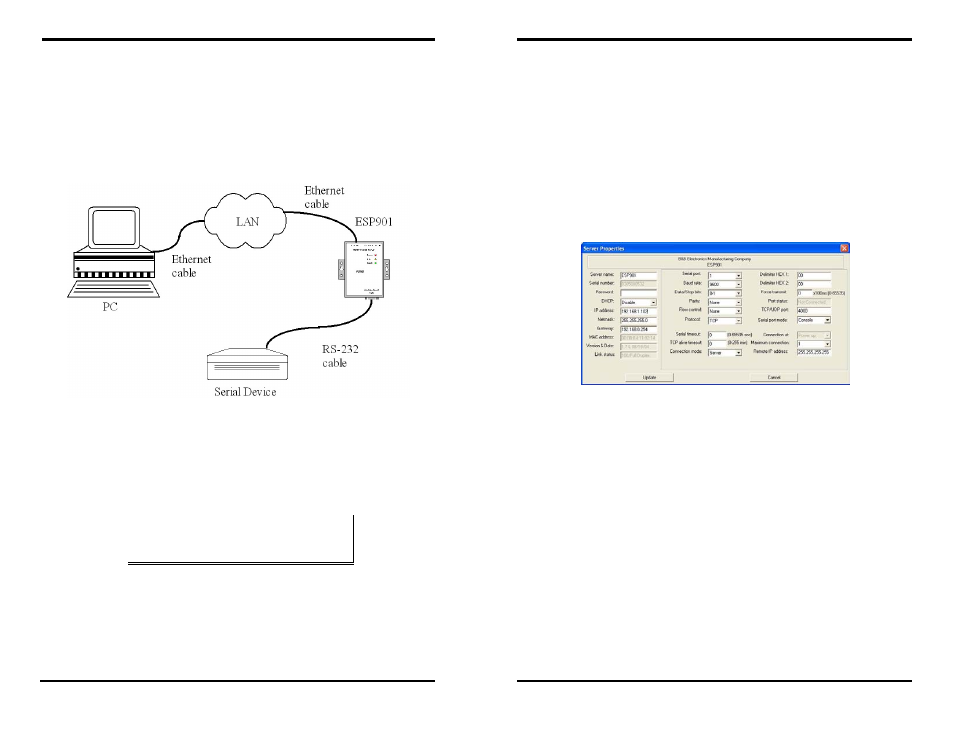

Figure 2.

Typical Hardware Setup

Step 1: Connect the

Serial Server

to the network using a standard

network cable.

Step 2: Connect the

Serial Server

to the RS-232 port on the

serial

device

.

N

N

o

o

t

t

e

e

:

:

If the serial device is configured as a DCE use a straight-through serial

cable. If the serial device is configured as a DTE use a crossover (null
modem) cable.

Step 3: Set all the DIP switches to the

OFF

position.

Step 4: Apply power to the

Serial Server

.

Introduction

6

Chapter 1

Manual Documentation Number: ESP901-902-3704

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com

B&B Electronics Ltd – Westlink Commercial Pk – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

Software Installation

Using the CD included with the

Serial Server

, install the

VLINX ESP

Manager

software on the configuring computer.

Serial Server Configuration

Step 1: Open the

ESP Manager

software. It will automatically search

for any reachable (ESP90x)

Serial Servers

. A list of all

Serial

Servers

connected to the LAN will appear in the

Serial

Server List

window.

Step 2: Double click the desired

Serial Server

port on the list to bring

up the

Server Properties

configuration screen.

Figure 3.

The Server Properties Window

Step 3: Change the

Server Properties

as required.

• Enable

DHCP

to allow the

Serial Server

to generate its

own IP address

OR

• Obtain appropriate static

IP

,

Netmask

and

Gateway

addresses from your Network Administrator
(recommended)

• Set the

Serial Port Mode

property to RS-232 to match the

serial device connected to the

Serial Server

.

• Set

Baud Rate

,

Data/Parity/Stop

, and

Flow Control

to

match the configuration of the serial device connected to
the

Serial Server

port

Step 4: When the parameters have been set, click

Update

. Following

the prompts in the dialogue boxes,

Restart

the Serial Server

and

Search all reachable servers

again.
