The Web Server can be used to configure the
Serial Server
from any
web browser software (such as Internet Explorer). Server properties can
be set up using three browser pages.
N
N
o
o
t
t
e
e
:
:
See Chapter 5 for details on Server Properties.
Setting Server Properties
In Internet Explorer type the IP Address of the
Serial Server
into the
address field near the top of the window and press the
Enter key
. The
following window will appear:

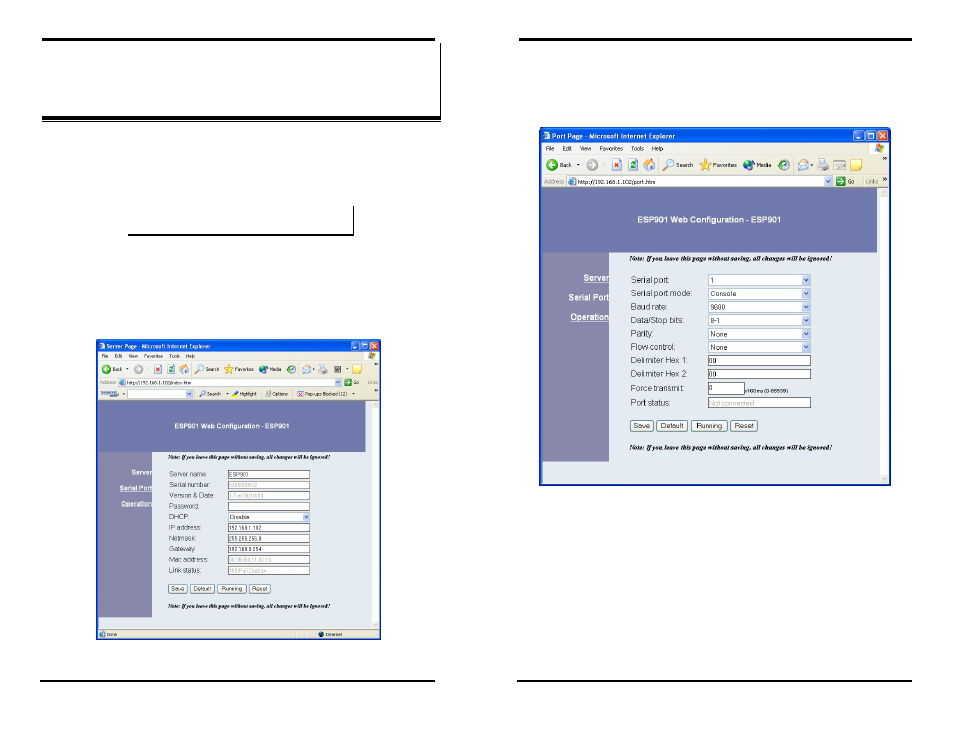

Figure 52.
The Web Server Page
Using the Web Server
60
Chapter 10
Manual Documentation Number: ESP901-902-3704
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Pk – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Navigate and change properties as required using the mouse and
keyboard.
To change serial port properties, click
Serial Port
on the left side of the
browser window. The following page will appear:
Figure 53.
The Web Server Serial Port Properties Page
To change other operational properties, click
Operation
on the left side
of the browser window. The following page will appear:
