Using ESP Manager
Manual Documentation Number: ESP901-902-3704 Chapter 4 29
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Pk – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

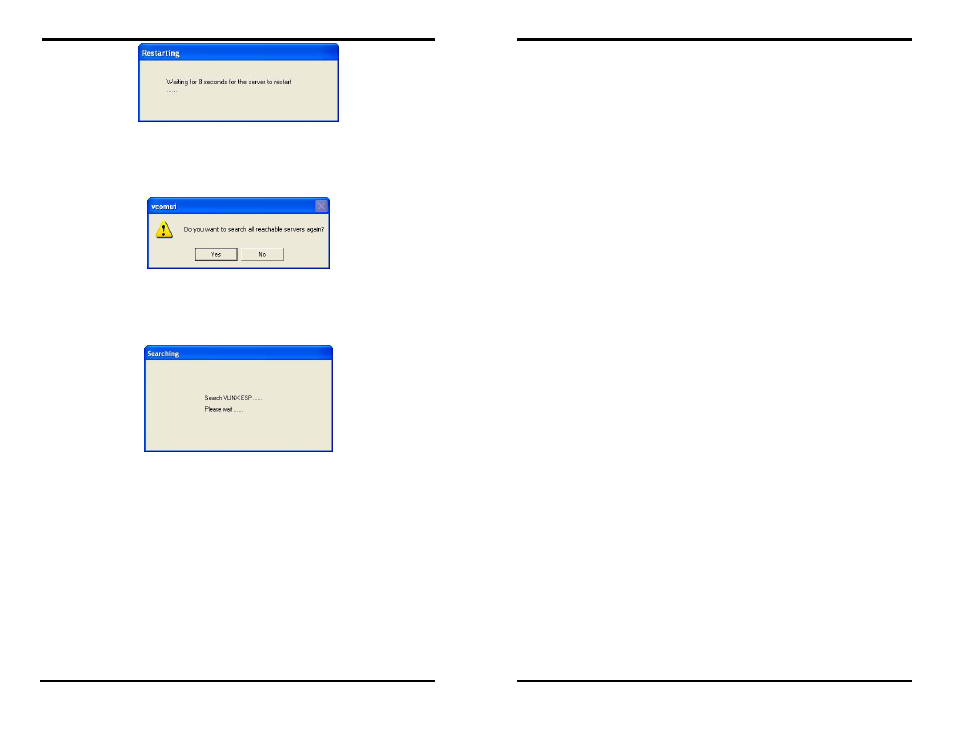

Figure 26. The Restarting Dialogue Box
After eight seconds a dialogue box will ask whether you want to search
for all reachable servers again.
Figure 27. The Server Search Dialogue Box
While the Serial Server is searching for all reachable servers the
following dialogue box appears:
Figure 28. The Search VLINX ESP Dialogue Box
After that port has been updated you may want to re-enter Server
Properties to verify the changes have taken effect, or to
view/change the configuration of other ports. Each port must
be configured separately.
Using ESP Manager
30 Chapter 4 Manual Documentation Number: ESP901-902-3704
