15
CHAPTER 3: Software Installation and Configuration
6. The Setup Wizard: Device IP Address dialog box appears (see Figure 3-3).

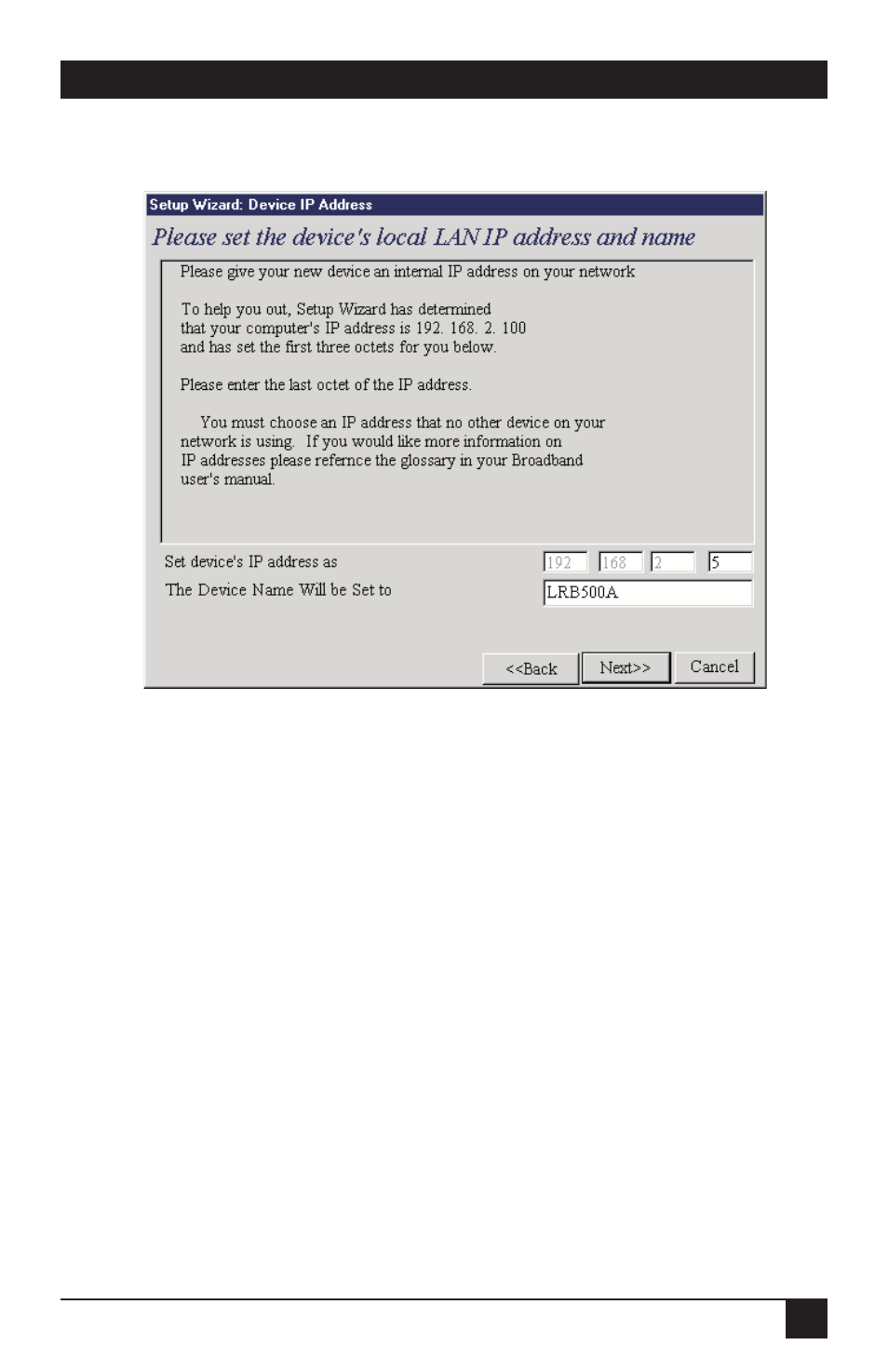

Figure 3-3. Setup Wizard: Device IP Address dialog box.
Enter your local internal network’s IP address for this device.
The Setup Wizard will automatically detect the first three octets of your local
IP address. You must enter the last octet only.
If you wish, you can change the network name of your Router. If you are
connecting to an ISP, the device name can act as your computer name if it is
required on the remote system.
Click Next>> to continue. The device will search the network to ensure that
the IP address is valid. This may take several seconds.
NOTE
If your ISP provided you with an IP address, do not enter that address in
this field. Enter the IP address for this device on your local network.
Refer to the Glossary in the User Guide for additional information on IP
addressing.
