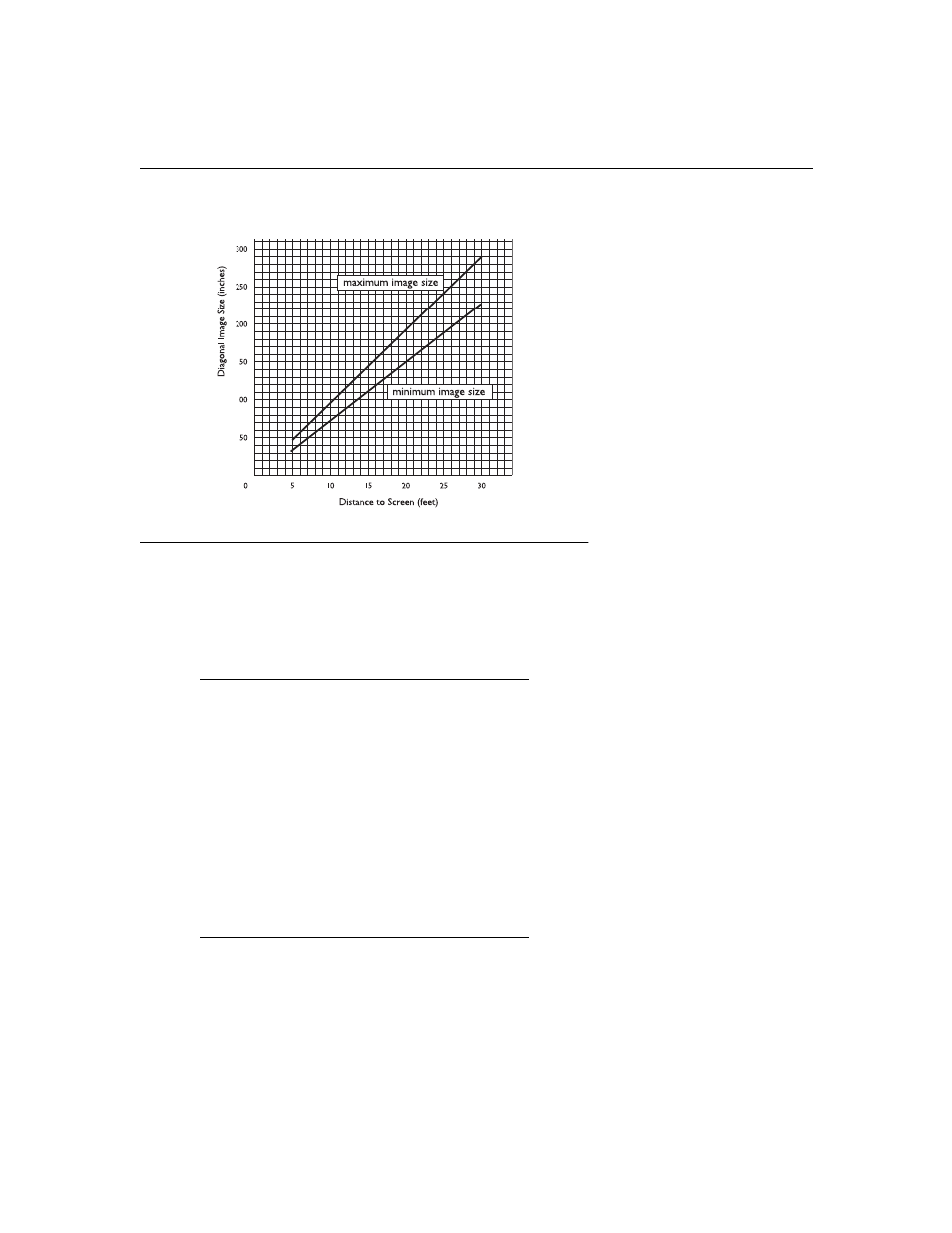

F IGURE 30
Projected image size for CD-550m
Table 5:
Image Size, Width and Height for CD-550m-maximum image size
Distance to
Screen (feet)
Diagonal
(feet)
Width
(feet)
Height
(feet)
4.9 3.6 2.9 2.2
8 6.5 5.2 3.9
12 9.7 7.8 5.8
16 12.9 10.3 7.7
20 16.0 12.8 9.6
30 24.5 19.6 14.7
Table 6:
Image Size, Width and Height for CD-550m-minimum image size
(metric)
Distance to
Screen (m)
Diagonal
(m)
Width
(m)
Height
(m)
1.5 .9 .7 .5
2.4 1.5 1.2 .9
3.7 2.3 1.8 1.4
4.9 3.0 2.4 1.8
6.1 3.8 3.0 2.3
9.1 5.7 4.6 3.4
