Preparing to Connect Your Equipment to the Projector
NOTE: Before you continue,
make sure the projector and your
equipment are turned off. If you’re
connecting a computer, make sure
the distance between it and the
projector is 10 feet or less.
Now you’re ready to connect your equipment. Computers are
connected to the CablePro. Video players are connected directly
to the projector.
Steps for connecting the different types of equipment are given
on the pages listed below.
NOTE: The computer audio in
connector on the connector panel
is only used with the optional
CablePro Lite cable. If you are
using CablePro, the audio cable
should be connected to the
CablePro, not directly to the projec-
tor.

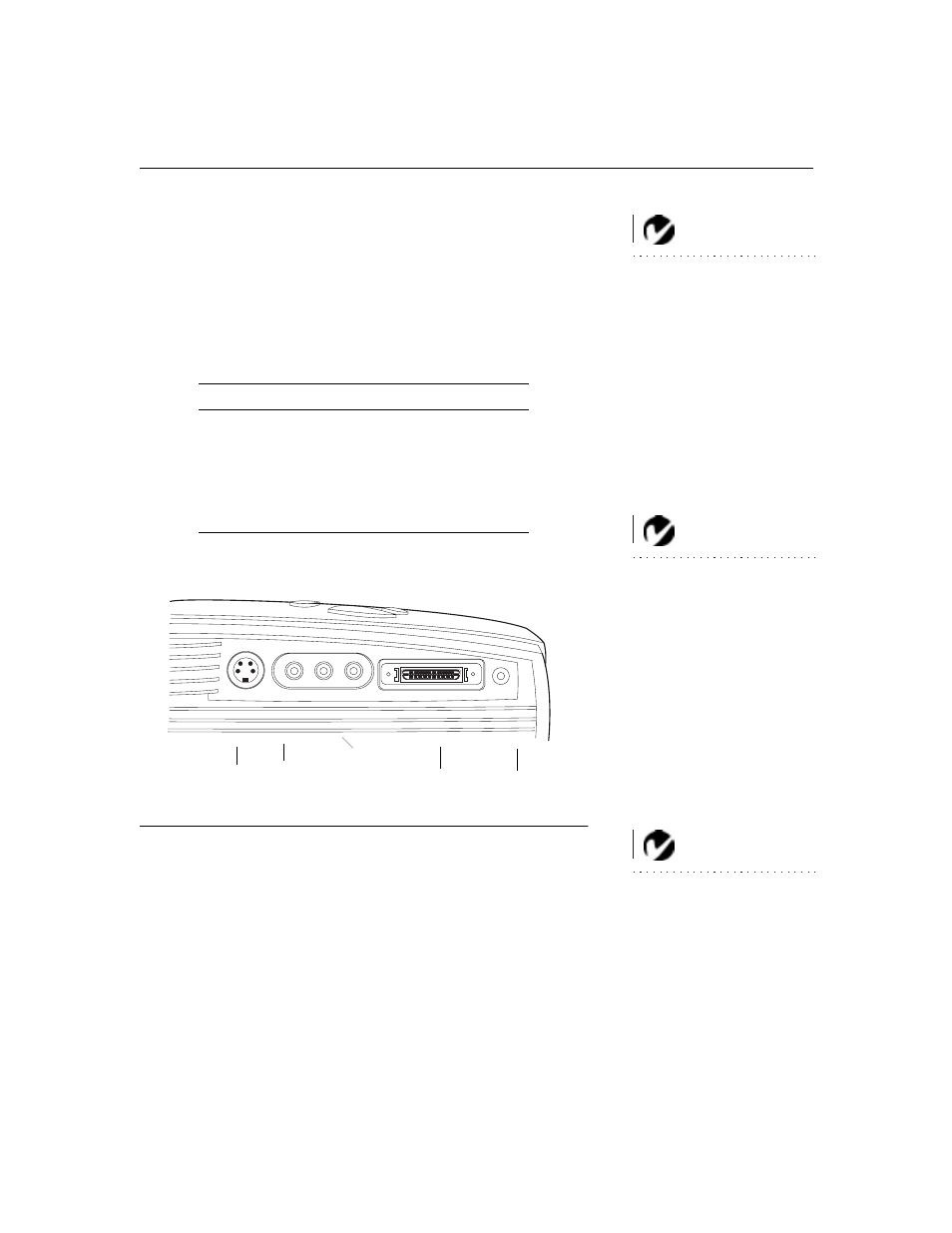

F
IGURE
6
Connector panel
NOTE: If you are connecting an
older Macintosh computer that
does not have a 15-pin connector,
you must use a Mac adaptor
between the computer and the
CablePro. See “Optional Accesso-
Equipment you want to connect
Page
Laptop computer with CablePro
Desktop computer with CablePro
USB or PS/2 mouse
pages 10-11,
page 13
Video player
CablePro
s-video
composite
video
L/R audio in
audio in
computer
(for video source)
