6 HS 855 HD
Dragline equipment
58,000 lbs counterweight
СС
С С
С
С С
С

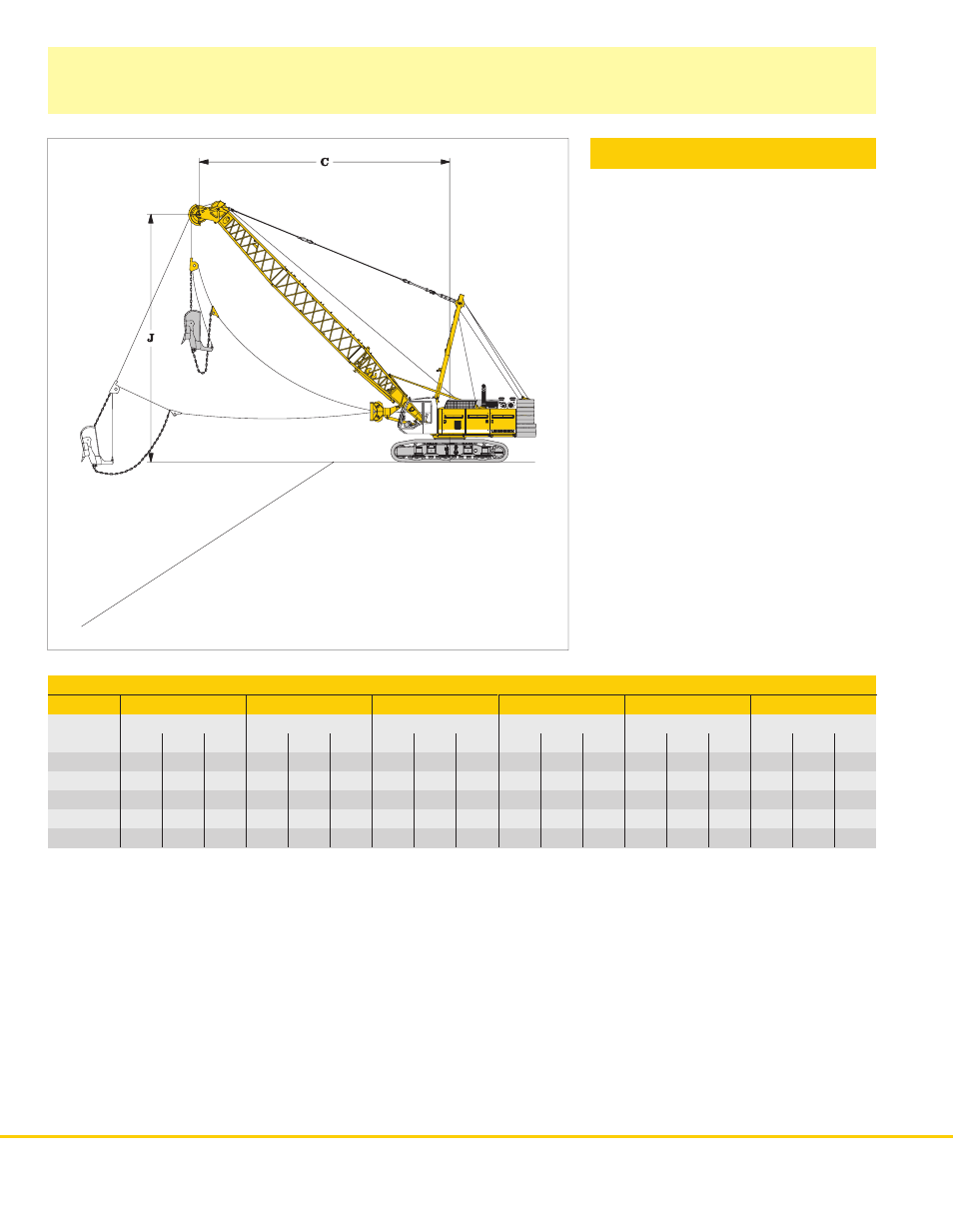

Working diagram
C = Radius / dumping radius
J = Height of boom head sheave centre above
ground level
Capacities in 1000 lbs for boom lengths (46 ft – 95 ft) counterweight 58,000 lbs
46 ft 56 ft 66 ft 75 ft 85 ft 95 ft
C J C J C J C J C J C J
α ft ft lbs ft ft lbs ft ft lbs ft ft lbs ft ft lbs ft ft lbs
45 39.0 37.4 37,9 45.9 44.3 30,6 53.1 51.2 25,1 60.0 58.0 22,3 66.9 19.8 19,0 73.8 72.2 16,5
40 41.6 34.4 34,6 49.2 40.7 28,7 56.8 47.2 23,8 64.3 53.5 20,5 71.8 18.2 17,4 79.4 65.9 15,0
35 43.9 31.5 30,0 52.2 37.1 26,9 60.0 42.7 22,3 68.2 48.2 18,7 76.1 16.5 15,9 84.3 59.7 13,9
30 45.9 28.2 24,9 54.5 33.1 24,5 63.0 38.1 20,3 71.5 43.0 17,2 80.1 14.6 14,6 88.6 52.8 12,6
25 47.6 24.9 23,6 56.4 28.9 22,0 65.6 33.1 18,5 74.4 37.4 15,6 83.3 12.6 13,2 92.2 45,6 11,2
Max. capacities in 1000 lbs do not exceed 75% of tipping load.
