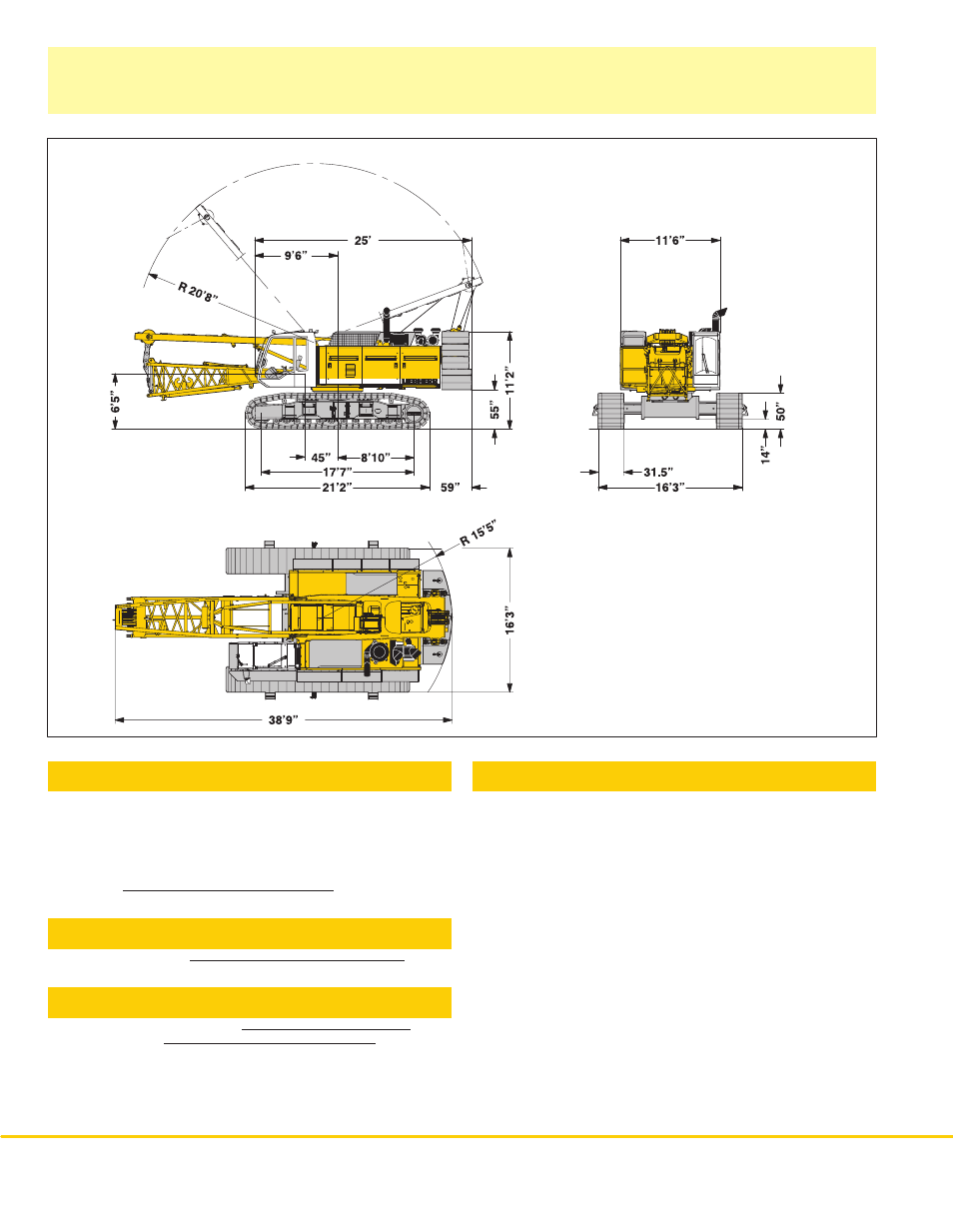

Dimensions
2 HS 855 HD
Operating weight
The operating weight includes the basic machine with HD undercarriage,
2 main winches 55,200 lbs including wire ropes (295 ft) and 36 ft main
boom, consisting of A–frame, boom foot (18 ft) and boom head (18 ft),
58,000 lbs basic counterweight, 31.5 inch triple grouser track shoes and
110,250 lbs hook block.
Total weight approx. 192,000 lbs
Ground pressure
Ground bearing pressure 14 PSI
Basic machine with undercarriage
Equipment
Main boom (No. 1311.xx) max. length 223 ft
Fixed jib (No. 0806.xx) 36 ft – 105 ft
Modular designed equipment for operation as crane, with dragline or
clamshell.
For dragline operation, a rotating fairlead is fitted into the boom foot. This
minimizes the rope angle to drum, which results in lower rope wear.
Remarks
1. The lifting capacities stated are valid for lifting operation only (corres
ponds with crane classification according to F.E.M. 1.001, crane group A1)
2. Crane standing on firm, horizontal ground.
3. The weight of the lifting device (hoisting ropes, hook block, shackle etc.)
must be deducted from the gross lifting capacity to obtain a net lifting
value.
4. Additional equipment on boom (e.g. boom walkways, auxiliary jib) must
be deducted to get the net lifting capacity.
5. For max. wind speed please refer to lift chart in operator’s cab or manual.
6. Working radii are measured from centre of swing and under load.
7. The lifting capacities are valid for 360 degrees of swing.
8. Calculation of stability under load is based on DIN 15019 / part 2 / chart 1
and ISO 4305 Table 1 + 2, tipping angle 4º.
9. The structures are calculated according to F.E.M. 1.001 – 1998
(EN 13001–2 / 2004).
10. ANSI B 30.5
