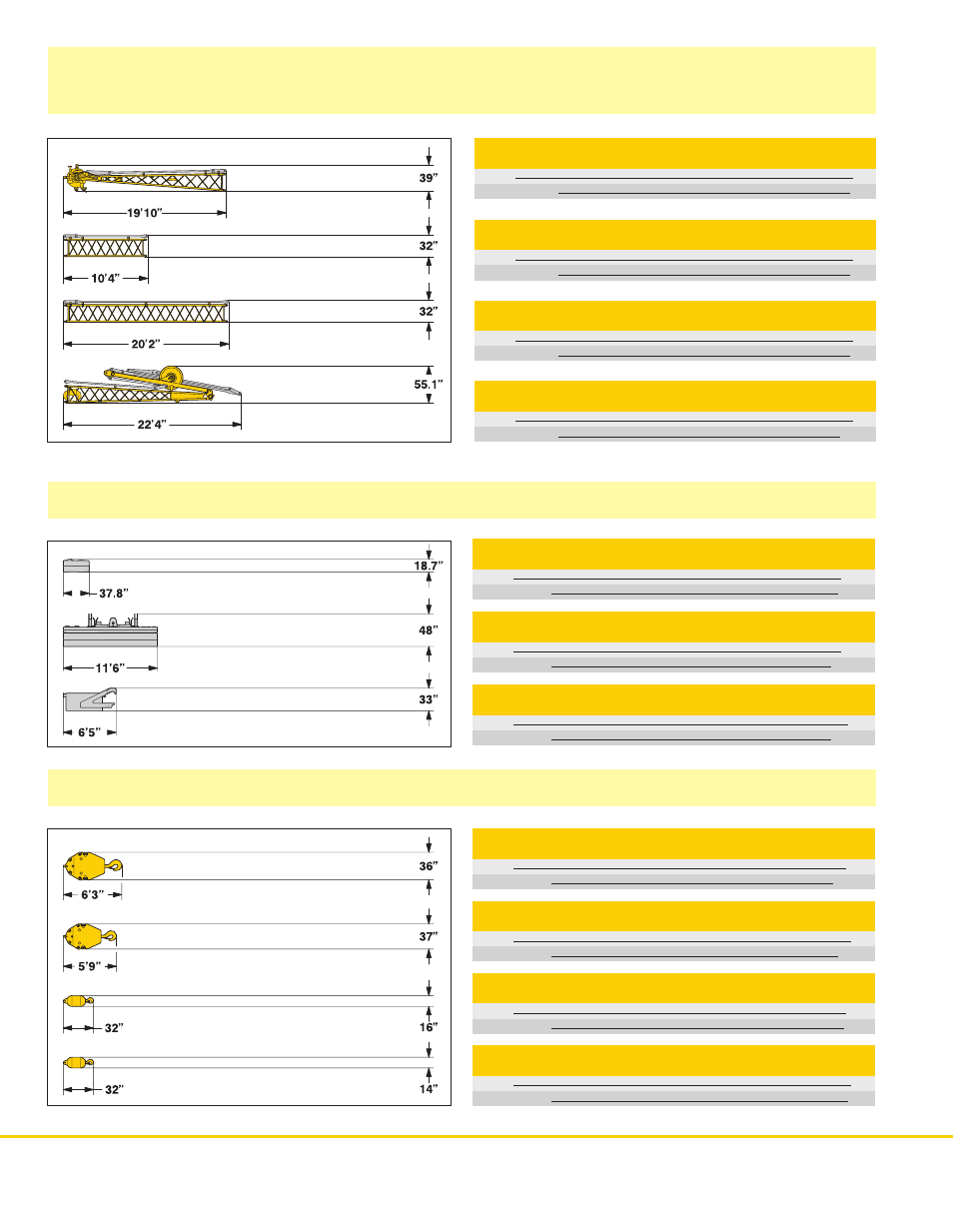

Transport dimensions and weights
Fixed jib
(No. 0806.xx)
110,230 lbs hook block - 1 sheave
Weight in lbs 1,650
Width 12”
88,200 lbs hook block - 1 sheave
Weight in lbs 1,135
Width 12”
44,100 lbs single hook
Weight in lbs 660
Width 14”
55,120 lbs single hook
Weight in lbs 880
Width 16”
Hooks
* ) Including pendant straps
Counterweight
4 HS 855 HD
Fixed jib head
(No. 0806.16)
Weight in lbs* 980
Width 45”
Fixed jib section
(No. 0806.15)
10 ft
Weight in lbs* 245
Width 38”
Fixed jib section
(No. 0806.15)
20 ft
Weight in lbs* 430
Width 38”
Fixed jib foot with A-frame
(No. 0806.16)
Weight in lbs* 2,050
Width 59”
Counterweight 10x
Weight in lbs 3,300
Width 33.5”
Counterweight 1x
Weight in lbs 38,150
Width 41.3”
Carbody counterweight 2x
Weight in lbs 16,500
Width 5’5”
