„ Allows only one PC on the LAN
„ The public IP address assigned by the remote using the
PPP/IPCP protocol is actually not used on the WAN PPP
interface. Instead, it is forwarded to the PC’s LAN interface
through DHCP. Only one PC on the LAN can be connected
to the remote since the DHCP server within the ADSL
router has only a single IP address to assign to a LAN
device.
„ NAT and firewall are disabled when this option is selected.
„ The ADSL Modem Router becomes the default gateway
and DNS server to the PC through DHCP using the LAN
interface IP address.
„ The ADSL router extends the IP subnet at the remote
service provider to the LAN PC. That is, the PC becomes a
host belonging to the same IP subnet.
„ The ADSL router bridges the IP packets between WAN and
LAN ports, unless the packet is addressed to the router’s
LAN IP address.
4. Click the Next button.

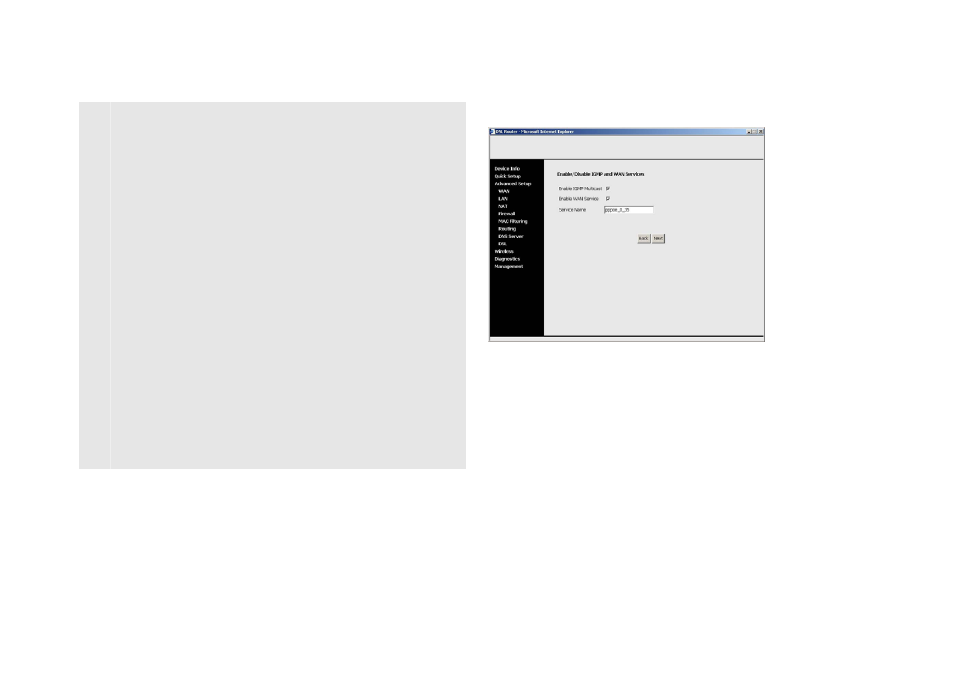

5. Check the box Enable IGMP Multicast if you want to
enable IGMP multicast. Check the box Enable WAN
Service if you want to enable WAN Service. Click Next.
6. The WAN Setup – Summary page displays a summary of
all WAN setting profiles. Click the Save button to save all
the settings.
11
