8
ASYNC 232
↔422/485 CONVERTER
The Async 232
↔
422/485 Converter is configured using an eight-position

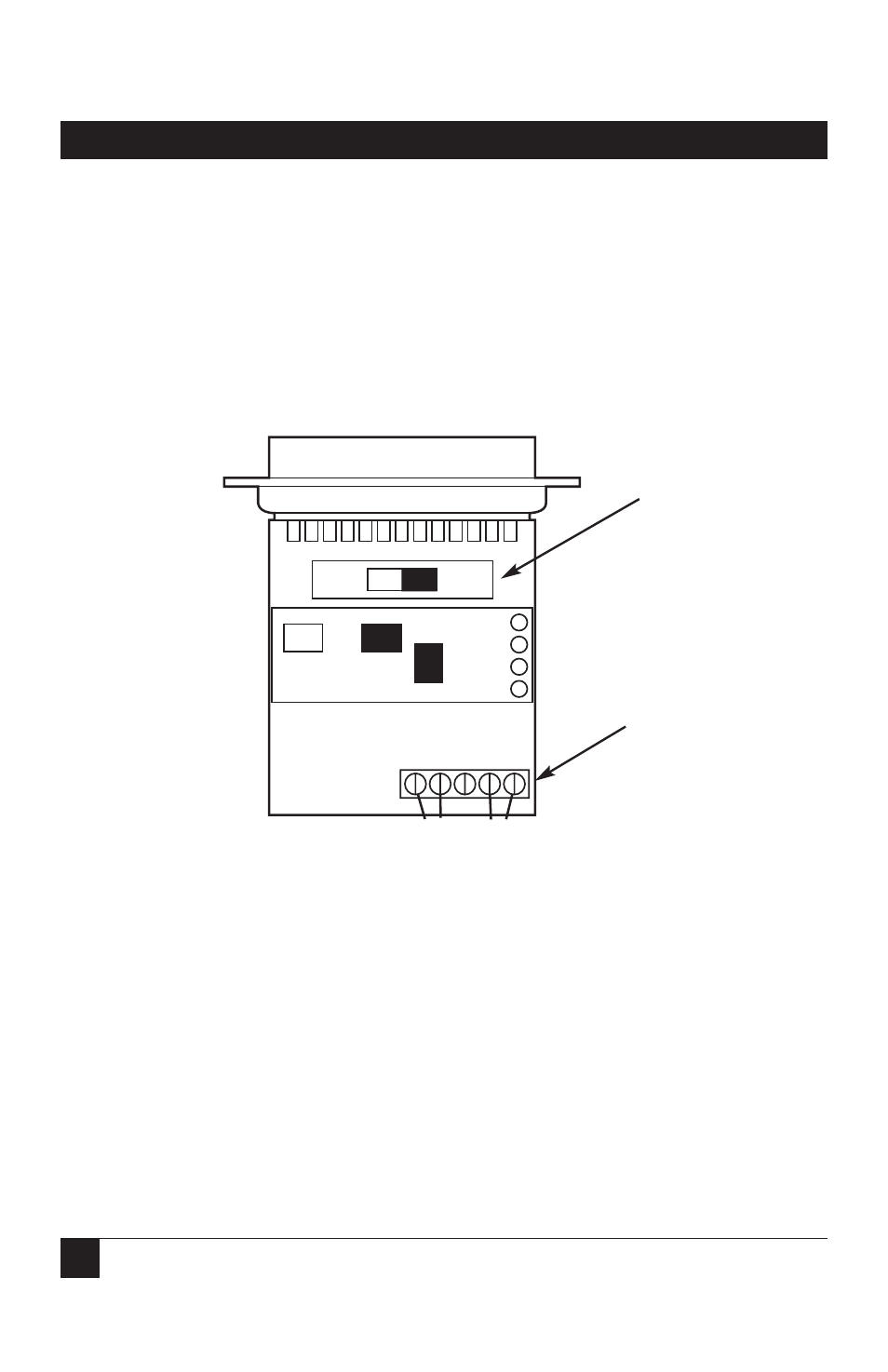

DIP switch and a DTE/DCE switch. The figure below shows the DTE/DCE
switch location, along with the location of the terminal block.
The illustration at the top of the next page shows the location of the eight-
position DIP switch on the underside of the Converter’s PC board.
DCE DTE
+RCV-G-XMT+
3. Configuration
DTE/DCE Switch
Terminal Block
