Video connection – Barco E-2320 C (SE) User Manual
Page 43
Display installation
43
Video connection
The display has 2 different video inputs: Digital (DVI) and VGA
(Sub-D 15).
You can connect one or more of these inputs. The best and
easiest connection is DVI.
If several video inputs are connected (meaning the display is
connected to different video controller boards) you can switch
inputs by using the display’s on-screen display.
Connecting DVI signals: One display:
1. Connect one end of the DVI cable to the DVI input of the
display.
2. Connect the other end of the DVI cable to the DVI
connector of the display controller. If this board has 2 video
heads (2 video outputs), connect to Vid 1 (Head A).

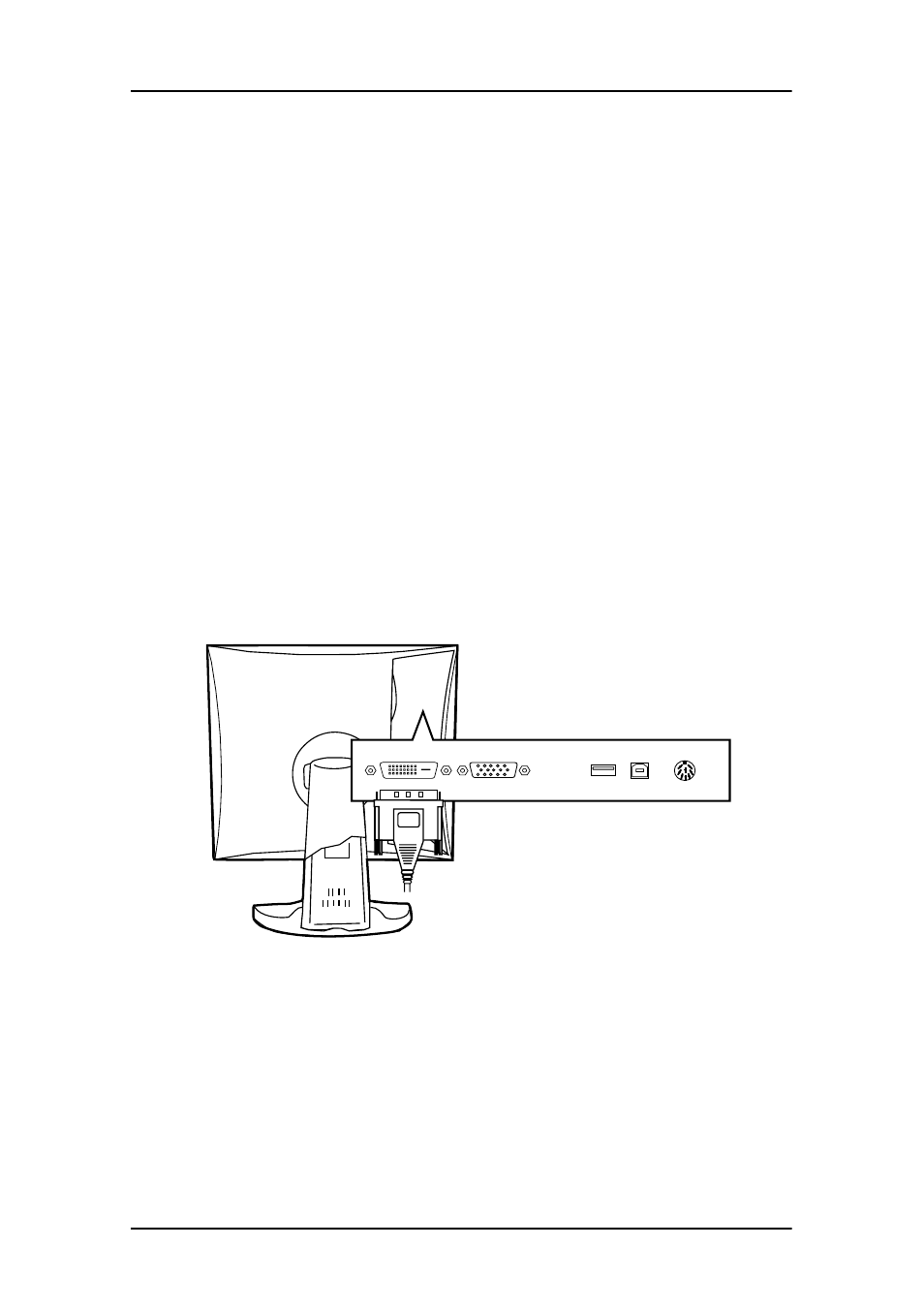

Figure 13
Connecting DVI signals: Two displays:
1. Connect the left display (when looking at the front side) to
Vid 1 as described above.
2. Connect the second display to Vid 2 (Head B).
