Installing your Barco display controller
33

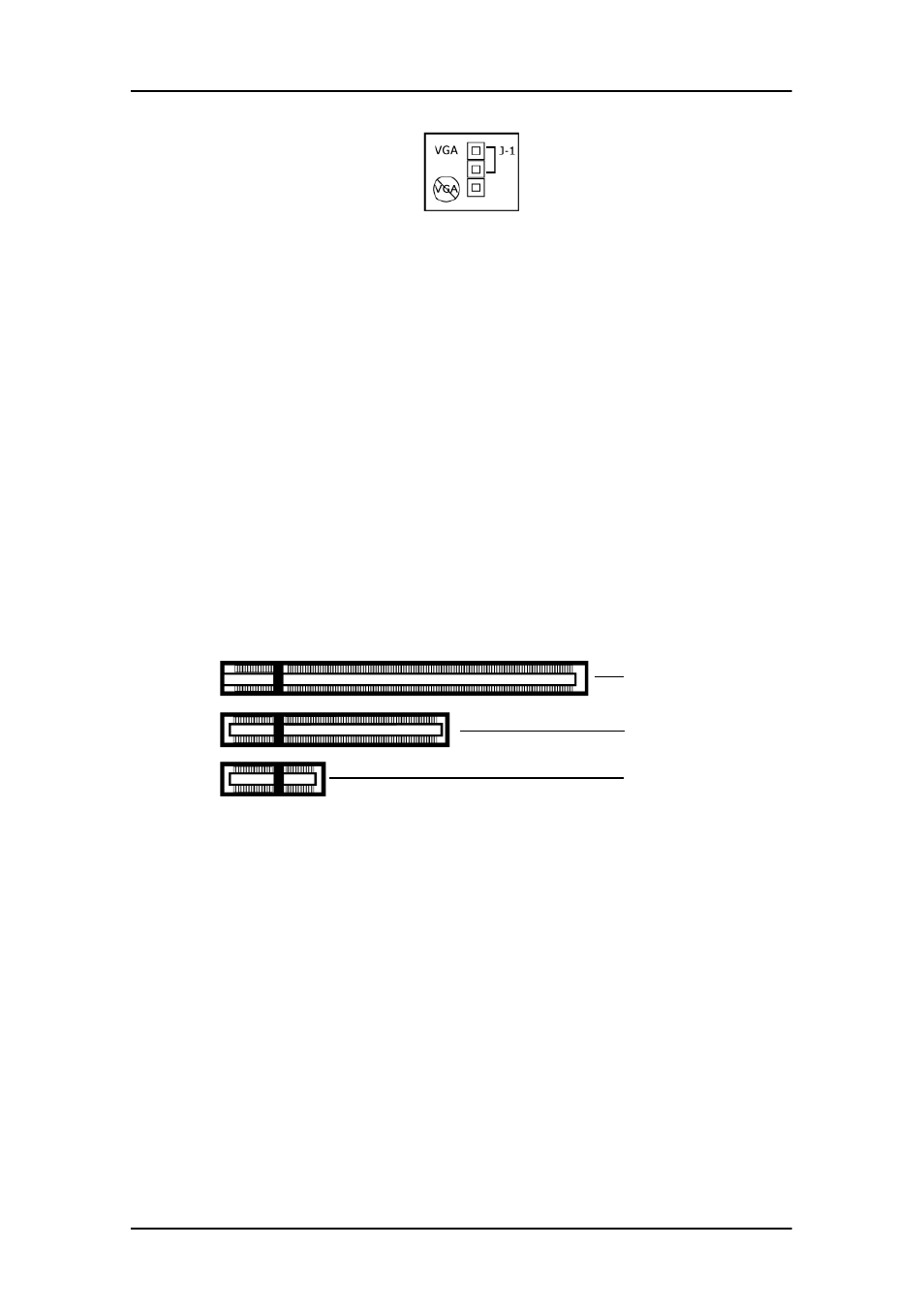

Figure 3: B
ARCO
M
ED
C
ORONIS
PCIe display controller VGA Jumper, VGA enabled
Note: To use multiple B ARCO
M
ED
C
ORONIS
PCIe display controllers
in a single host, you need to enable VGA on only ONE of the
B
ARCO M ED C ORONIS PCIe display controllers and disable VGA on ALL
the other BarcoMed display controllers. To use a B
ARCO
M
ED
C
ORONIS
PCIe display controller with a third party VGA controller
or with one or more B
ARCO
N
IO
MXRT display controllers, do NOT
enable VGA on the B
ARCO
M
ED
C
ORONIS
PCIe display controller.
Which PCIe slot to use
The table on the preceding page lists the different model display
controller(s) available for your B
ARCO
N
IO
Display System and the
recommended PCIe slot to use for optimum performance. Figure 4
shows the three different types of PCIe slots.
Figure 4: Examples of PCIe slots
Quick installation
Experienced users and system administrators can follow these brief
instructions for installing the display controller(s) for your B
ARCO
Display System in the shortest possible time.
x16 slot
x8 slot
x1 slot
