HW Diagnostics

SCSI TEST

[09. SCSI TEST]
To test the SCSI devices.
Before running the test, you must set the parameters. If "HOST ID NUMBER" is set as "ALL", "SCSI ID
NUMBER" and "CHANNEL NUMBER" are ignored.

[01. INQUIRY]
This subtest issues the INQUIRY command to the SCSI bus and displays result messages returned
from the devices on the SCSI bus. After specifying the valid host and channel number, the
INQUIRY command is sent to the target SCSI bus. It then displays the result code from ID0
through ID15.

CHAN
Indicates the ASPI angle ID and host adapter.

HOST
The channel number in the target host adapter.

ID00, 01, 02 …
The SCSI ID number in the target host adapter.

The types of SCSI devices to be displayed are as follows:

HDD

Hard disk device

CD-ROM device

CMT

Magnetic tape device

SCN

Scanner

PRT

Printer

Magnet-optic disk device

PRC Processor

(SAF-TE) MC Media

changer

WON

Write Once device

COM

Communication device

???

Undefined device

---

Not connected

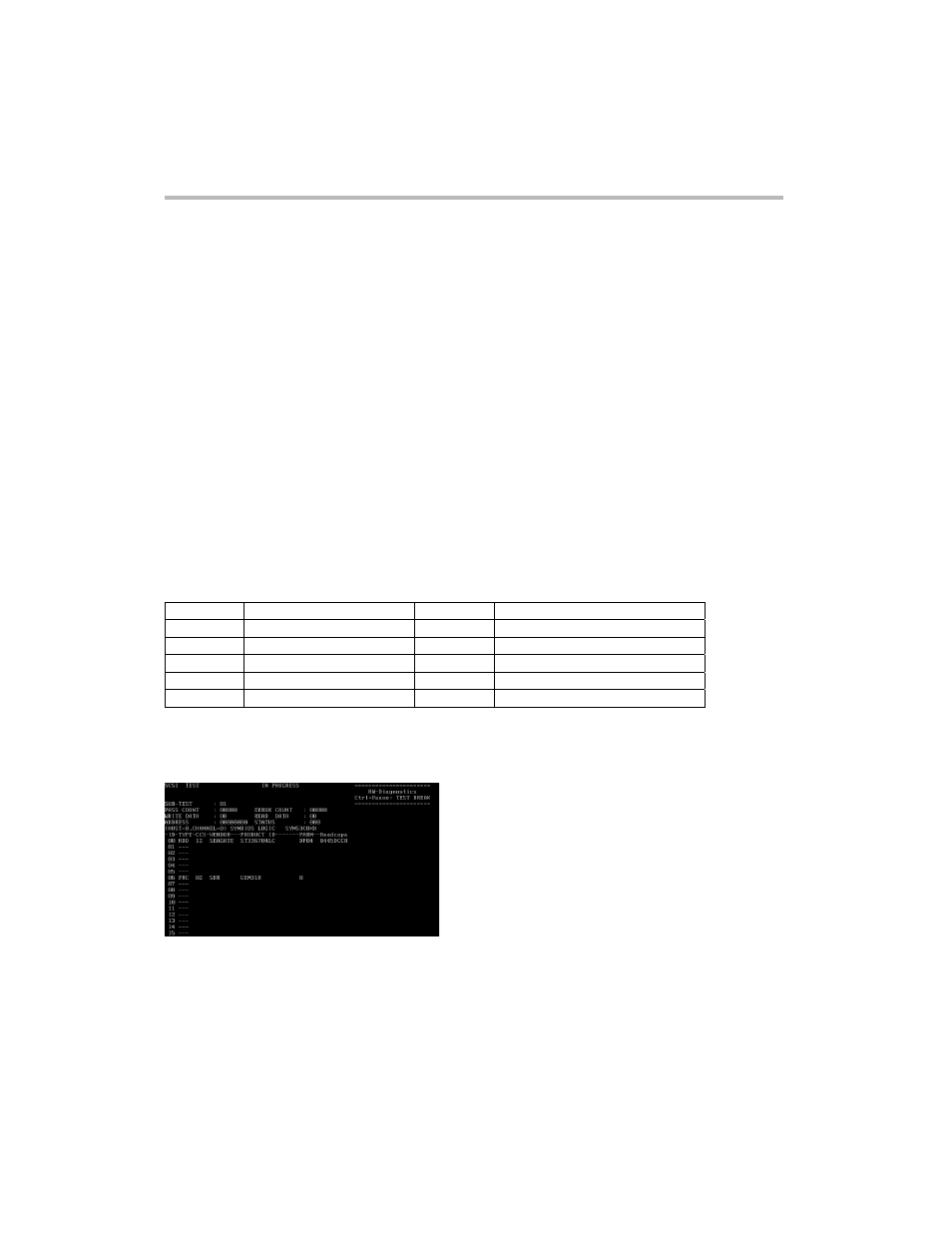

The following screen shows an example when the built-in hard disk drive is connected to the
on-board SCSI controller.

INQUIRY Screen
