Installation
Step 1 Mounting the Switch (optional)
Bracket Installation (F1DN108U)
The 8-Port Switch includes adjustable mounting brackets ideal for installation
in 19-inch racks. The mounting brackets feature three adjustment positions that
allow you to set the Switch’s face flush with the ends of the rails, or to extend the
Switch past the front of the rails. Please follow these simple steps to achieve the
desired adjustment.
1.1 Determine how far you would like the Switch to protrude from the rack.
Select a bracket-hole scheme.

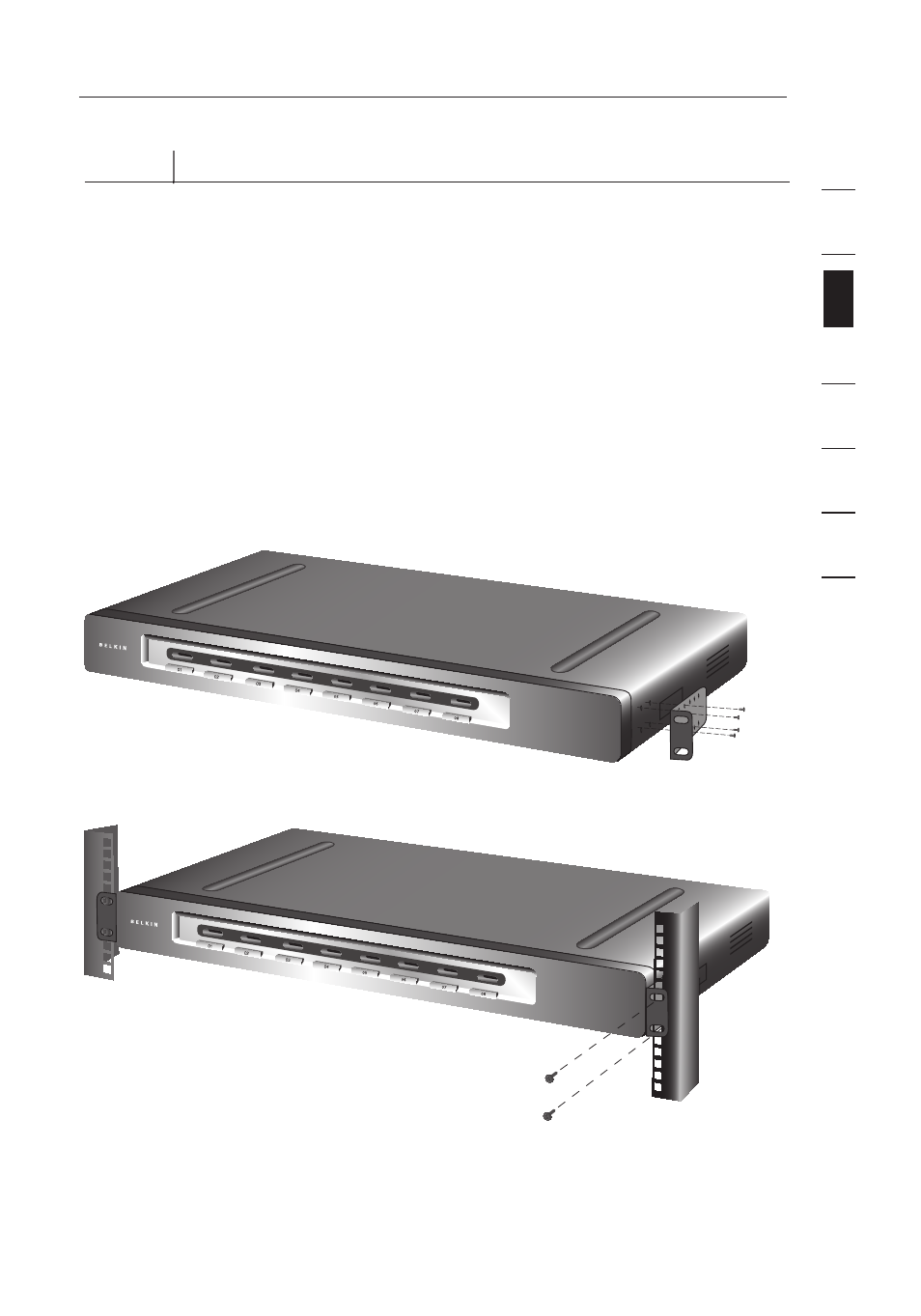

1.2 Attach the bracket to the side of the Switch using the Phillips screws
provided. (Refer to diagram below.)
1.3. Mount the Switch to the rack rails. (Refer to diagram below.)
Your Switch is now mounted securely to the rack and you are ready to
connect your console.
