Overview

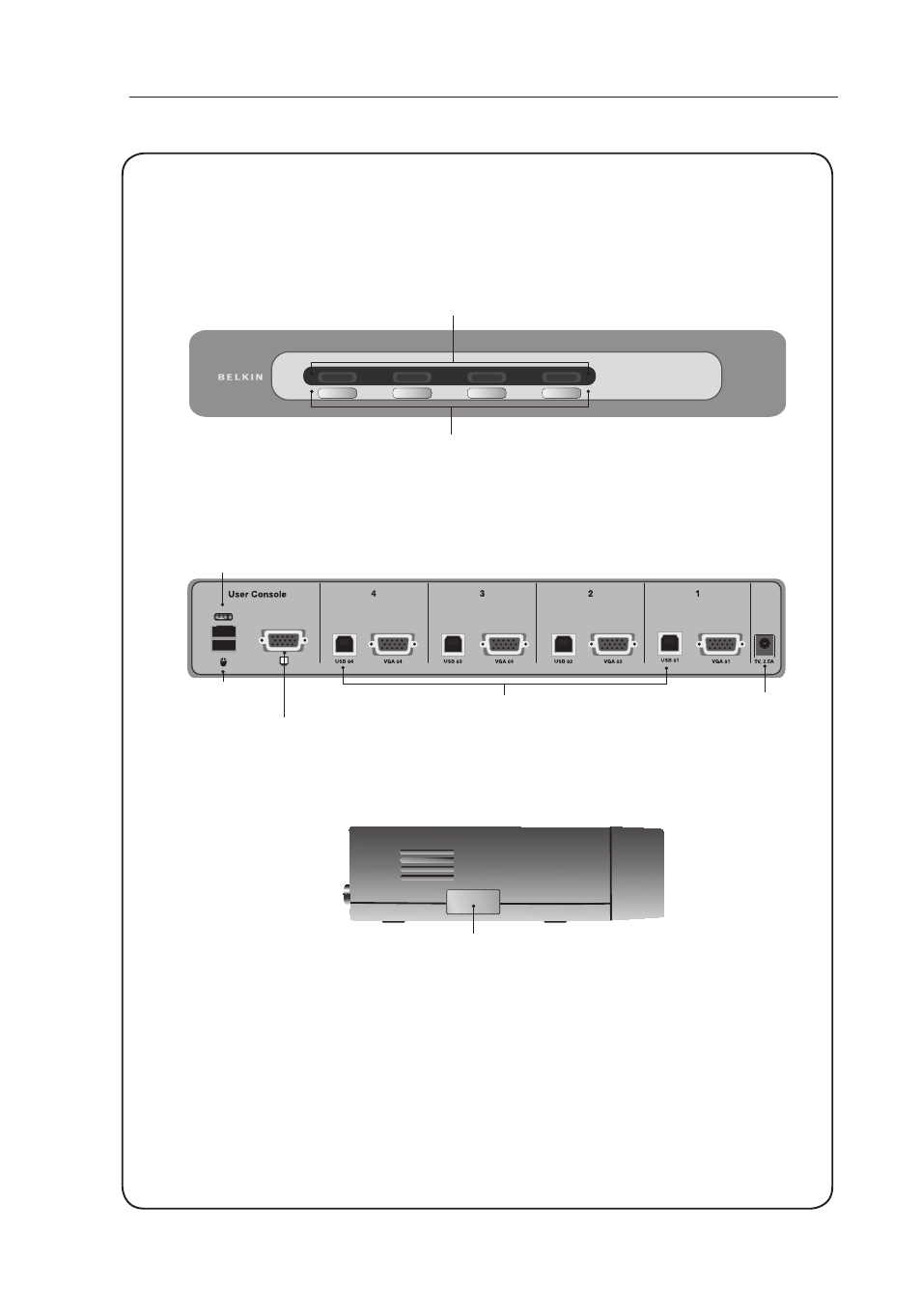

Unit Display Diagrams
Front View
(F1DN104U model shown)
Back View
Tamper-Evident Tape
Side View
IMPORTANT NOTICE: There should be one tamper-evident tape on
each side of the Switch enclosure (total of two tapes). If both tapes
are visible and do not appear to be disrupted, your Switch has not
been opened or compromised since time of production. If for any
reason one of the tapes is missing or appears disrupted, please call
Belkin Technical Support at (800) 282-2355.
Console USB
Keyboard Port
LED Indicators
Port Selectors
Computer VGA &
USB Ports
DC Power Jack
Console VGA
Monitor Port
Console USB
Mouse Port
