Part names and functions
03
11
En
English
Français
Español

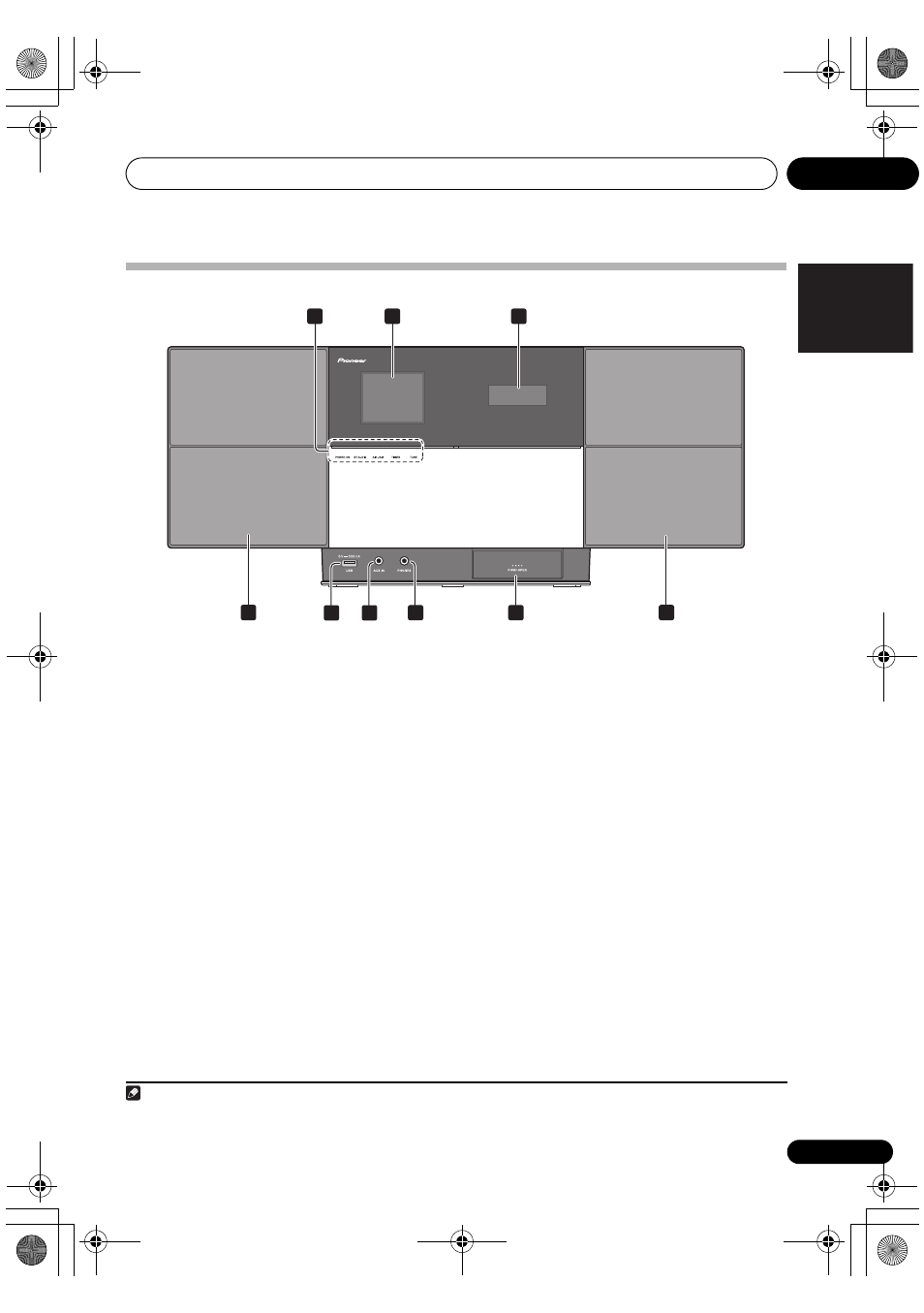

Front panel
1
POWER ON
When the power is on, this indicator lights.
BT AUDIO
1
When BT Audio is selected as the input source, this
indicator lights.
AIR JAM
1
When Air Jam is selected as the input source, this
indicator lights.
TIMER
When the wake-up timer is set to On, this indicator
lights.
TUNE
When the tuner receives FM broadcasts, the TUNE
indicator lights.
2
Main Display
3
Sub Display
4
Speaker units
5
USB port
6
AUX IN
Use to connect auxiliary components.
7
PHONES
Use to connect headphones.
8
iPod/iPhone connector port
4
4
3
5
6
7
78
2
1
Note
1 Optionally available. To use BT Audio and Air Jam function, you need to connect the commercially available
Bluetooth
®
adapter:
AS-BT200 to the unit. See page 17 for details.
