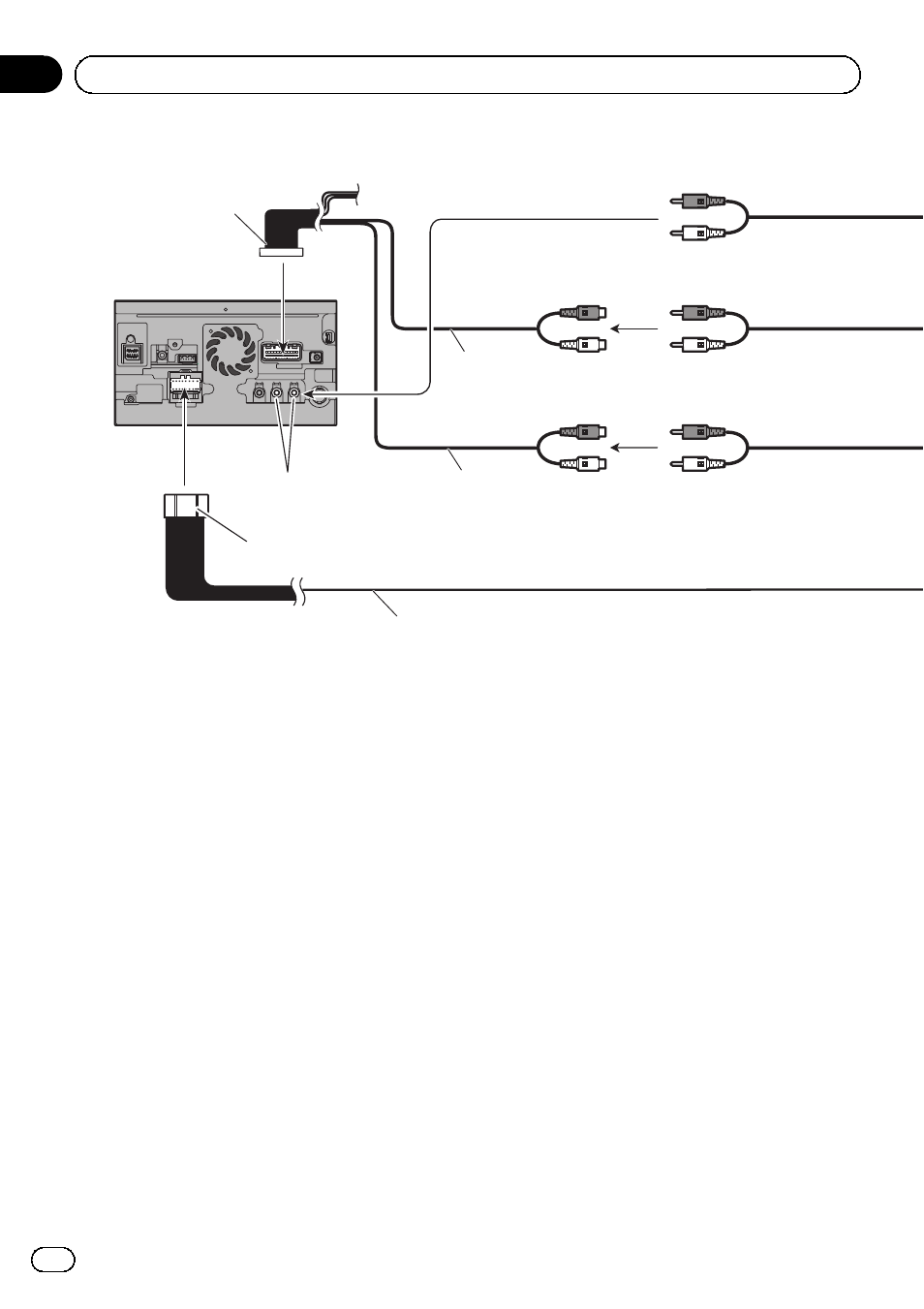

Conexión al amplificador de potencia que se vende por separado
La unidad de navegación
Conector RCA
Salidas para subwoofer
(SWL, SWR)
Cable de alimentación
Al terminal de control del sistema del amplificador de potencia
(máx. 300 mA 12 V CC).
Azul/blanco
Salidas traseras
(REAR OUTPUT)
Salidas frontales
(FRONT OUTPUT)
15 cm
15 cm
Es
98
Sección
02
Conexión del sistema
