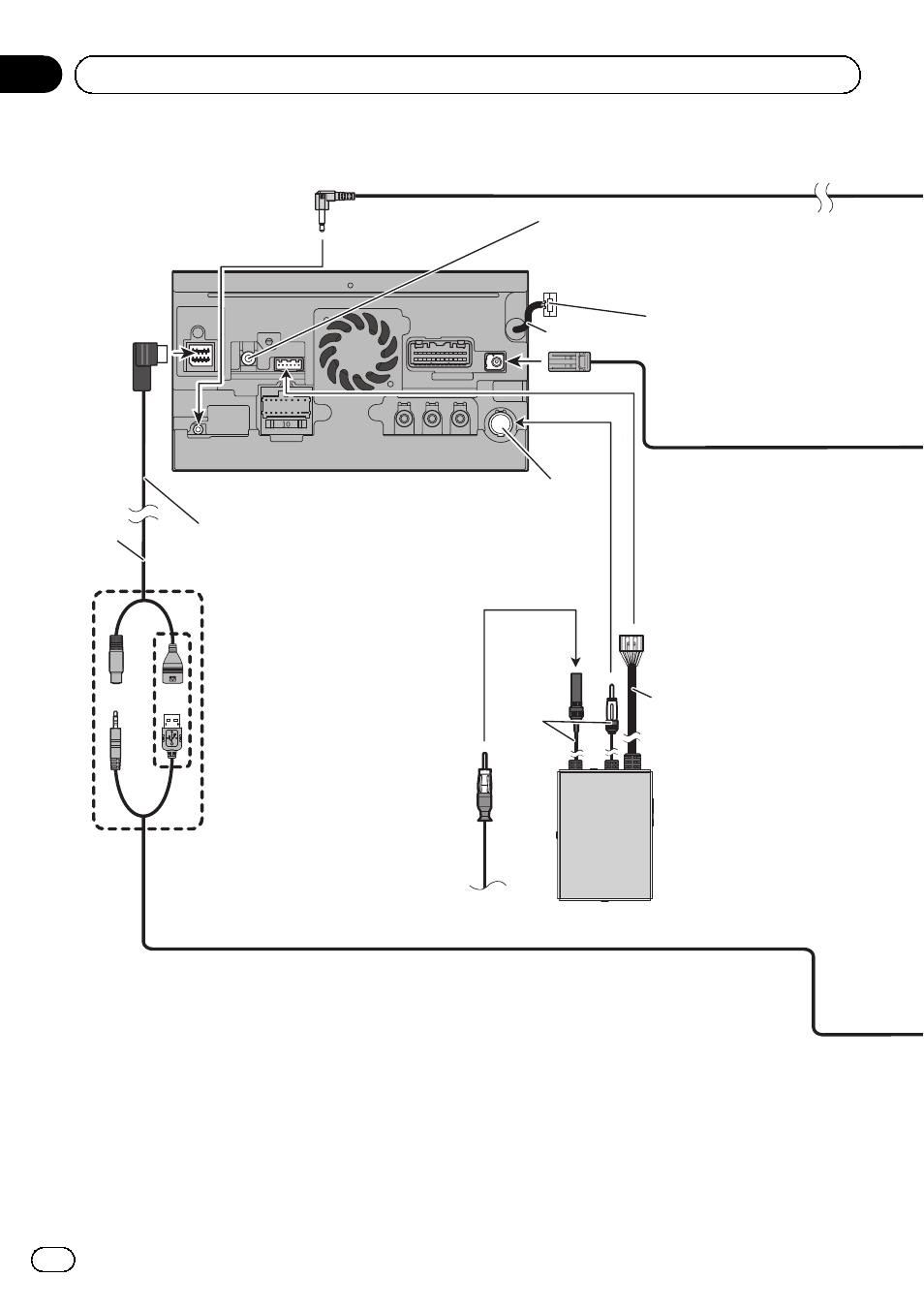

Connecting the system
13 cm
USB and mini-jack
connector
(*2)
— When connecting your iPod, both connections are necessary.
— You must set “
AV1 Input” in “AV System Settings” to “iPod” when
connecting the iPod. (For details, refer to Operation Manual.)
(*2)
Aerial
jack
RDS-TMC tuner Vehicle
aerial
2 m
30 cm
The navigation unit
1 m
(*1)
Connect either the
USB interface cable
for iPod or an
appropriate USB
storage device.
(*1)
Wired remote input
Please refer to the instruction
manual for the Hard-wired remote
control adapter (sold separately).
Vehicle Bus adapter input
Please refer to the instruction
manual for the Vehicle Bus
adapter (sold separately).
