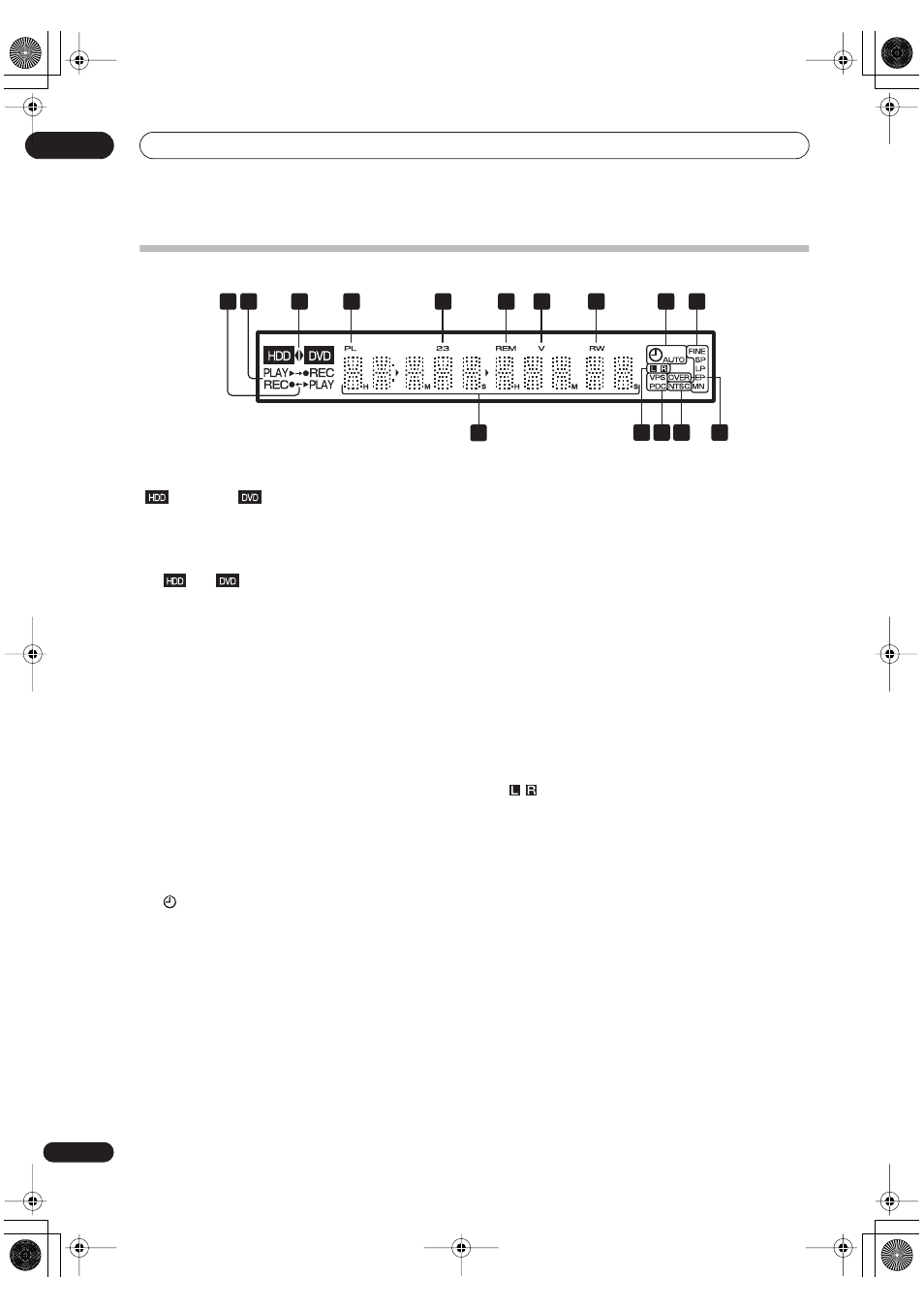

Display
1 /
Arrows indicate the copy direction between the HDD
( ) and DVD ( ).
2 PLAY / ì REC indicators
Lights during playback / recording; blinks when playback
/ recording is paused.
3 (page 28)
The ‘ ’ and ‘ ’ indicators light to indicate that the HDD
or DVD is selected for recording/playback.
4 PL (page 74)
Lights when a VR mode disc is loaded and the recorder is
in Play List mode.
5 2 3 (page 96)
Shows the remote control mode (if nothing is displayed,
the remote control mode is 1).
6 REM
Lights when the character display is showing the
remaining available recording time.
7 V
Lights when an unfinalized Video mode disc is loaded.
8 R / RW
Indicates the type of recordable DVD loaded: DVD-R or
DVD-RW.
9 (page 51)
Lights when a timer recording has been set.
(Indicator blinks if the timer has been set to DVD but
there isn’t a recordable disc loaded, or the timer has
been set to HDD but the HDD is not recordable.)
AUTO (page 57)
Lights when Auto Start Recording has been set, and
during Auto Start Recording.
10 Recording quality indicators (page 47)
FINE
Lights when the recording mode is set to FINE (best
quality).
SP
Lights when the recording mode is set to SP
(standard play).
LP
Lights when the recording mode is set to LP (long
play).
EP
Lights when the recording mode is set to EP
(extended play).
MN
Lights when the recording mode is set to MN
(manual recording level) mode.
11 Character display
12 (page 101)
Indicates which channels of a bilingual broadcast
are recorded.
13 VPS / PDC (page 51)
Lights when receiving a VPS/PDC broadcast during a
VPS/PDC-enabled timer recording.
14 NTSC
Lights when playing NTSC format video.
15 OVER (page 101)
Lights when the analog audio input level is too high.
