Chapter 3
Controls and displays

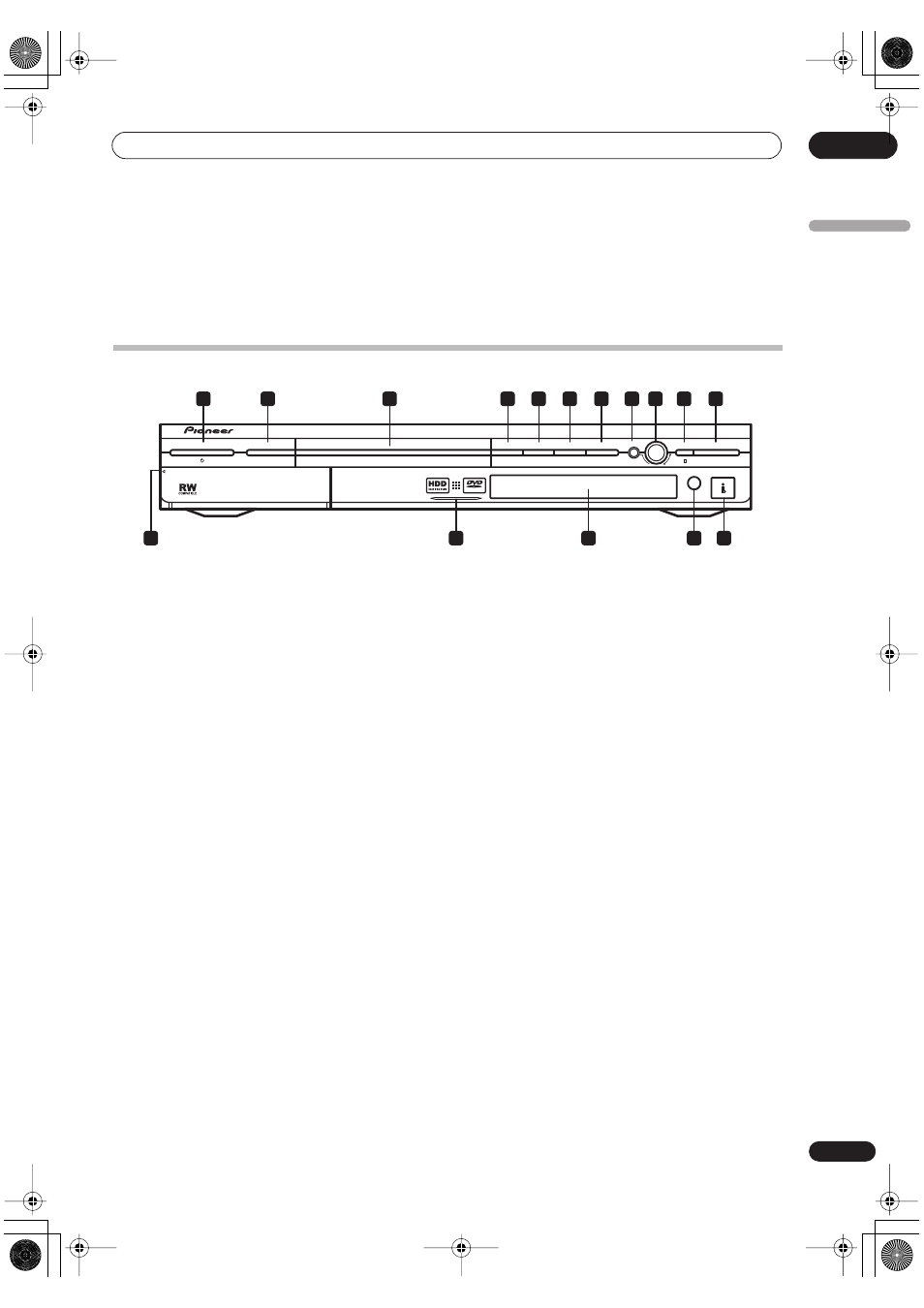

Front panel
1
STANDBY/ON
Press to switch the recorder on/into standby.
2
HDD/DVD
Press to switch between hard disk drive (HDD) and DVD
for recording and playback.
3
DVD disc tray
4
OPEN/CLOSE
Press to open/close the disc tray.
5
STOP
Press to stop playback.
6
PAUSE
Press to pause/restart playback or recording.
7
PLAY
Press to start or restart playback.
8
FUNCTION
Press repeatedly to set the function of the
SMART JOG
dial. The function is shown in the display.
9
SMART JOG dial
10
STOP REC
Press to stop recording.
11
ì
REC
Press to start recording.
12 Front panel inputs
(page 12)
Pull the cover down where indicated to access the front
panel input jacks. Especially convenient for connecting
camcorders and other portable equipment.
13 HDD indicator
Lights when the HDD is selected for playback/recording.
14 Front panel display
See
Display
on page 22 for details.
15 IR remote sensor
(page 8)
16 DV IN/OUT jack
(page 12)
Digital input/output jack for use with a DV camcorder.
