Page 5

Before you start

! Interactive Manual – Automatically displays

the pages explaining the functions that have
been operated on the receiver. It is also
possible to operate the receiver from the
Interactive Manual.

! Glossary – Displays glossary pages.
! MCACC Appli – Displays Advanced

MCACC measurement results vividly on the
computer.

There are special operating instructions

for MCACC Application. These instructions
are included in the AVNavigator
Interactive Manual’s menus. Refer to them
when using MCACC Application.

! Software Update – Allows various types of

software to be updated.

! Settings – Used to make various

AVNavigator settings.

! Detection – Used to detect the receiver.

Note

To use the AVNavigator of another model, first
uninstall (delete) this receiver’s AVNavigator,
then install the AVNavigator of the other model.

Deleting the AVNavigator

You can use the following method to uninstall
(delete) the AVNavigator from your PC.

% Delete from the Control Panel of the
PC.

From the Start menu, click “Program”
d “PIONEER CORPORATION” d
“AVNavigator(VSX-1021 or VSX-921)”

“Uninstall”.

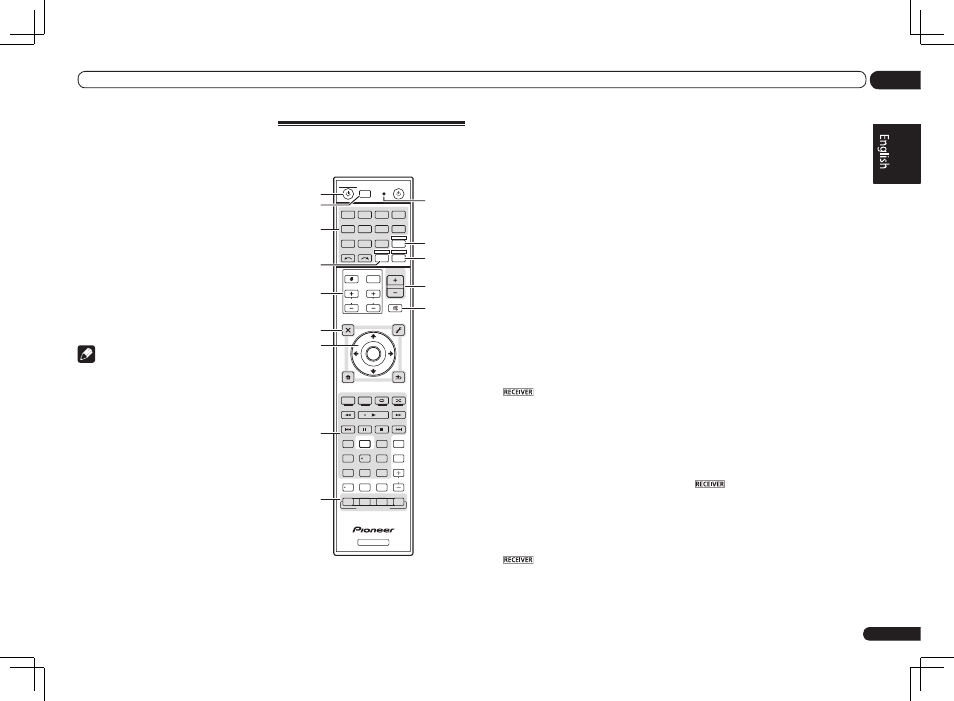

Remote control

This section explains how to operate the remote
control for the receiver.

RECEIVER

D.ACCESS

CH LEVEL A.ATT

LISTENING MODE

DIMMER

SIGNAL SEL MCACC SLEEP

TV / DTV

MPX

PQLS

PHASE CTRL

STATUS

PGM

iPod CTRL

HOME

MENU

TUNE

TUNE TOOLS

LIST

TV CONTROL

INPUT

INPUT SELECT

iPod

USB

SAT

TUNER

VIDEO

TV CTRL

ZONE 2

ADPT

RCU SETUP

SOURCE

RECEIVER MULTI

OPERATION

BDR

DVD

DVR

HMG

HDMI

RECEIVER

MUTE

MASTER

VOLUME

VOL

PRESET

TOP MENU

BAND

GUIDE

T.EDIT

VIDEO

PARAMETER

AUDIO

PARAMETER

ENTER

PRESET

RETURN

PTY

SEARCH

MENU

AUTO / ALC /

DIRECT

STEREO STANDARD ADV SURR

AUDIO

INFO

CLASS

ENTER

DISP

HDD

DVD

/ CLR

S.RETRIEVER

2,3

7
8

The remote has been conveniently color-coded
according to component control using the follow-
ing system:
! White – Receiver control, TV control

! Blue – Other controls (See the Operating

Instructions in CD-ROM for detail.)

1 u RECEIVER

This switches between standby and on for this
receiver.

2 MULTI OPERATION

Use this button to perform multi operations.

3 RCU SETUP

Use to input the preset code when making
remote control settings and to set the remote
control mode.

4 Input function buttons

Press to select control of other components.
Use INPUT SELECT

c/ d to select the input

function (page 19).

5 ZONE 2

Switch to perform operations in ZONE 2.

6 TV CONTROL buttons

These buttons are dedicated to control the TV
assigned to the TV CTRL button.

7 Receiver setting buttons

Press

first to access:

! AUDIO PARAMETER – Use to access the

Audio options.

! VIDEO PARAMETER – Use to access the

Video options.

! HOME MENU – Use to access the Home

Menu.

! RETURN – Press to confirm and exit the

current menu screen.

i/j/k/l/ENTER

Use the arrow buttons when setting up your
surround sound system and the Audio or Video
options.

9 Receiver Control buttons

Press

first to access:

! PHASE CTRL – Press to switch on/off Phase

Control.

! STATUS – Press to check selected receiver

settings.

! PQLS – Press to select the PQLS setting.

! S.RETRIEVER – Press to restore CD quality

sound to compressed audio sources.

! SIGNAL SEL – Use to select an input signal.
! MCACC – Press to switch between MCACC

presets.

! SLEEP – Use to put the receiver in sleep

mode and select the amount of time before
sleep.

! CH LEVEL – Press repeatedly to select a

channel, then use

k/l to adjust the level.

! A.ATT – Attenuates (lowers) the level of an

analog input signal to prevent distortion.

! DIMMER – Dims or brightens the display.

10 LISTENING MODE controls

! AUTO/ALC/DIRECT – Switches between

Auto Surround, Auto Level Control mode and
Stream Direct mode.

! STEREO – Press to select stereo playback

mode.

! STANDARD – Press for Standard decoding

and to switch various modes (2 Pro Logic,
Neo:6, etc.) (page 19).

! ADV SURR – Use to switch between the

various surround modes (page 19).

11 Remote control LED

Lights when a command is sent from the
remote control.

12 TV CTRL

Set the preset code of your TV’s manufacturer
when controlling the TV.

Switches the remote to control the receiver
(used to select the white commands).
Switch to perform operations in the main zone.
Also use this button to set up surround sound.

14 MASTER VOLUME +/–

Use to set the listening volume.

15 MUTE

Mutes the sound or restores the sound if it has
been muted (adjusting the volume also restores
the sound).
