En 21
04 Basic playback
Playback with HOME MEDIA
GALLERY inputs

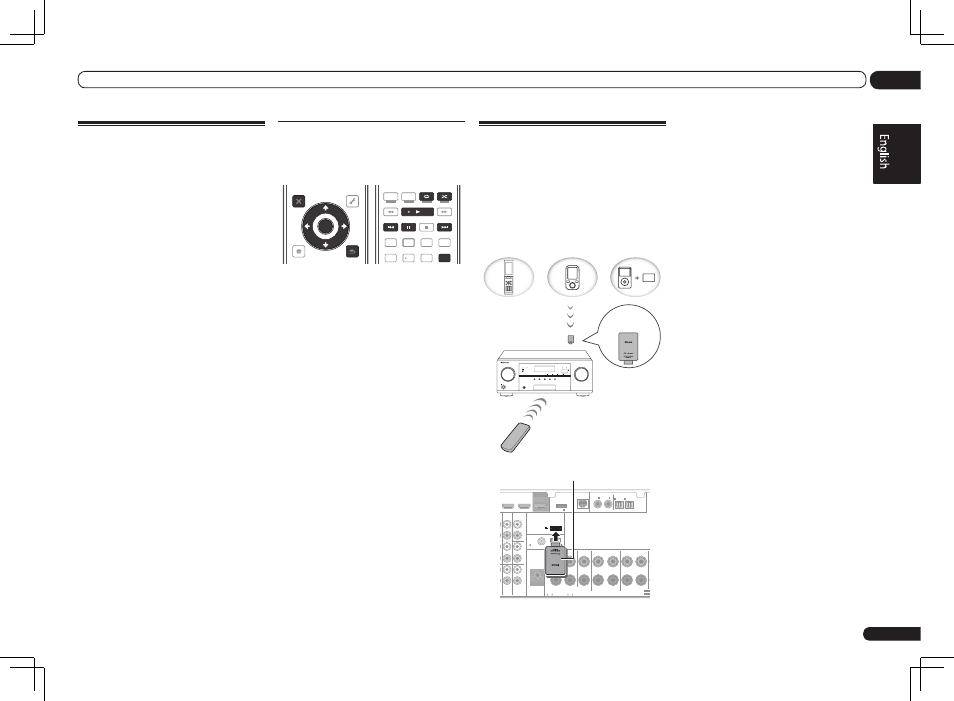

This receiver’s Home Media Gallery function
allows you to listen to audio files or listen to
Internet radio stations on a computer or other
component connected to the receiver’s LAN
terminal.
! Photo or video files cannot be played back.
! With Windows Media Player 11 or Windows
Media Player 12, you can even play back
copyrighted audio files on this receiver.
1 Connect the LAN terminal on this
receiver to the LAN terminal on your
router.
See Connecting to the network through LAN
interface on page 15 .
2 Press HMG to select Home Media
Gallery as the input function.
3 Use
i/j to select the category you
want to play back, and then press ENTER.
! Internet Radio – Internet radio
! Server Name – Server components on the
network
! Favorites – Favorite songs currently being
registered
! Recently played – Internet Radio listening
history (most recent 20 incidents)
4 Use i/j to select the folder, music
files or Internet radio station to play back,
and then press ENTER.
5 Repeat step 4 to play back the desired
song.
Playing back audio files stored on
components on the network
! Press HMG to switch the remote control to the
HOME MEDIA GALLERY operation mode.
iPod CTRL
HOME
MENU TUNE
TUNE TOOLS LIST
PRESET
TOP MENU
BAND GUIDE
T.EDIT
VIDEO
PARAMETER
AUDIO
PARAMETER
ENTER PRESET
RETURN
PTY
SEARCH
SIGNAL SEL MCACC SLEEP
TV / DTV MPX PQLS
PHASE CTRL STATUS
PGM MENU
AUDIO
INFO
DISP
HDD DVD
5 4 6
1 3 22
S.RETRIEVER
2
Bluetooth ADAPTER for
Wireless Enjoyment of Music
This receiver
Remote control
operation
Music data Bluetooth ®
ADAPTER
Bluetooth
wireless
technology
enabled device:
cell phone Bluetooth wireless
technology
enabled device:
Digital music
player
Device not
equipped with
Bluetooth wireless
technology:
Digital music
player
+
Bluetooth audio
transmitter
(sold commercially)
MASTER VOLUME
STANDBY/ON
INPUT SELECTOR
PUSH OPEN
iPod iPhone iPad DIRECT CONTROL SOUND RETRIEVER AIR ADVANCED SURROUND STANDARD SURROUND AUTO SURR/ALC/ STREAM DIRECT
PHONES
SPEAKERS CONTROL – MULTI-ZONE – ON/OFF BAND TUNER EDIT TUNE PRESET ENTER
iPod iPhone iPad HDMI ADVANCED MCACC FL OFF
R CD-R/TAPE ZONE 2
IN
CD
L
R
L
R
IN
L
R
OUT
DVD IN DVR/BDR IN
FM UNBAL 75
FRONT CENTER SURROUND SURROUND BACK / ZONE 2 R L R L R L(Single)
AM LOOP
( CD) ( DVD)
T VIDEO DVD
( DVR/BDR) ( TV/SAT)
COAXIAL (10/100) LAN
O
PRE OUT SPEAKERS
ANTENNA
OPTICAL
ASSIGNABLE
ASSIGNABLE
OUT
SUBWOOFER
IN 1 IN 2 IN 1 IN 2
SELECT
SELECT CAUTION: SPEAKER IMPEDANCE 6 -16 .
ATTENTION: ENCEINTE D’IMPEDANCE DE 6 -16 .
F A
DC OUTPUT
for WIRELESS LAN
(OUTPUT 5 V
0.1 A MAX)
ADAPTER PORT
(OUTPUT 5 V 0.6 A MAX)
Bluetooth® ADAPTER
Refer to the Operating Instructions in CD-ROM
for instructions on how to connect and setup
the Bluetooth ADAPTER and how to play music.
The Bluetooth
® word mark and logos are reg-
istered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by PIONEER
CORPORATION is under license. Other trade-
marks and trade names are those of their
respective owners.
© 2011 PIONEER CORPORATION. All rights
reserved.
