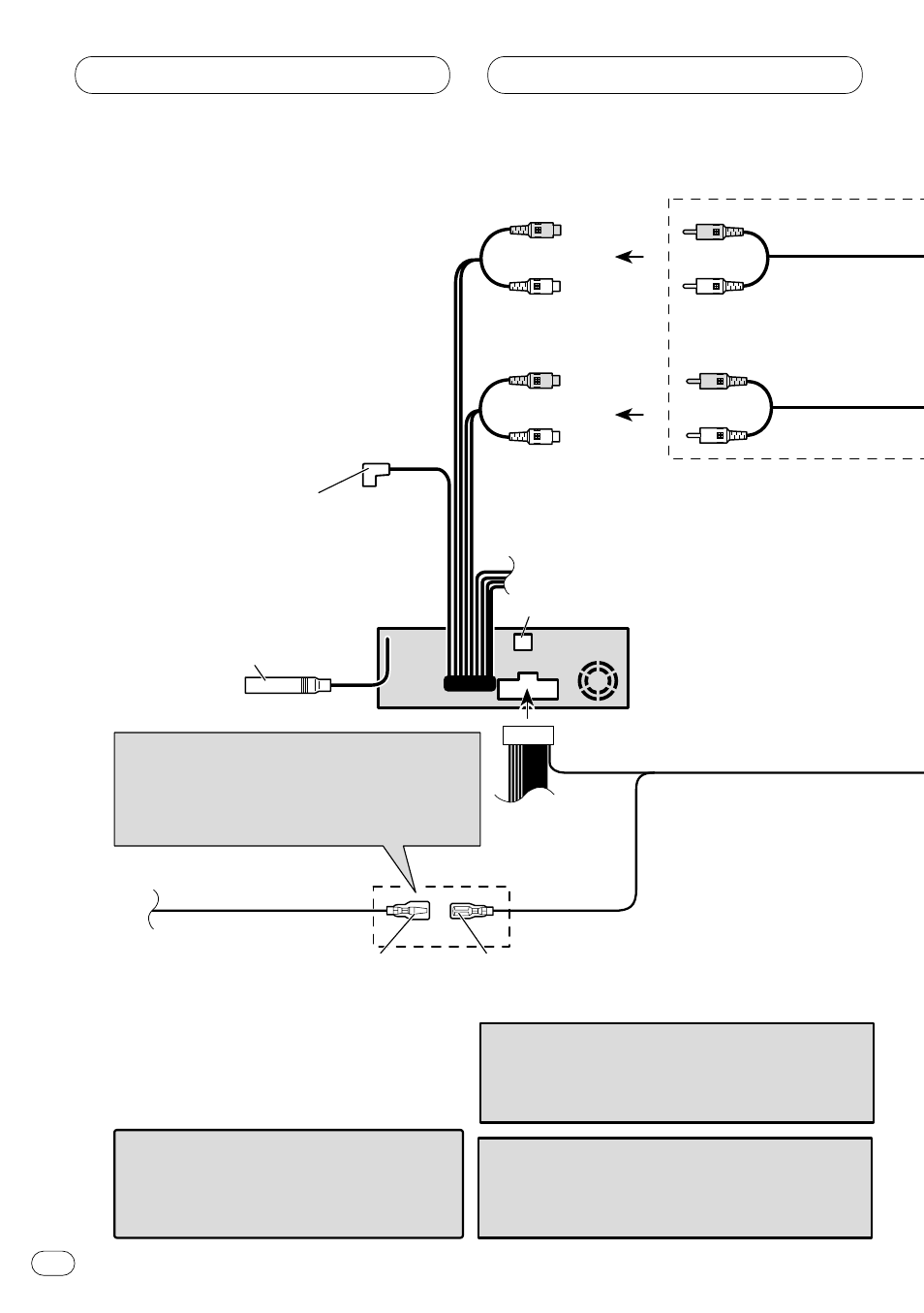

Connecting the Units
En 6
Blue/white (7*)
To Auto-antenna relay control terminal
(max. 300 mA 12 V DC). Blue/white (6*)
System remote control
Subwoofer output
or Non Fading Output
(SUBWOOFER OUTPUT or
NON-FADING OUTPUT)
Front output
(FRONT OUTPUT)
This Product
23 cm
Optical input
23 cm
The pin position of the ISO connector will differ
depending on the type of vehicle. Connect 6*
and 7* when Pin 5 is an antenna control type.
In another type of vehicle, never connect 6*
and 7*.
Antenna jack
Refer to Power cable
connection on page 4.
IP-BUS input (Blue)
Refer to Power cable
connection on page 4.
15 cm
15 cm
Note
Change the Initial Setting of this Product
(refer to the Operation Manual).
The subwoofer output of this unit is monaural.
Note
When you connect DEQ-P7000 to this unit,
separately sold power amp must be connected
to DEQ-P7000.
When you connect separately sold
Multi-channnel processor (DEQ-P7000)
to this unit, do not connect anything to the
speaker leads and system remote control
(blue/white).
Connecting to separately sold power amp
