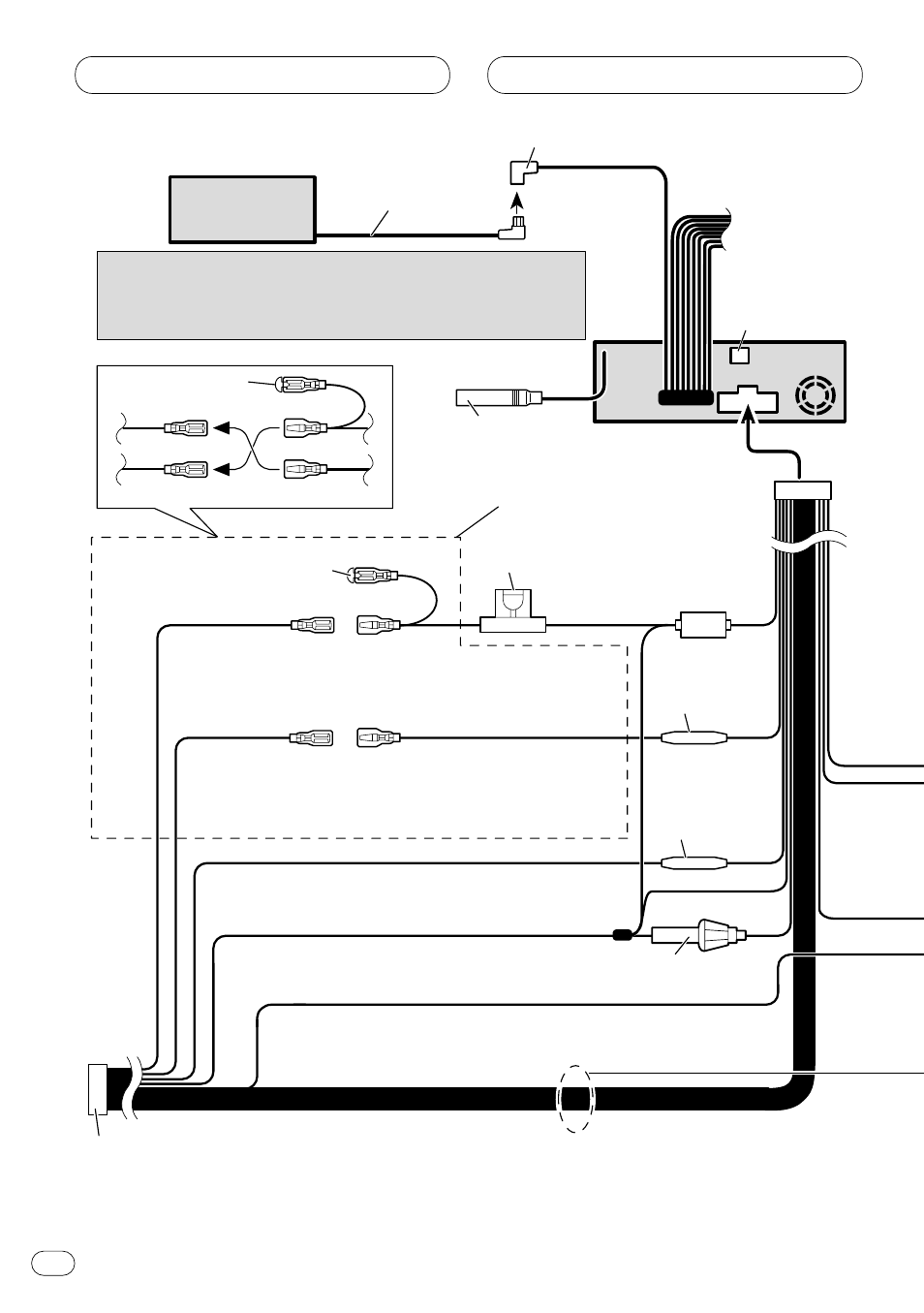

Power cable connection
Connecting the Units
En 4
Connect leads of the
same color to each other.
C a p ( 1 * )
When not using this terminal,
do not remove the cap.
ISO connector
Fuse holder
1*
2*
4*
3*
5*
Yellow (2*)
To terminal always supplied
with power regardless of
ignition switch position.
Red (4*)
To electric terminal controlled
by ignition switch (12 V DC)
ON/OFF.
Yellow (3*)
Back-up
(or accessory)
Red (5*)
Accessory
(or back-up)
Black (ground)
To vehicle (metal) body.
Orange/white
To lighting switch terminal.
Note
In some vehicles, the ISO connector may
be divided into two. In this case, be sure
to connect to both connectors.
Fuse resistor
Fuse resistor
Note
Depending on the kind of vehicle, the function of 3* and 5*
may be different. In this case, be sure to connect 2* to 5* and
4* to 3*.
Fuse holder
IP-BUS cable
This Product
Antenna jack
15 cm
Multi-CD player
(sold separately)
15 cm
IP-BUS input (Blue)
Refer to pages 6 - 9.
Optical input
