Installation

English

Español

Deutsch

Français

Italiano

Nederlands

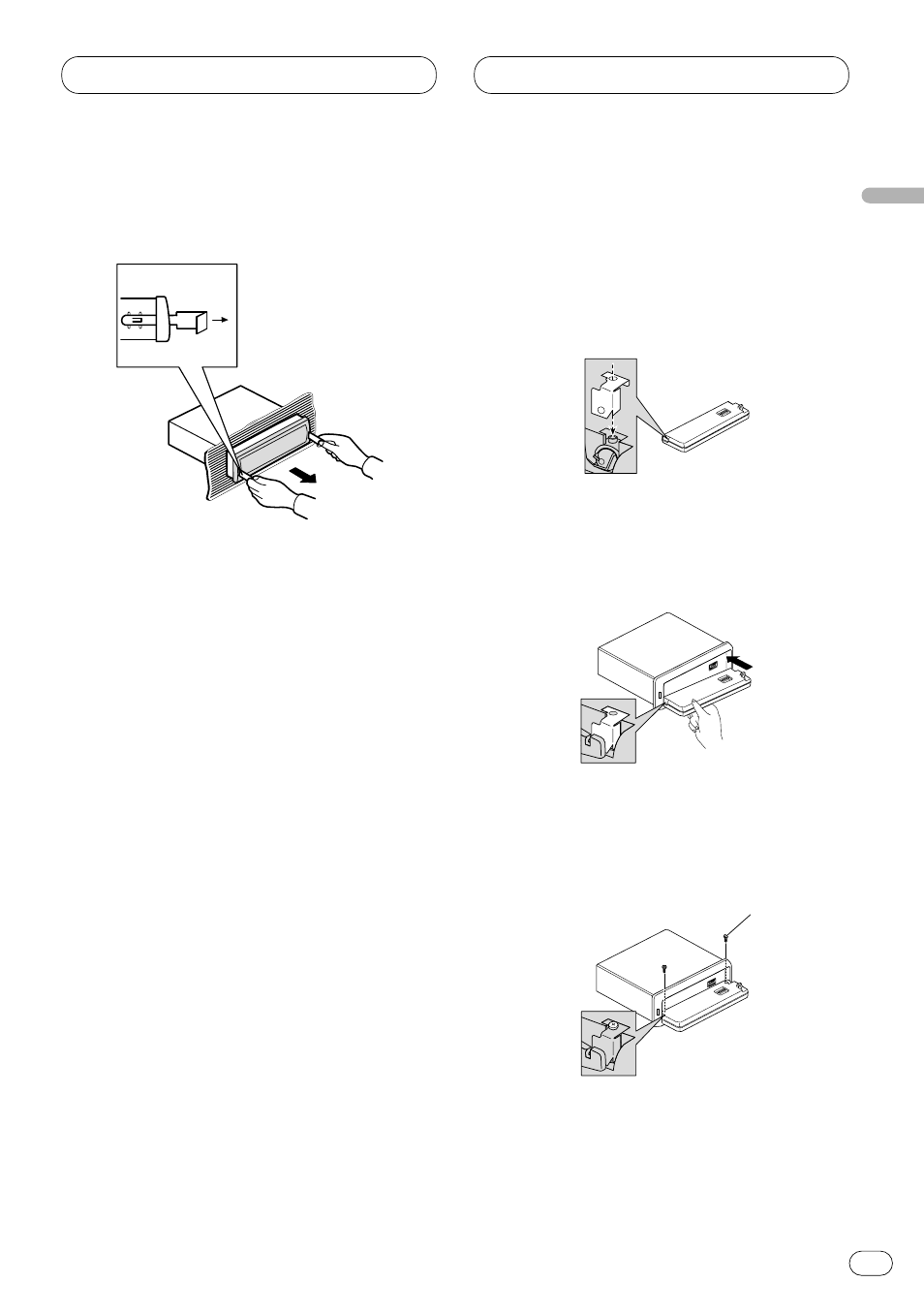

Removing the unit

Fig. 10

Fixing the front panel

If you do not operate the Detaching and
Replacing the Front Panel Function, use the
supplied fixing screws and holder to fix the front
panel to this unit.

1 Attach the holder to the front panel.
(Fig. 11)

Fig. 11

2 Replace the front panel to the unit.
(Fig. 12)

Fig. 12

3 Fix the front panel to the unit using
fixing screws. (Fig. 13)

Fig. 13

Fixing screw

Insert the supplied
extraction keys into the
unit, as shown in the
figure, until they click
into place. Keeping the
keys pressed against
the sides of the unit,
pull the unit out.
