Rear panel – Pioneer STZ-D10Z-R User Manual
Page 12

12
En

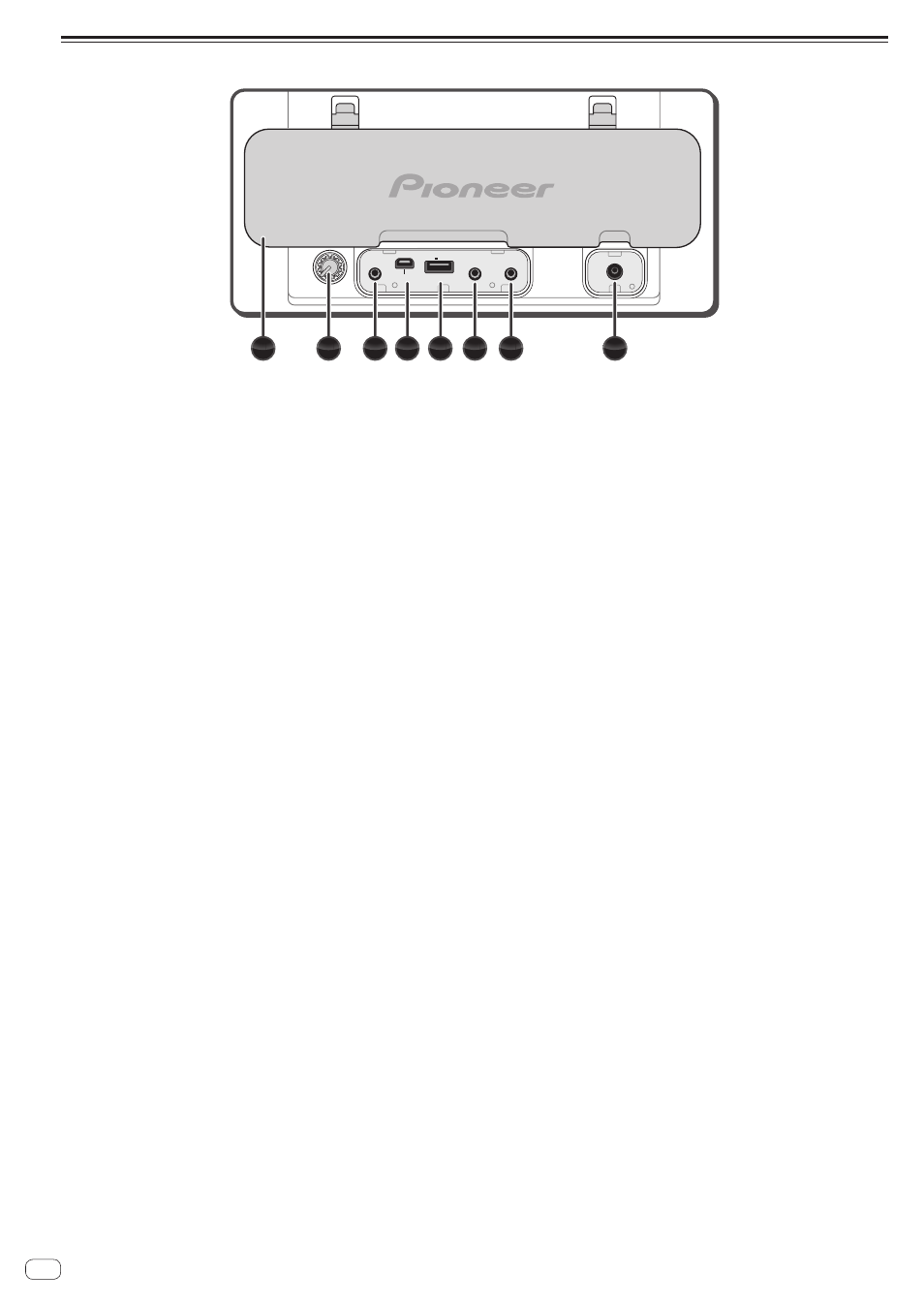

Rear panel
5V 500mA
PHONES
MIC
MIN
VOL
MAX
USB
PC connect
AUX IN
DC IN 18 V
1
1
1
1
1
1
1
2
2
2
2
2
2
2
3
3
3
3
3
3
3
5
5
5
5
5
5
5
6
6
6
6
6
6
6
7
7
7
7
7
7
7
8
8
8
8
8
8
8
4
4
4
4
4
4
4
1 Battery cover
2 Microphone volume knob
Use to adjust the volume of the sound inputted through the microphone.
The sound from the microphone is always outputted when the device’s
power is on, but not outputted when headphones are connected.
3 Microphone jack
Use to connect your microphone.
4 PC connect terminal
Use the supplied USB cable to connect the PC. (page 23)
5 USB terminal
Use to connect your USB mass storage devices or STEEZ PORTABLE an
audio source. (page 14, 16)
6 PHONES jack
Use to connect headphones. When the headphones are connected,
there is no sound output from the speakers.
7 AUX IN terminal
Connect a mobile portable music player device, etc. using a commer-
cially available stereo mini-jack cable. (page 18)
8 DC IN terminal
Plug the supplied AC adapter. (page 8)
