Page 36: Use the arrow keys to adjust
5. Setup
All these lens parameters can be adjusted using the RCU, the local keypad or in the Installation menu of the projector’s OSD.
•
Zoom (only for motorized lenses)
•
Focus (only for motorized lenses)
•
Vertical Shift
The lens can also be adjusted via the dedicated keys on the remote.

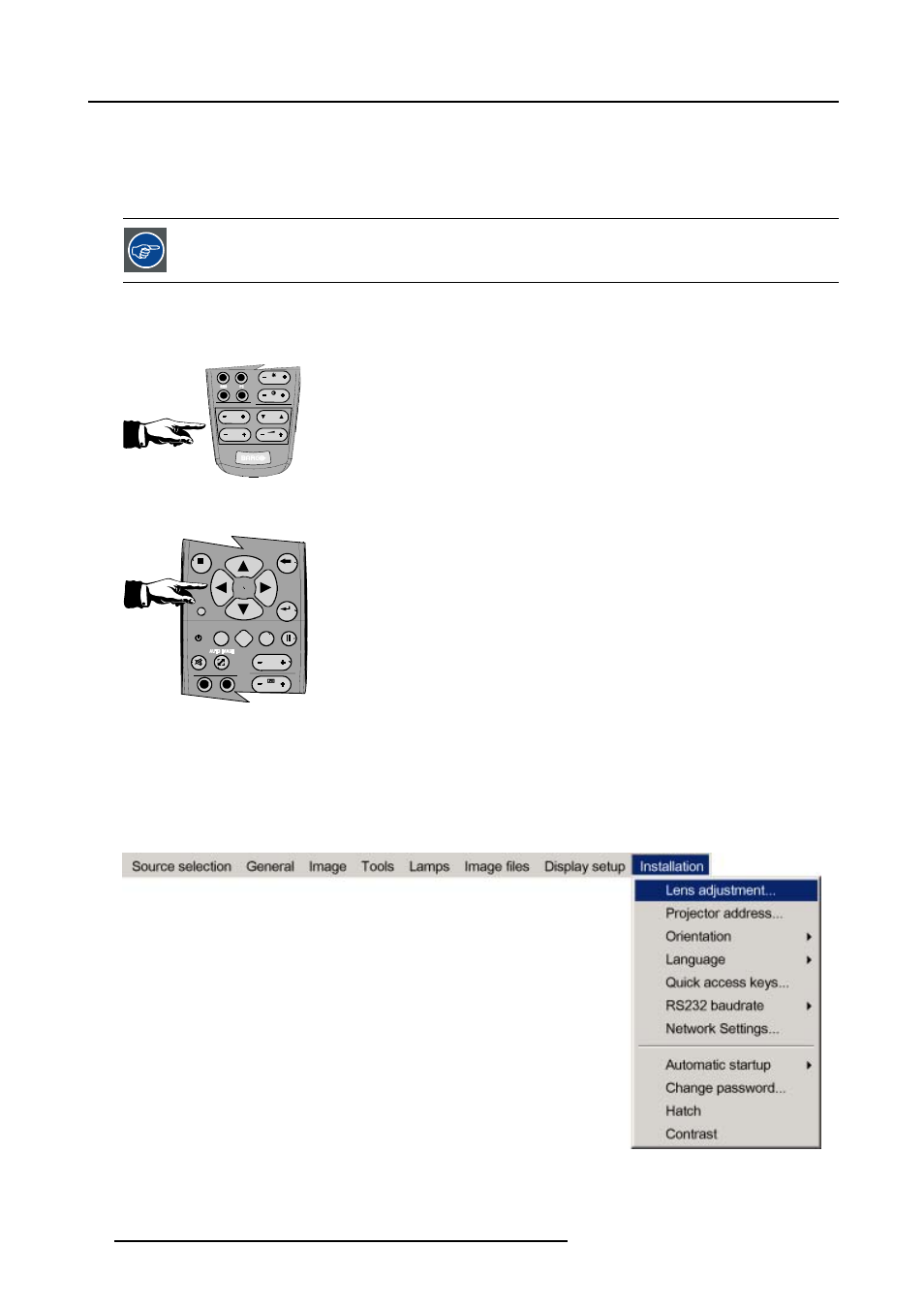

How to Zoom/focus or shift via the RCU (or keypad)
1. Press LENS ZOOM or
LENS FOCUS or LENS SHIFT on the RCU
3
1
4
2
L EN S
Z O O M
L EN S
SH I F T
L EN S
F O C U S
VO L
C O N T R
B R I G H T N
Image 5-8
2. Use the arrow keys to adjust
9
0
EN
T ER
M EN
U
B A C K
D I G I
Z O O M
PH
A SE
PA
U SE
PI P
L O G O
Image 5-9
How to Zoom/focus or shift in the OSD ?
1. Press MENU to activate the Tool bar
2. Press → to select the Installation
3. Press ↓ to Pull down the Installation menu
4. Use ↑ or ↓ to select Lens Adjustments...
Image 5-10
5. Press ENTER
32
R59770079 BARCO ID H250/500 23/07/2007
