4. Connections

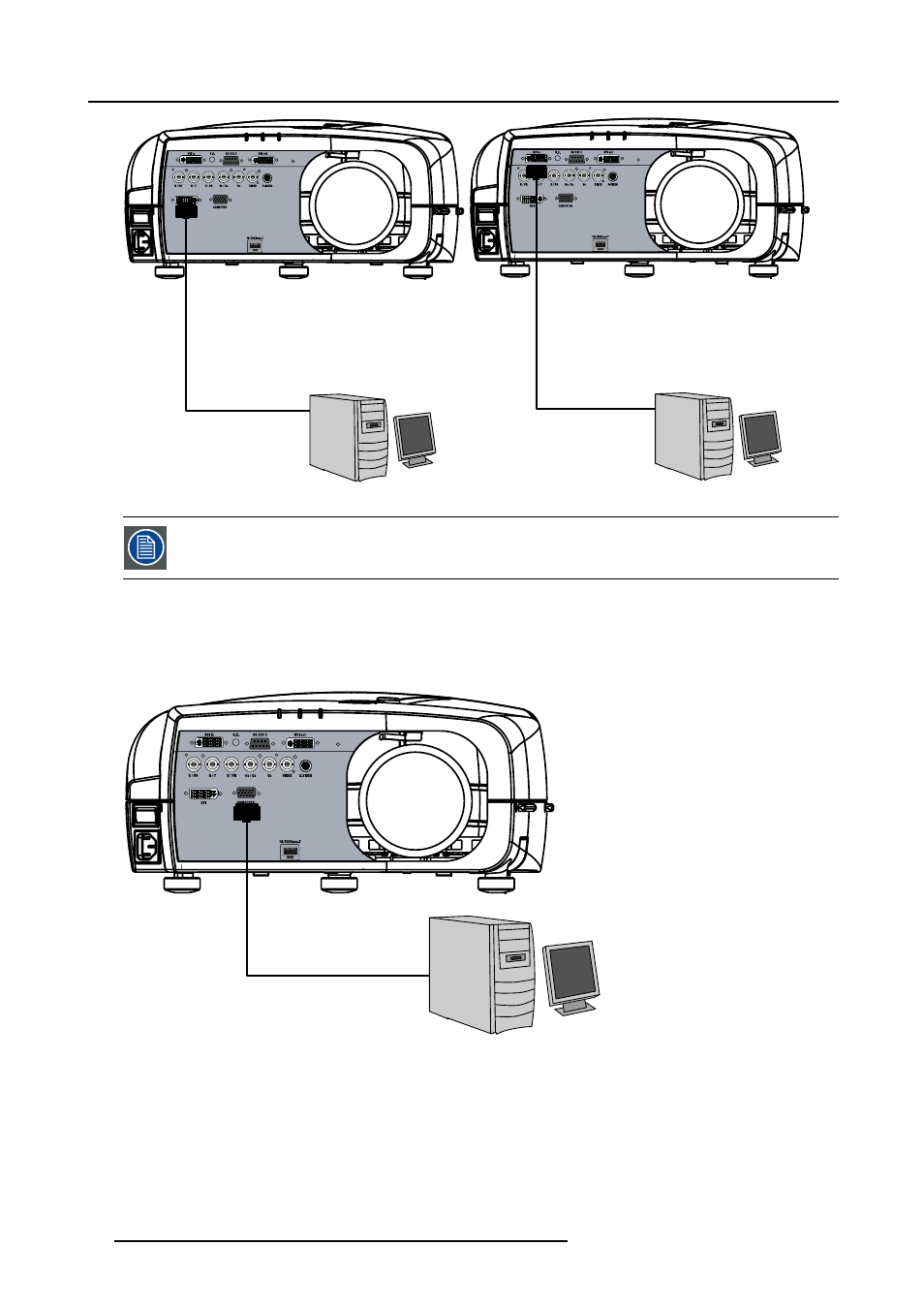

Image 4-9
Note that the 2 DVI outputs are identical and are processed in the same way in the projector
4.2.7 Connecting a computer signal
How to connect a computer signal ?
1. Connect the D15 connector to the projector’s Computer input
Image 4-10
4.2.8 The DVI output
What can be done ?
The DVI output is a copy of the displayed image (without the OSD menu) and can be connected to an external monitor. Some
monitors can fail to synchronize on the DVI signal, in this case disable the Full screen synchronous representation function in the
Display Settings
menu.
20 R59770079 BARCO ID H250/500 23/07/2007
