4. Connections

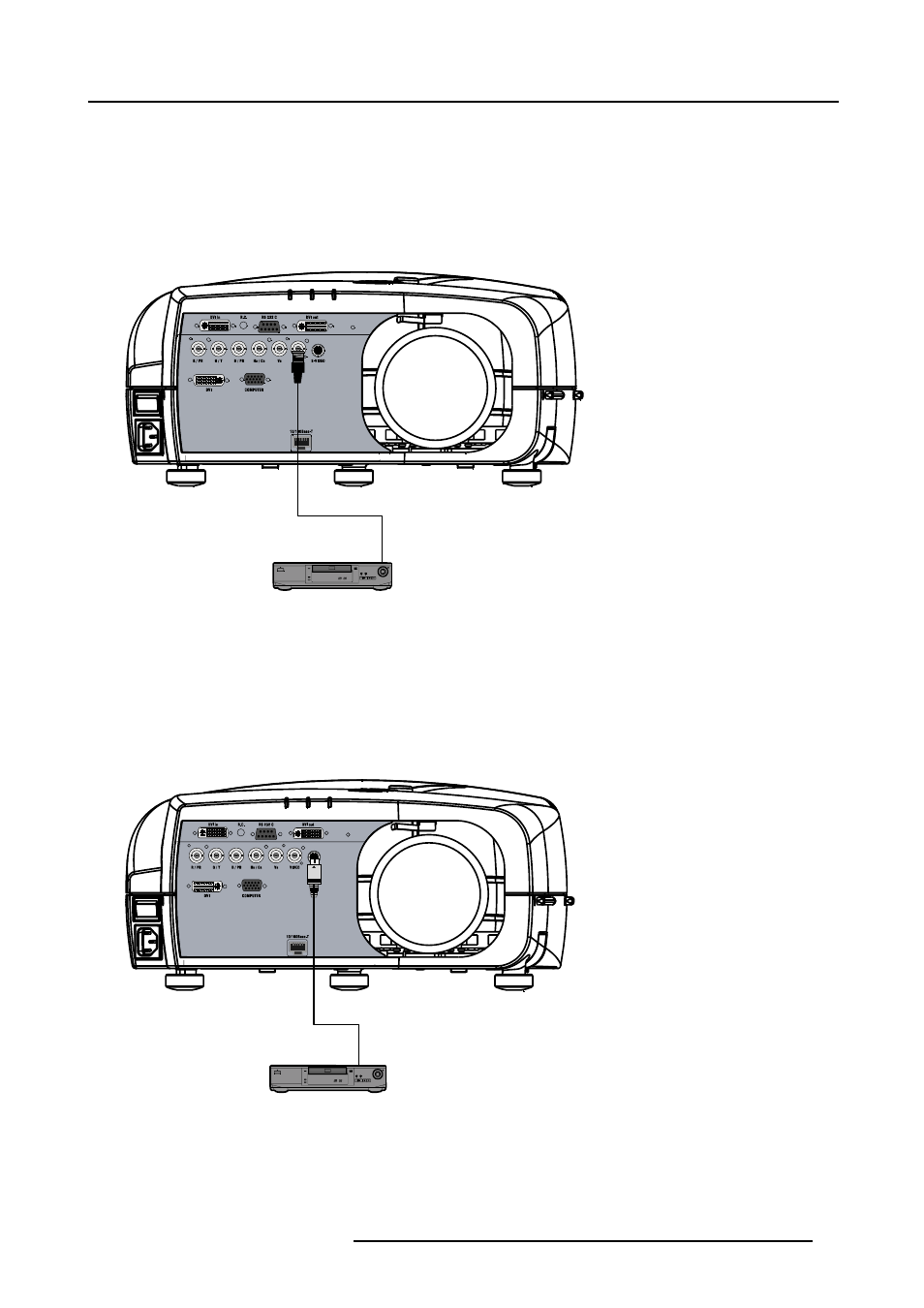

4.2.2 Connecting a Composite video signal
Composite video connection
A Composite video signal is often available on a yellow cinch connector of a Camera, VCR or DVD player, in this case you will need
an adapter cable cinch/BNC to connect to Video input of the RGB board.
How to connect a composite video signal ?
1. Connect the BNC connector to the projector’s BNC video input
DVD Player
Image 4-5
4.2.3 Connecting an S-Video signal
S-Video connection
An S-Video signal is available on the Mini-Din connector of a camera, VCR or DVD player.
How to connect an S-Video connection ?
1. Connect the mini din connector to the projector’s S-Video input
DVD Player
Image 4-6
4.2.4 Connecting an RGB signal
RGB data connection
The RGB input consists of 5 BNC
