4. Connections
4. CONNECTIONS
Overview
• Power connection
• Signal connections
• Communication connections
4.1 Power connection
Power connection
1. Use the supplied power cord to connect the projector to the power outlet.
2. Plug the female power connector into the male connector at the front of the projector.

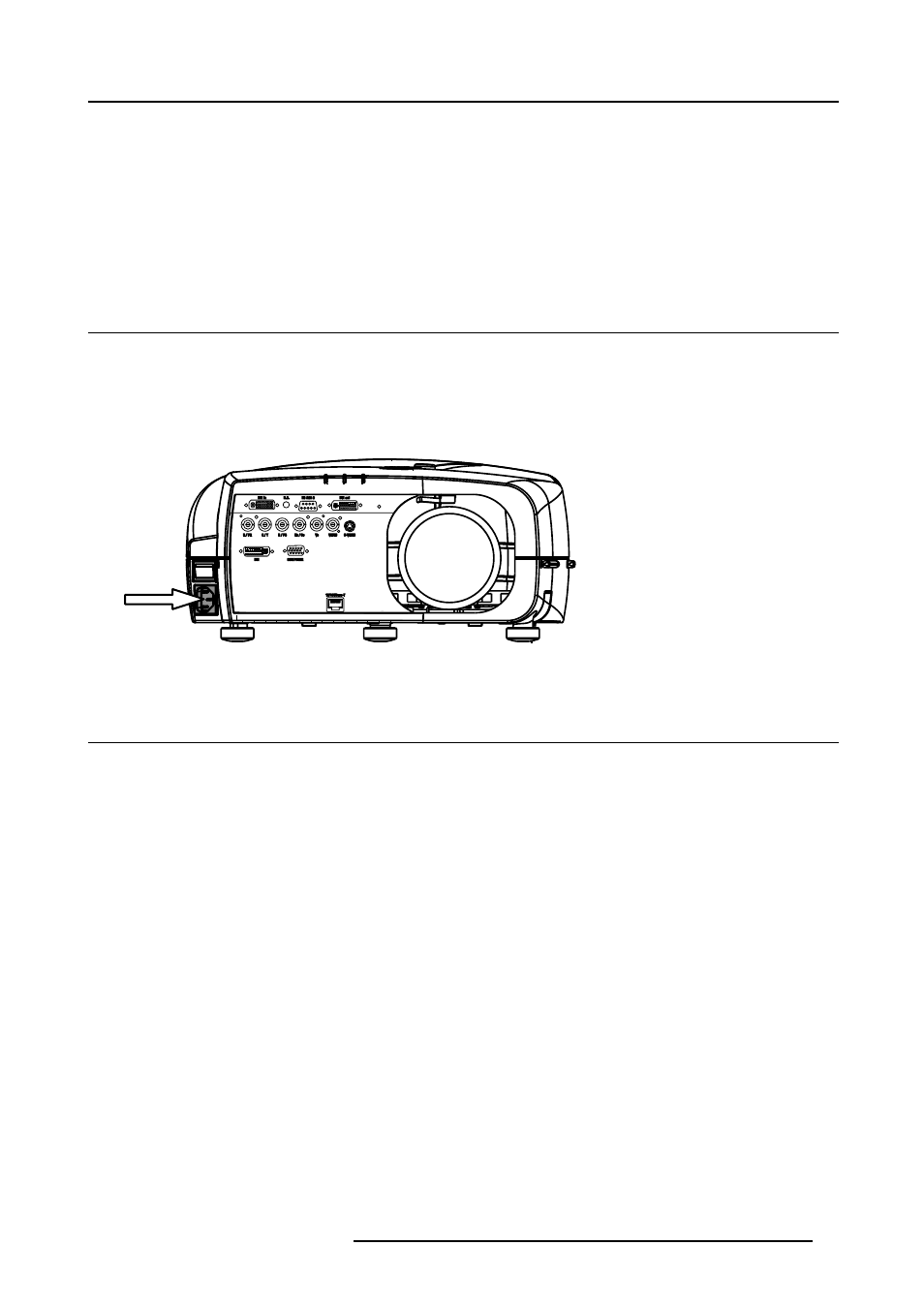

Image 4-1
Power connections
4.2 Signal connections
Overview
• The input section
• Connecting a Composite video signal
• Connecting an S-Video signal
• Connecting an RGB signal
• Connecting a Component Video signal
• Connecting a DVI signal
• Connecting a computer signal
• The DVI output
4.2.1 The input section
Input layers
The input section is located at the front of the projector and is composed of 3 layers which can be equipped with different input
modules depending on the ordered options .
The standard layers :
• Layer 1: DVI Input/Output module:
• Layer 2: RGBHV & Video analog input module
• Layer 3: DVI & Computer (D15) input module
• Layer 4 : Ethernet card
The different available options :
R59770079 BARCO ID H250/500 23/07/2007 15
